STOL Sport Aviation STOL CH 750 instrument panel

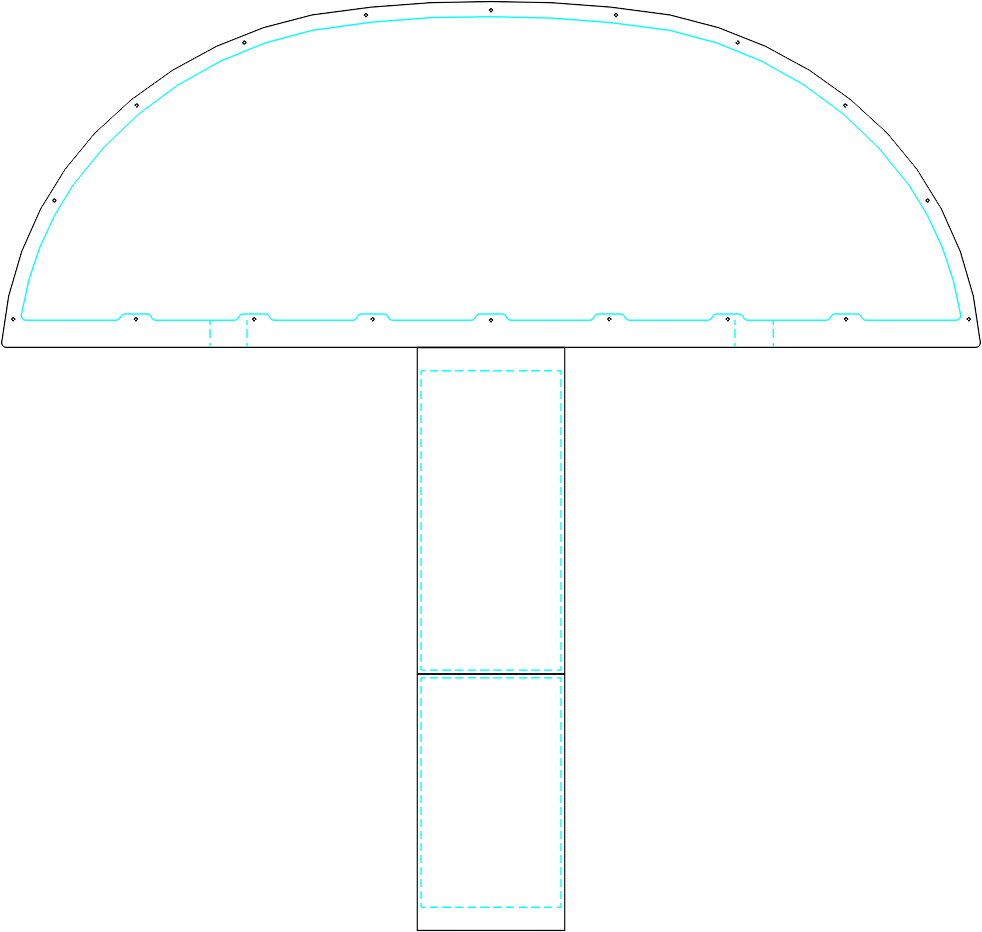

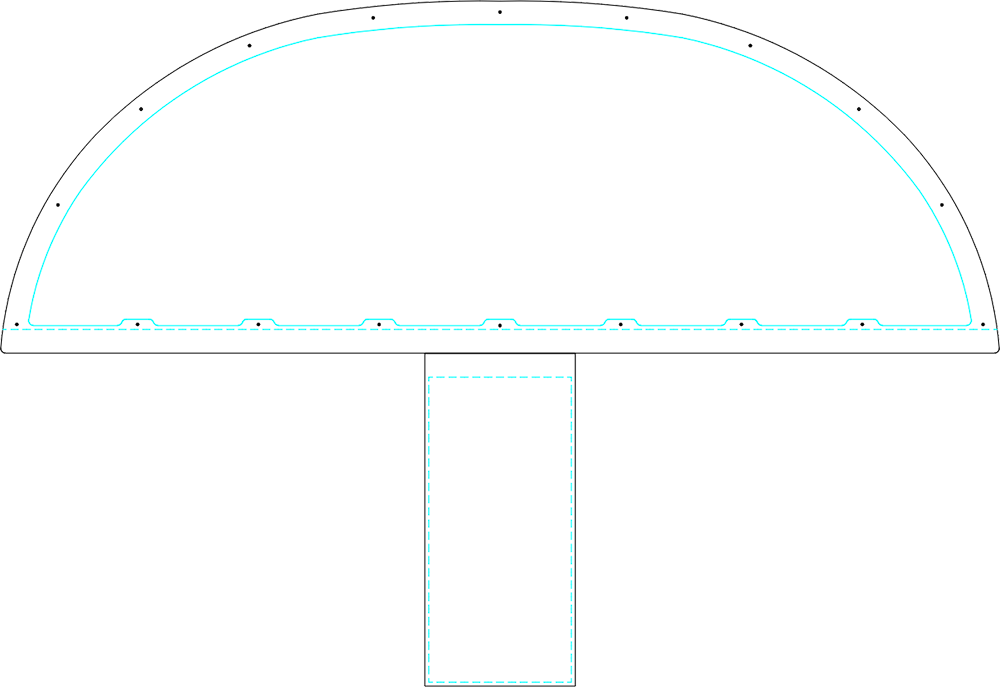

The STOL CH 750 panel template at the panel's dimensions, 31.52 × 21.66 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
44 panels laid out on this template
2 templates for the STOL CH 750
31.52 × 21.66 in
31.52 × 21.66 in

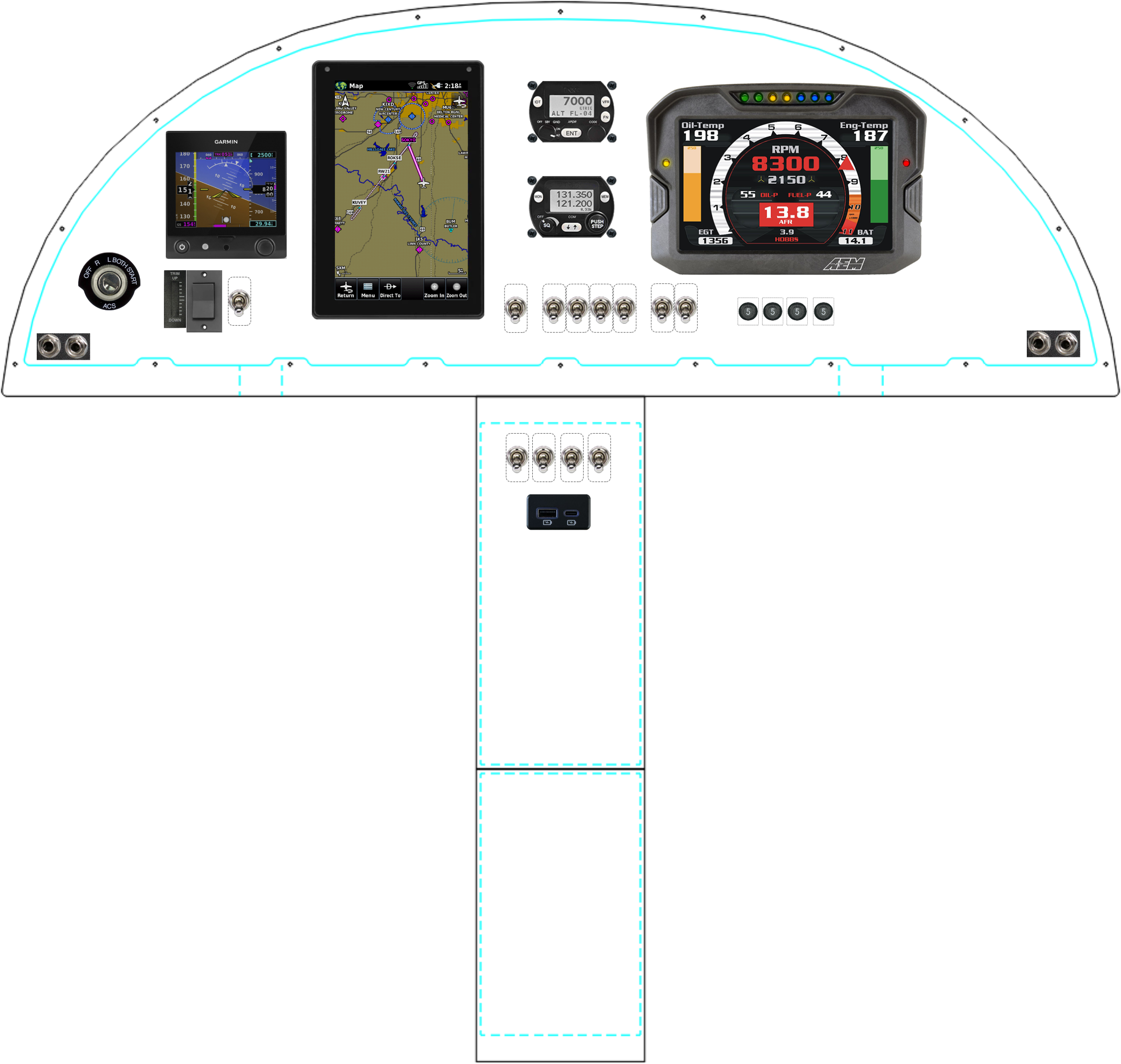

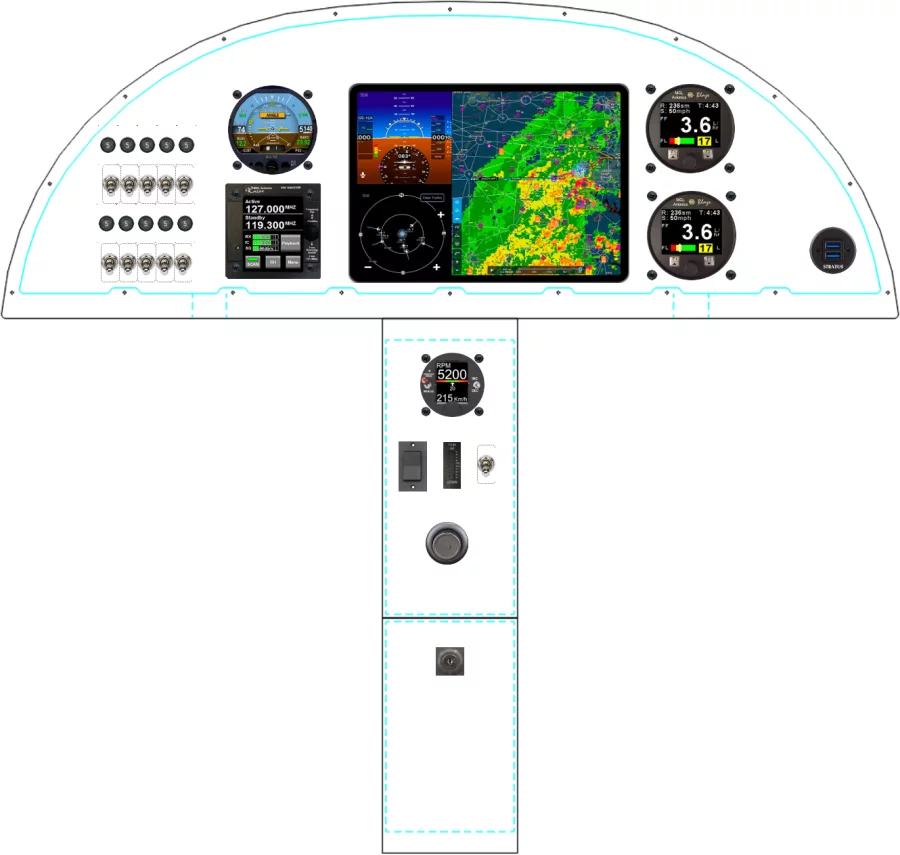

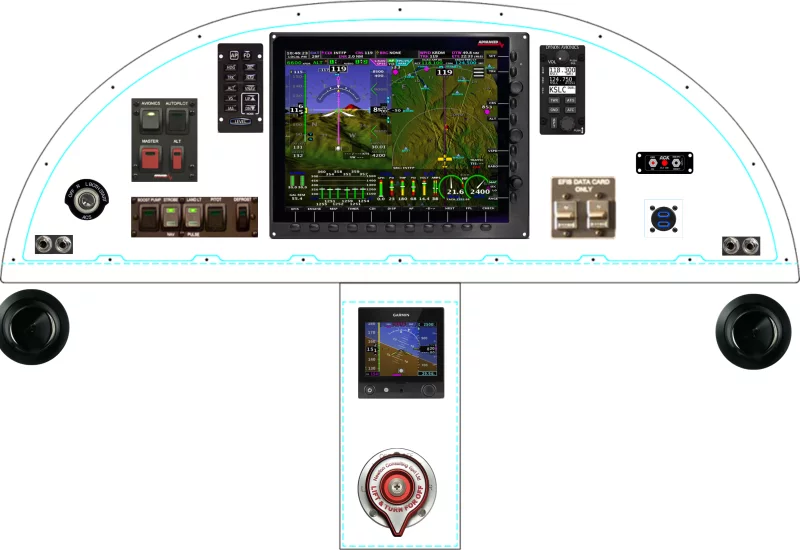

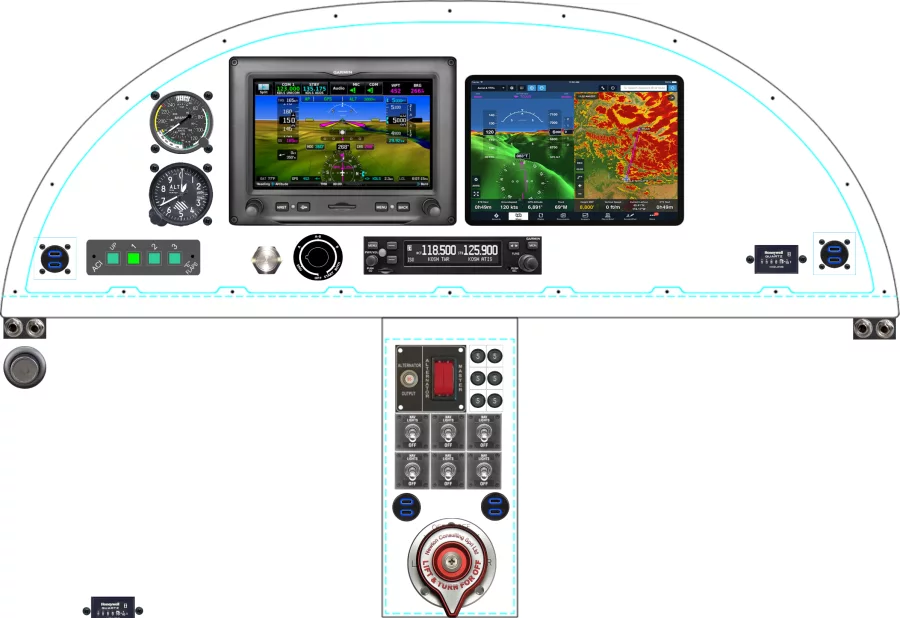

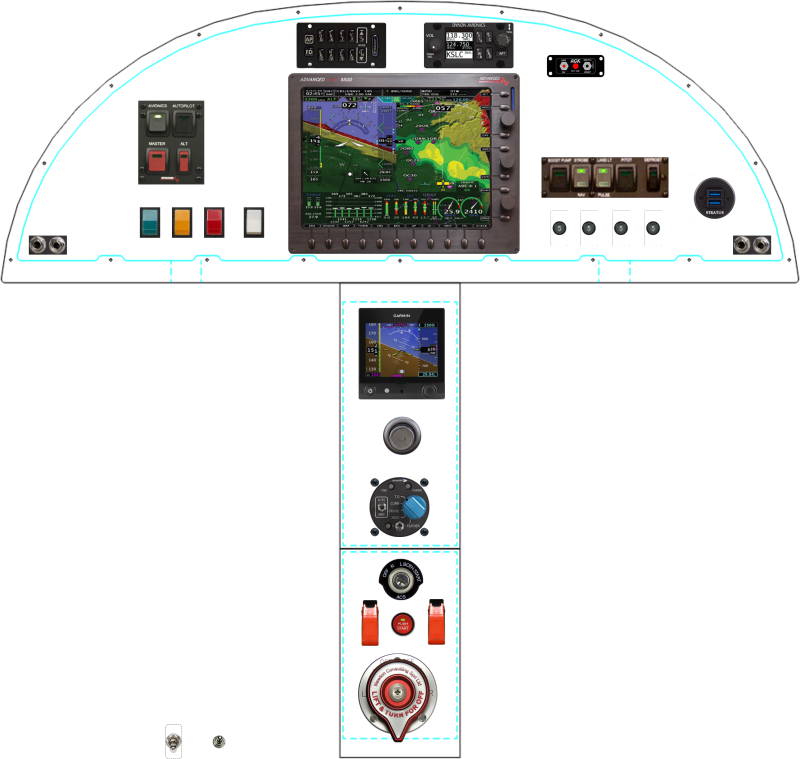

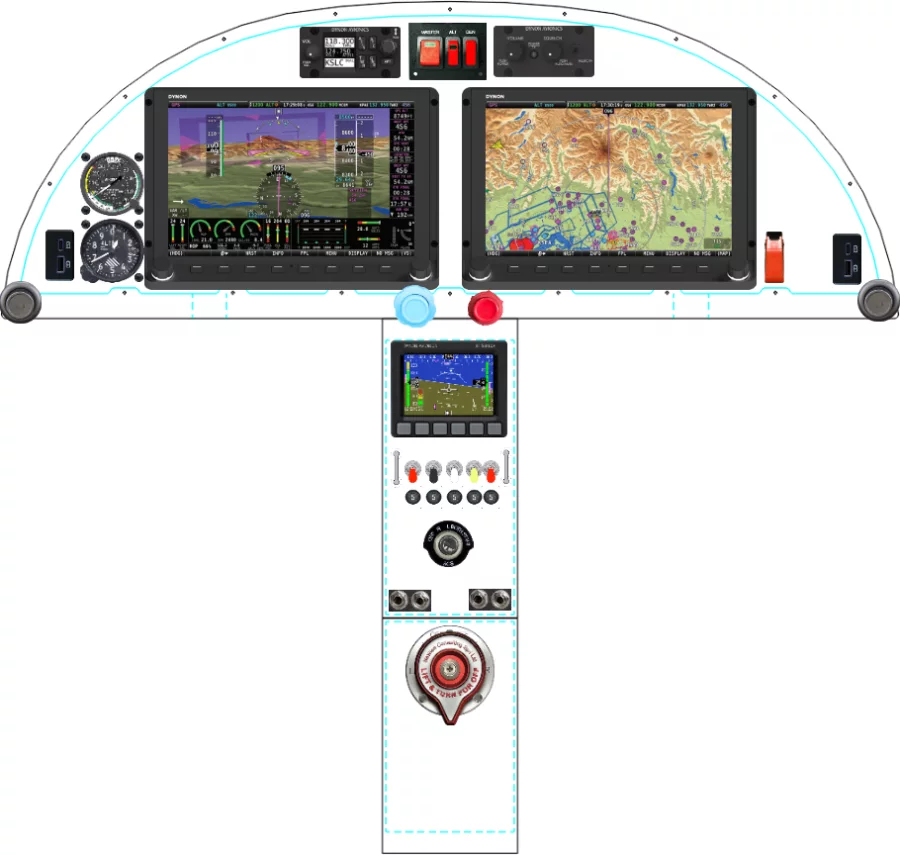

Recent STOL CH 750 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a STOL CH 750 panel
The equipment placed most often across the 44 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Newton Consulting SPRL Limited SPRL V1-3P Fuel Valve | 15 | 34% |
| ACK Technologies ELT | 14 | 32% |
| The Ray Allen Company RS2 | 12 | 27% |
| Sensa Technologies 7277 | 11 | 25% |
| Dynon Avionics VHF COM | 10 | 23% |
| Garmin International, Inc GSB 15 | 9 | 20% |
| Dynon Avionics Stereo Intercom | 9 | 20% |
| Dynon Avionics Autopilot Panel | 8 | 18% |
Other STOL Sport Aviation panels
From layout to fabricated panel
Lay out the STOL CH 750 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
