RANS Aircraft S-20/21 instrument panel

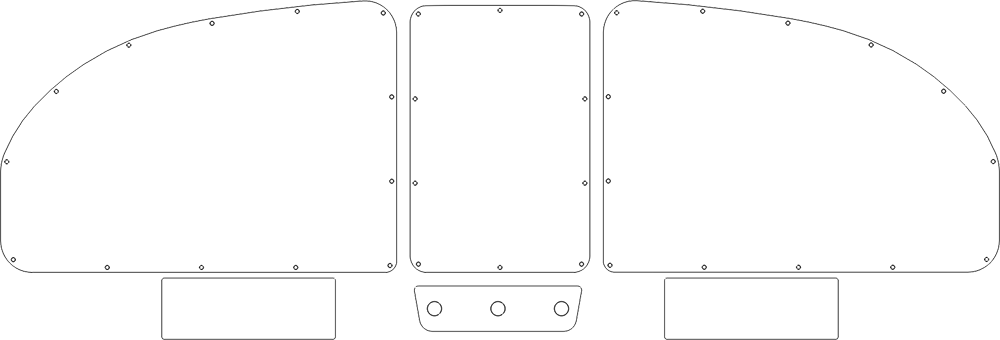

The S-20/21 panel template at the panel's dimensions, 37.36 × 12.66 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
20 panels laid out on this template

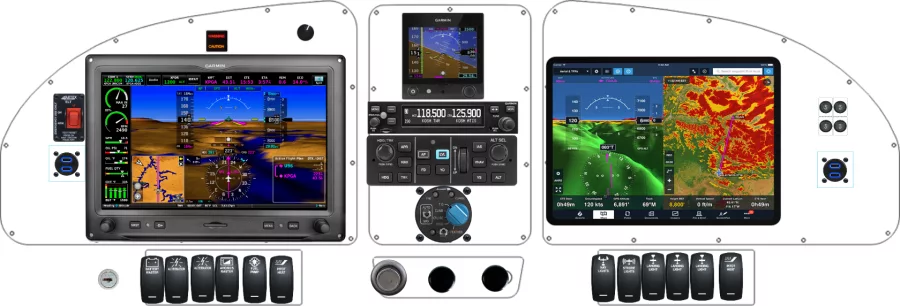

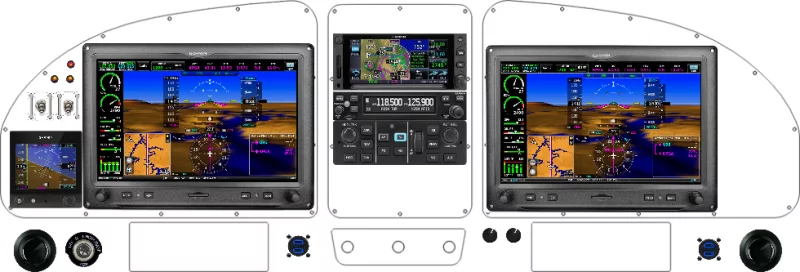

Recent S-20/21 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an S-20/21 panel
The equipment placed most often across the 20 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G3X Touch | 9 | 45% |
| Garmin International, Inc G5 | 6 | 30% |
| Garmin International, Inc GTR 200 | 5 | 25% |
| Airmaster AC-200 | 4 | 20% |
| Garmin International, Inc GMC 507 | 4 | 20% |
| Mid Continent SAM Standby Attitude Module | 3 | 15% |
| Dynon Avionics VHF COM | 3 | 15% |
| Garmin International, Inc GTN 650Xi | 3 | 15% |
Other RANS Aircraft panels
From layout to fabricated panel
Lay out the S-20/21 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
