RANS Aircraft S-12 Airaile instrument panel

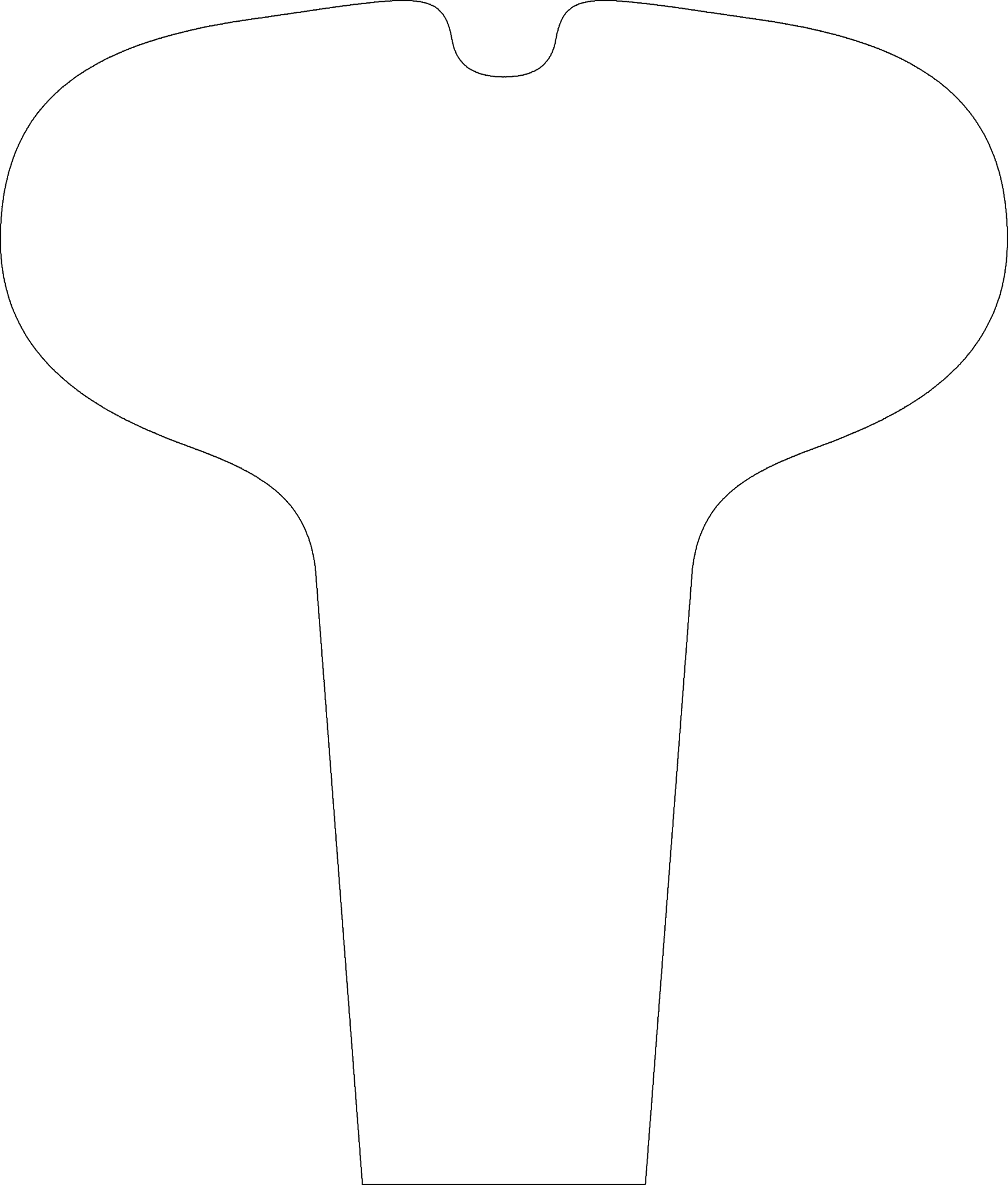

The S-12 Airaile panel template at the panel's dimensions, 23.83 × 28.03 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
19 panels laid out on this template

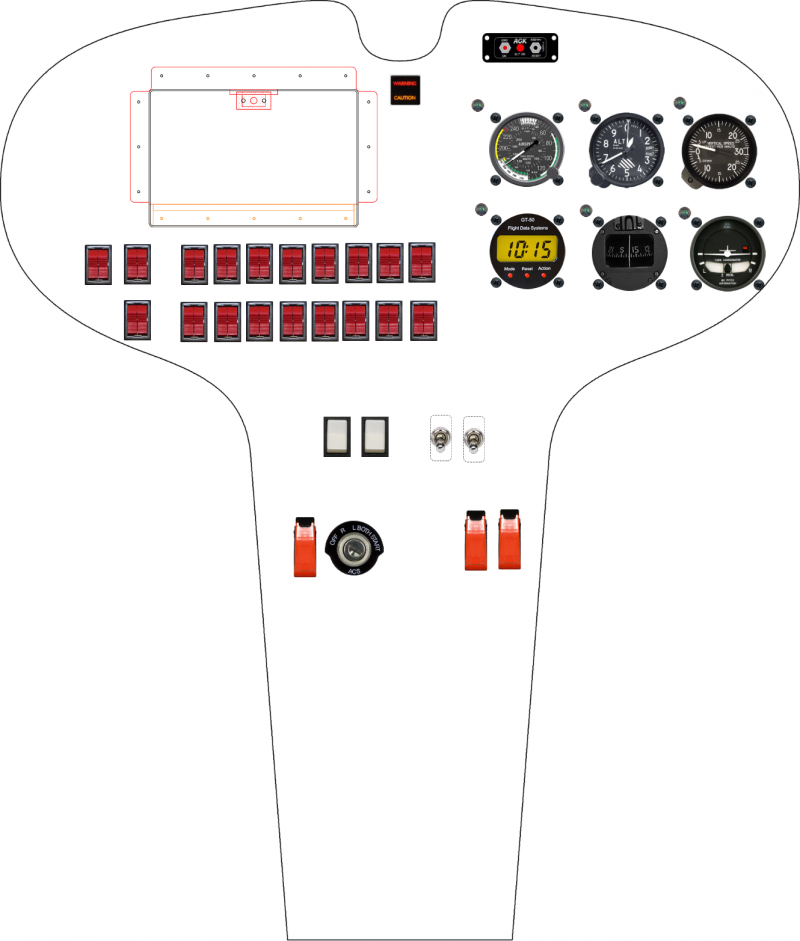

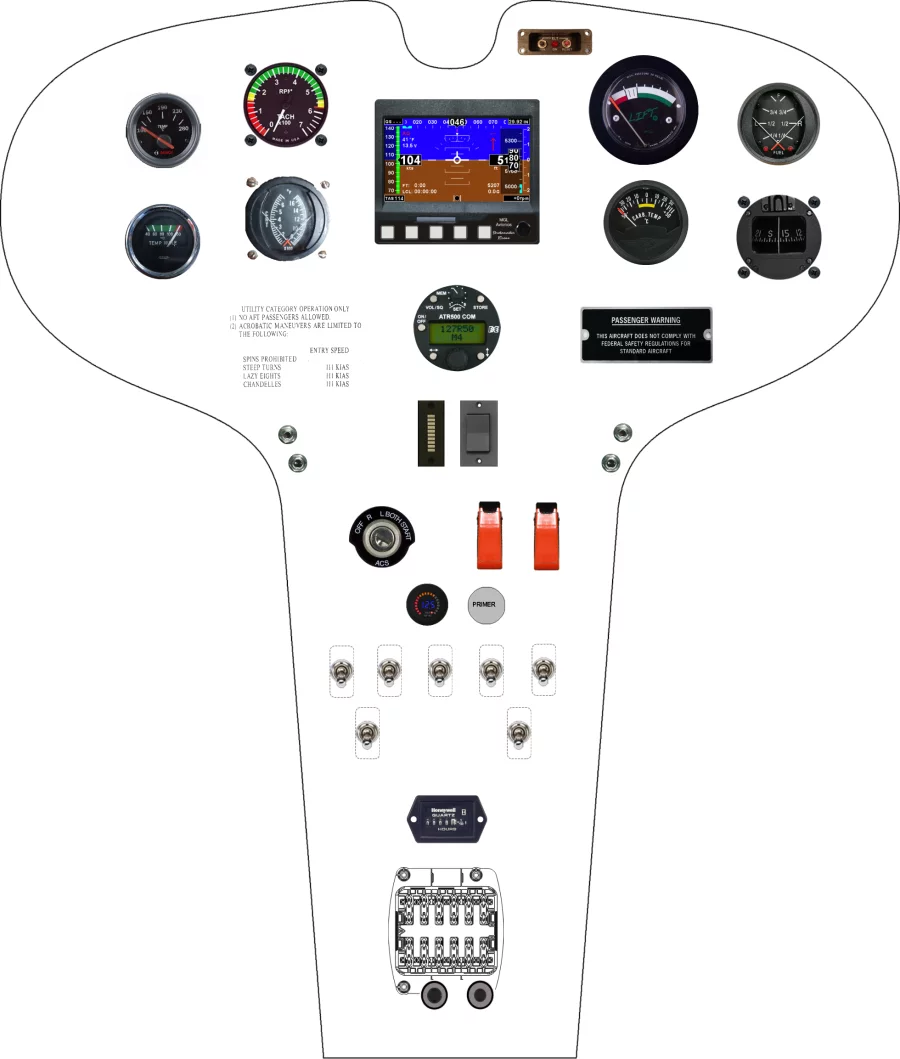

Recent S-12 Airaile panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an S-12 Airaile panel
The equipment placed most often across the 19 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 9 | 47% |
| Airpath Instrument Company Panel Mount Compass | 7 | 37% |
| ACK Technologies ELT | 6 | 32% |
| Falcon Gauge Altimeter 3" | 6 | 32% |
| Falcon Gauge Airspeed Indicator 3" | 6 | 32% |
| GRT Avionics EIS | 5 | 26% |
| Flight Data Systems Inc GT-50 | 4 | 21% |
| UMA Instruments UMA Tach | 4 | 21% |
Other RANS Aircraft panels
From layout to fabricated panel
Lay out the S-12 Airaile panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
