Aero Designs
Aero Designs Pulsar instrument panel

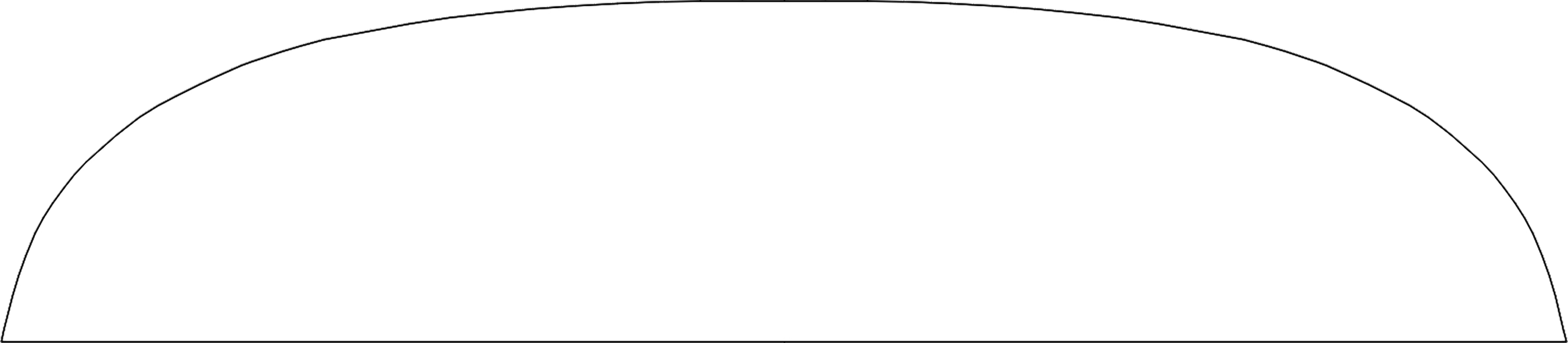

The Pulsar panel template at the panel's dimensions, 38 × 8.28 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
43 panels laid out on these 2 templates

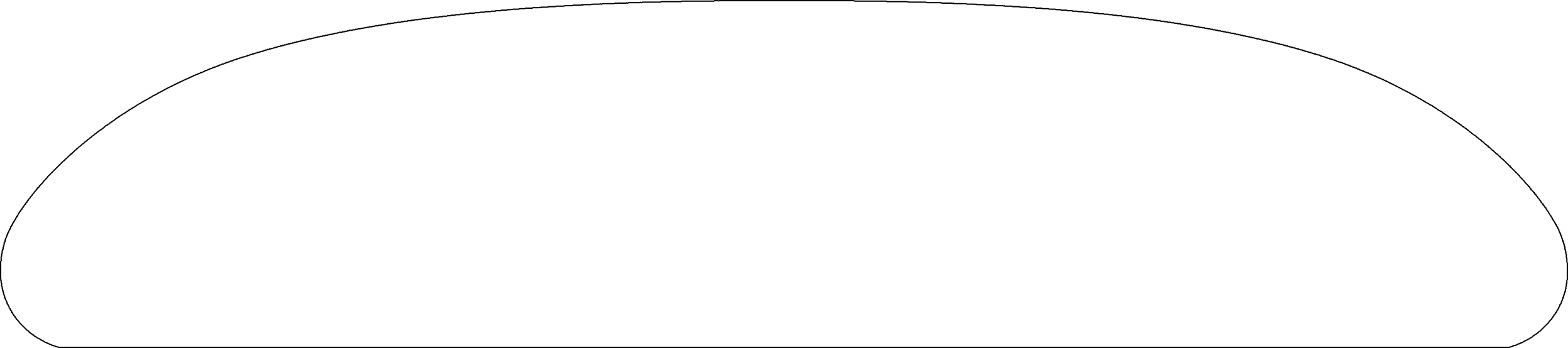

2 templates for the Pulsar

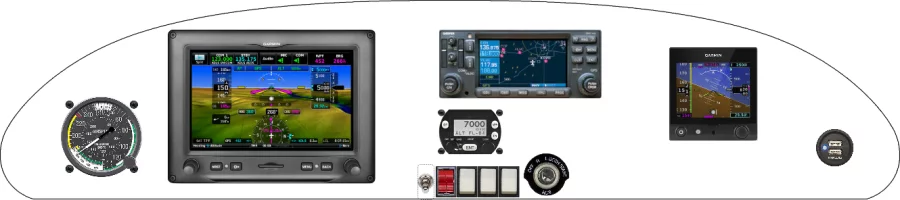

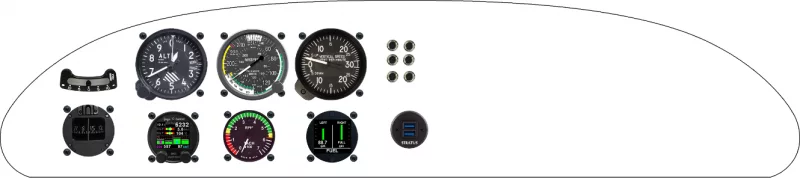

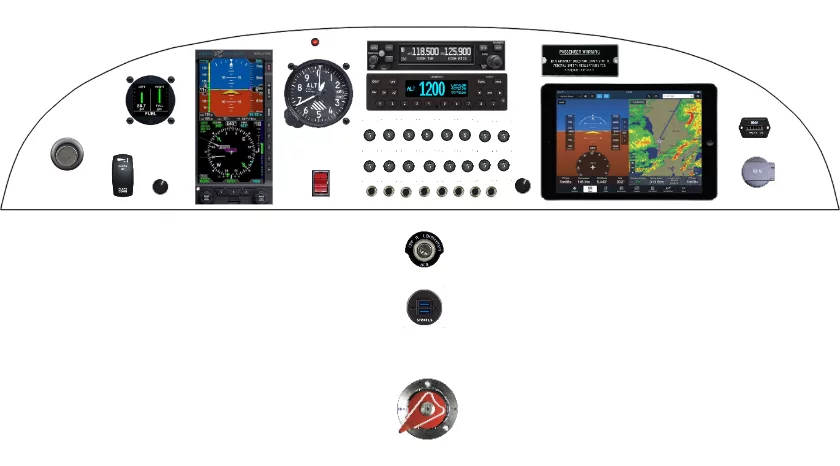

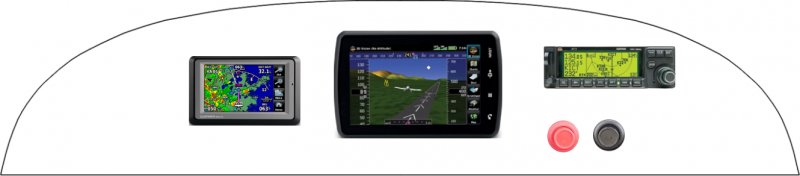

Recent Pulsar panel designs
Exported by builders from the Panel Designer, newest first.
Pulsar for sale
Selling a Pulsar? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a Pulsar panel
The equipment placed most often across the 43 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Sensa Technologies 7277 | 20 | 47% |
| ACK Technologies ELT | 15 | 35% |
| Trig Avionics TT21/TT22 Transponder | 15 | 35% |
| Aerospace Logic Inc. FL202 Two Tank Fuel Level | 12 | 28% |
| Trig Avionics TY91/TY92 VHF Comm | 12 | 28% |
| GRT Avionics GRT sport PFD + EIS | 8 | 19% |
| GRT Avionics EIS | 7 | 16% |
| Wapsi Aero LLC Engine Monitor | 6 | 14% |
From layout to fabricated panel
Lay out the Pulsar panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
