American Champion Decathlon instrument panel
The Decathlon panel template at the panel's dimensions, 28 × 7.56 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
56 panels laid out on these 4 templates
4 templates for the Decathlon
American Champion · Straight sides no panel trim pieces
Start a panel layout on this template
American Champion · Straight sides
Start a panel layout on this template

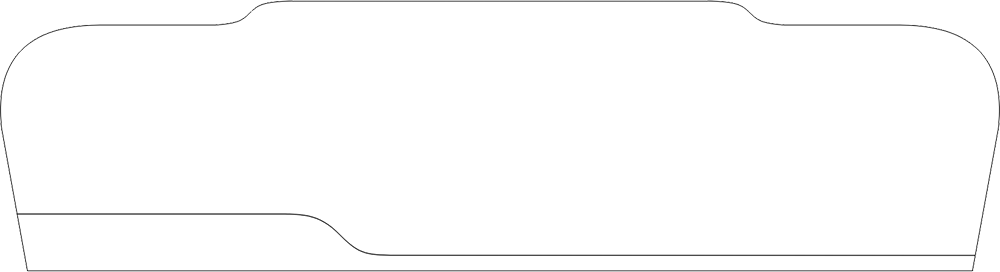

American Champion
Start a panel layout on this template

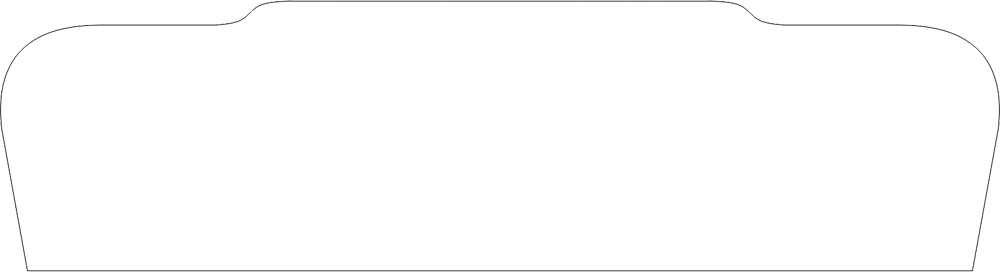

American Champion · No panel trim pieces
Start a panel layout on this template

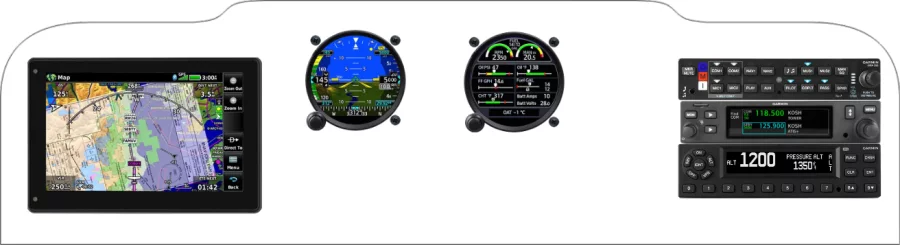

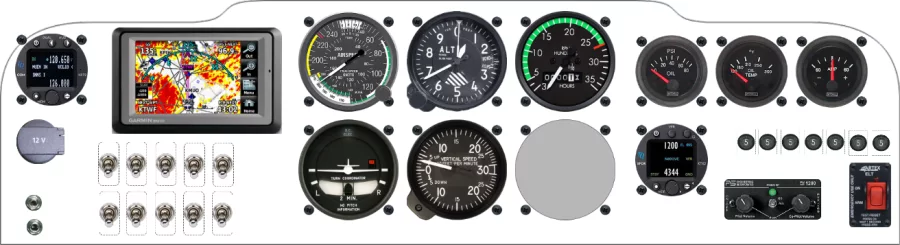

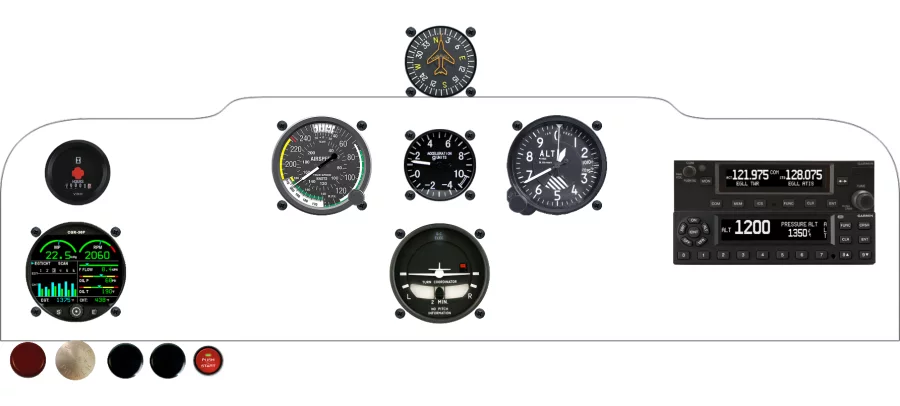

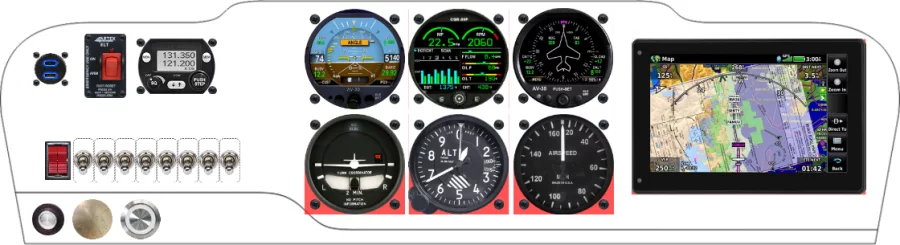

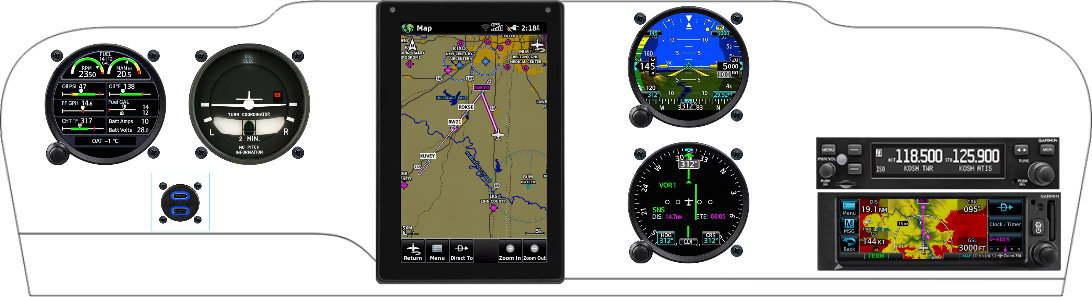

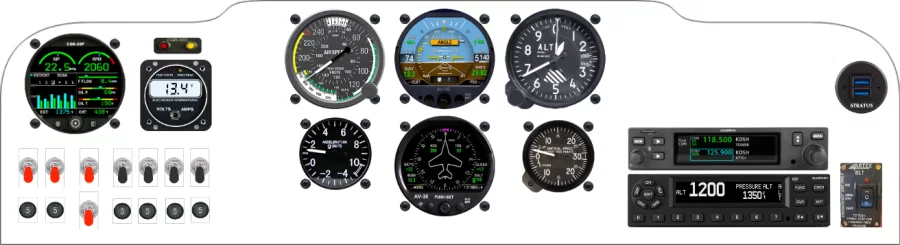

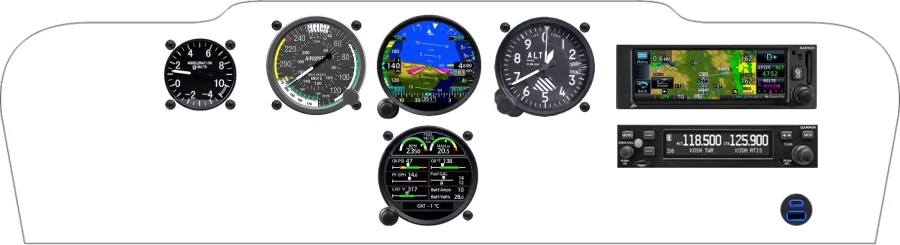

Recent Decathlon panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Decathlon panel
The equipment placed most often across the 56 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 31 | 55% |
| Falcon Gauge Vertical Speed Indicator | 31 | 55% |
| Falcon Gauge Altimeter 3" | 30 | 54% |
| Falcon Gauge G-Meter | 28 | 50% |
| Mid Continent MD93 Digital Clock | 21 | 38% |
| Garmin International, Inc GNC 255 | 17 | 30% |
| Garmin International, Inc GNX 375 | 16 | 29% |
| Electronics International Inc CGR-30P Engine Analyzer | 12 | 21% |
From layout to fabricated panel
Lay out the Decathlon panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
