Aviat Aircraft S1/S2 instrument panel

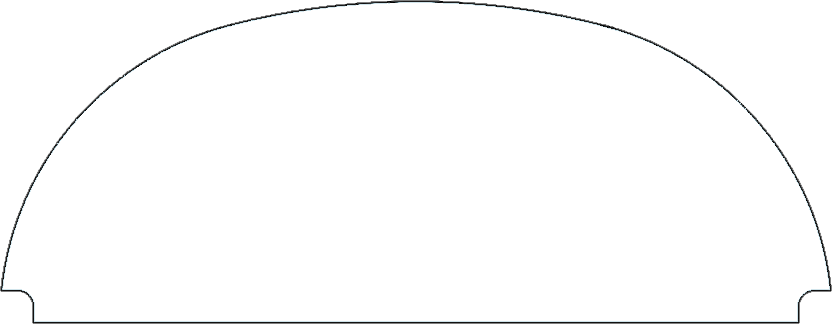

The S1/S2 panel template at the panel's dimensions, 23.5 × 9.15 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
77 panels laid out on this template

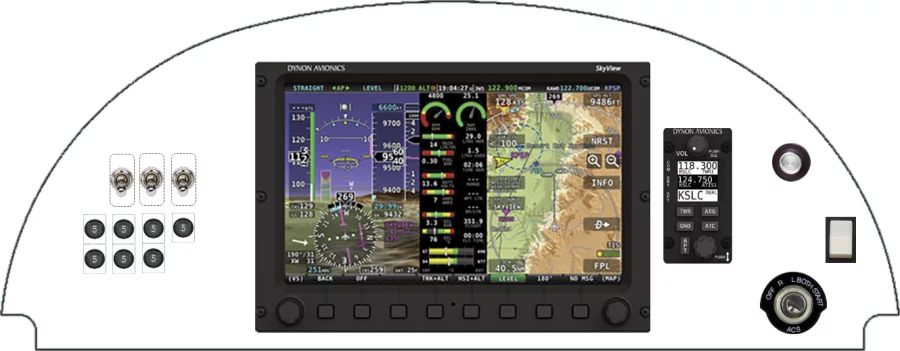

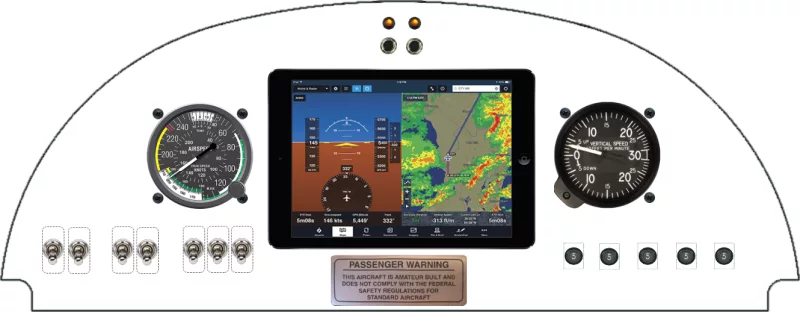

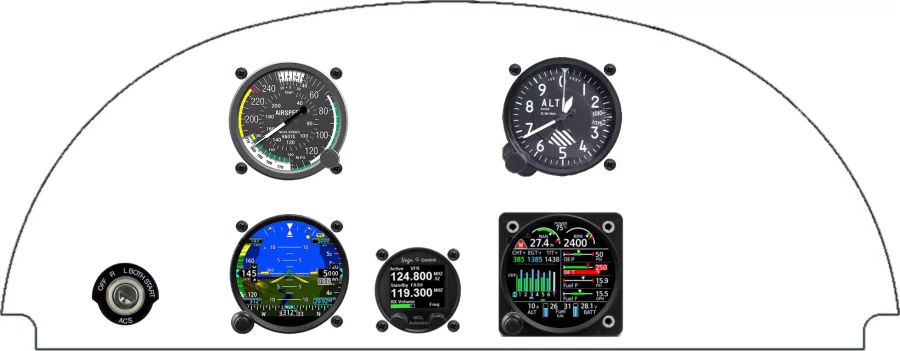

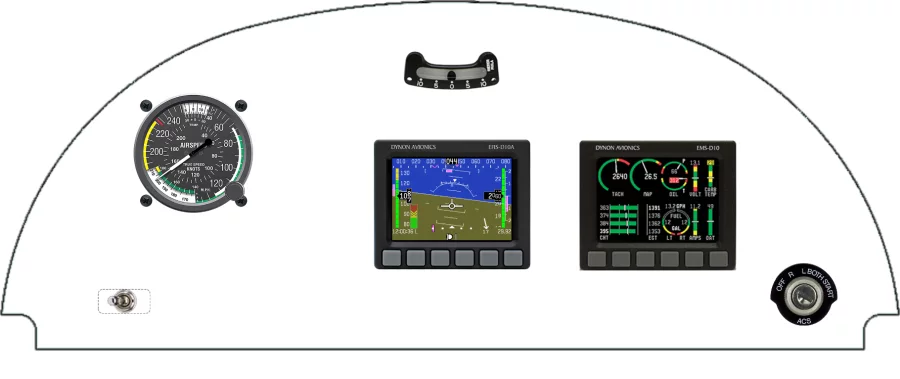

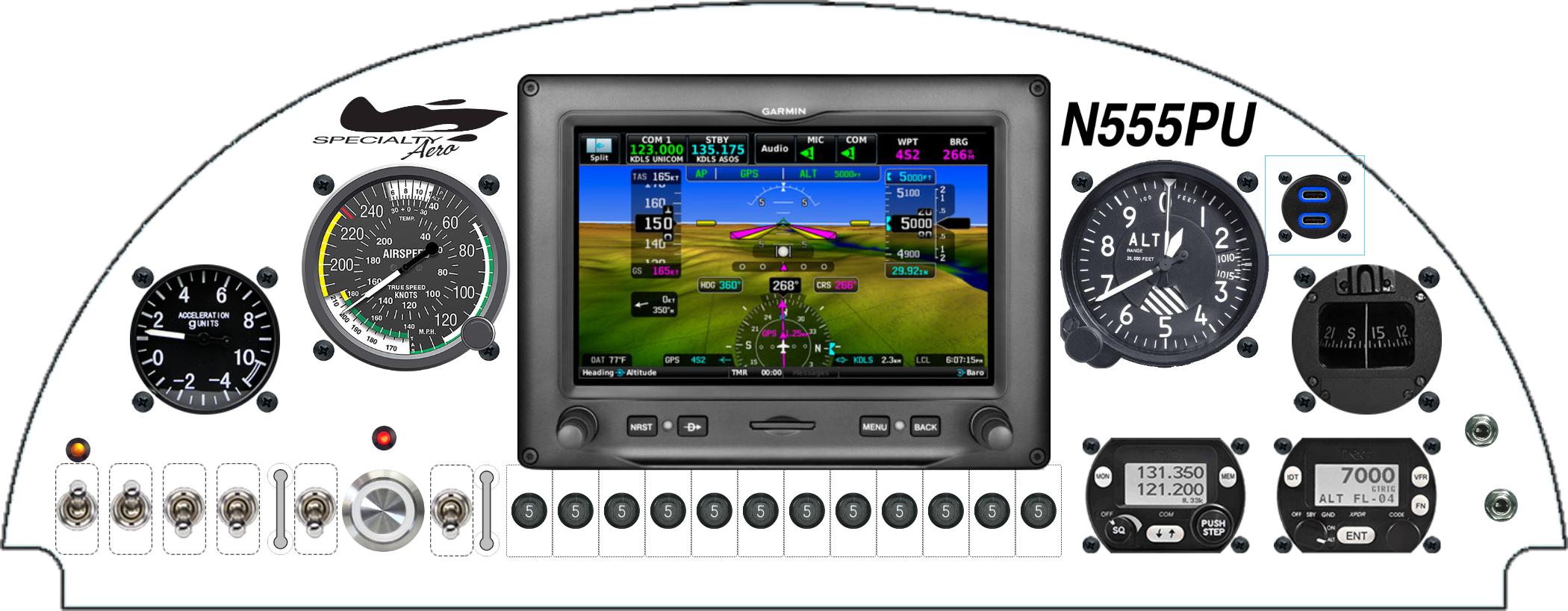

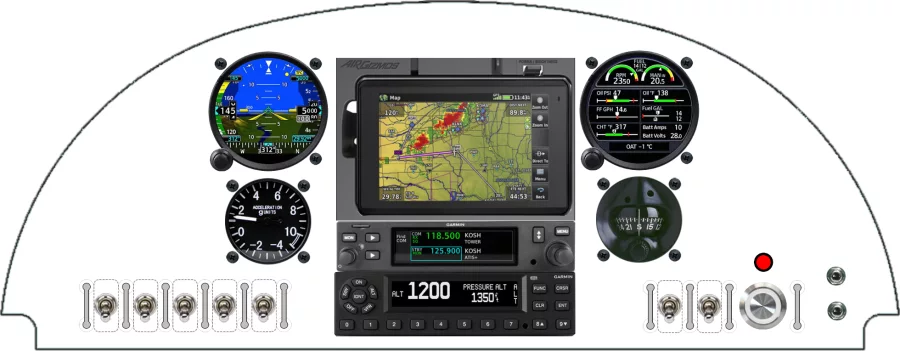

Recent S1/S2 panel designs
Exported by builders from the Panel Designer, newest first.
S1/S2 for sale
Selling an S1/S2? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in an S1/S2 panel
The equipment placed most often across the 77 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 52 | 68% |
| Falcon Gauge Altimeter 3" | 48 | 63% |
| TE Connectivity W31 | 44 | 58% |
| Trig Avionics TY91/TY92 VHF Comm | 31 | 41% |
| Airpath Instrument Company Panel Mount Compass | 31 | 41% |
| Trig Avionics TT21/TT22 Transponder | 29 | 38% |
| Aircraft Spruce & Specialty Co 1040 Ball Bank Indicator | 29 | 38% |
| Garmin International, Inc G3X Touch | 26 | 34% |
Other Aviat Aircraft panels
From layout to fabricated panel
Lay out the S1/S2 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
