BBI Aviation PA-18 SUPERCUB instrument panel

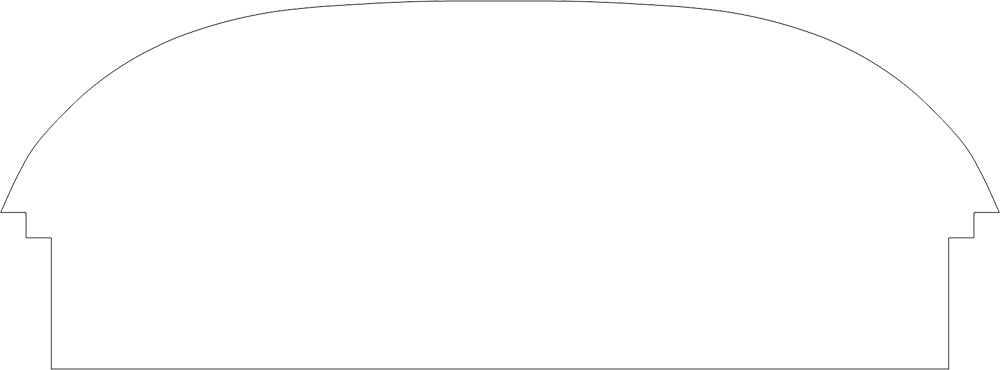

The PA-18 SUPERCUB panel template at the panel's dimensions, 29.5 × 10.88 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
34 panels laid out on this template

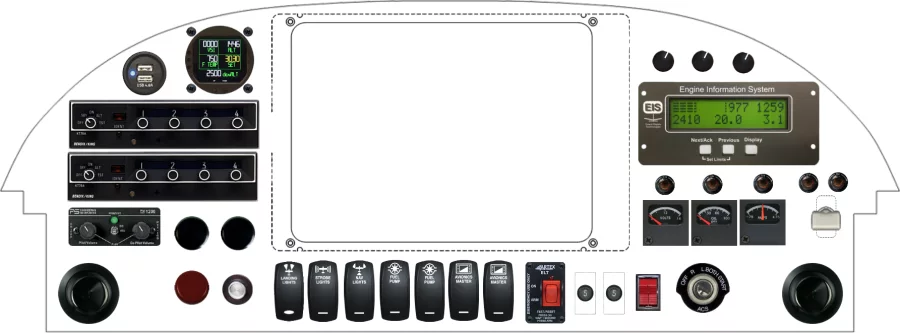

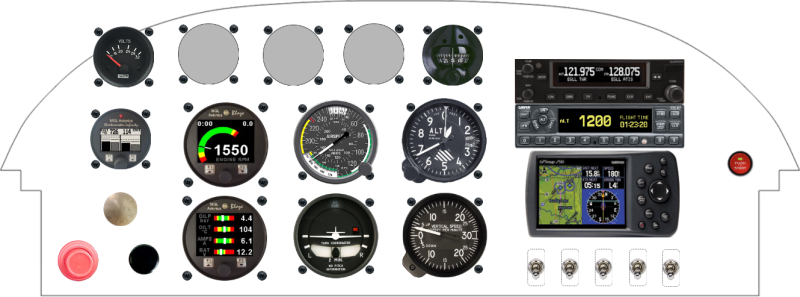

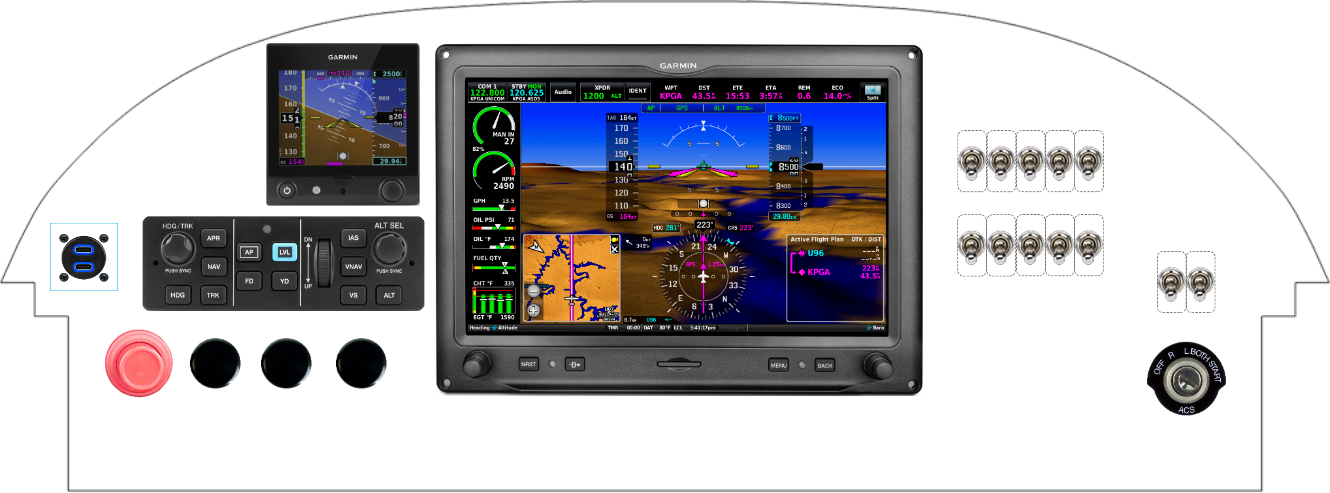

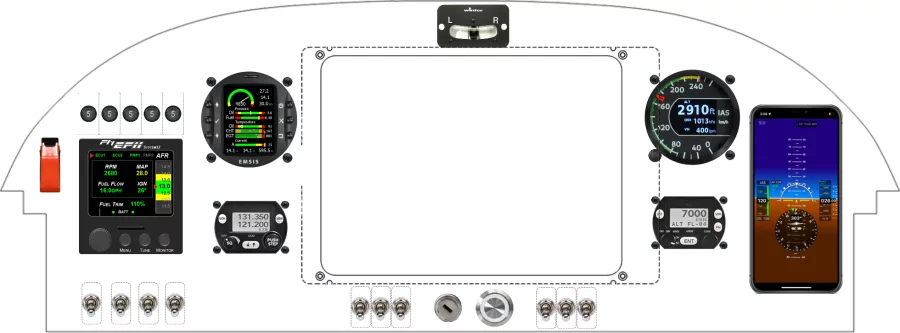

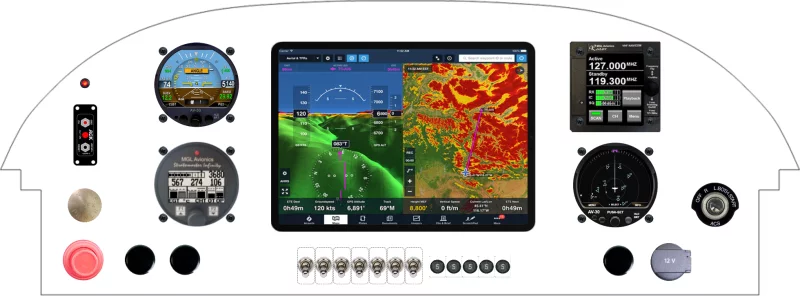

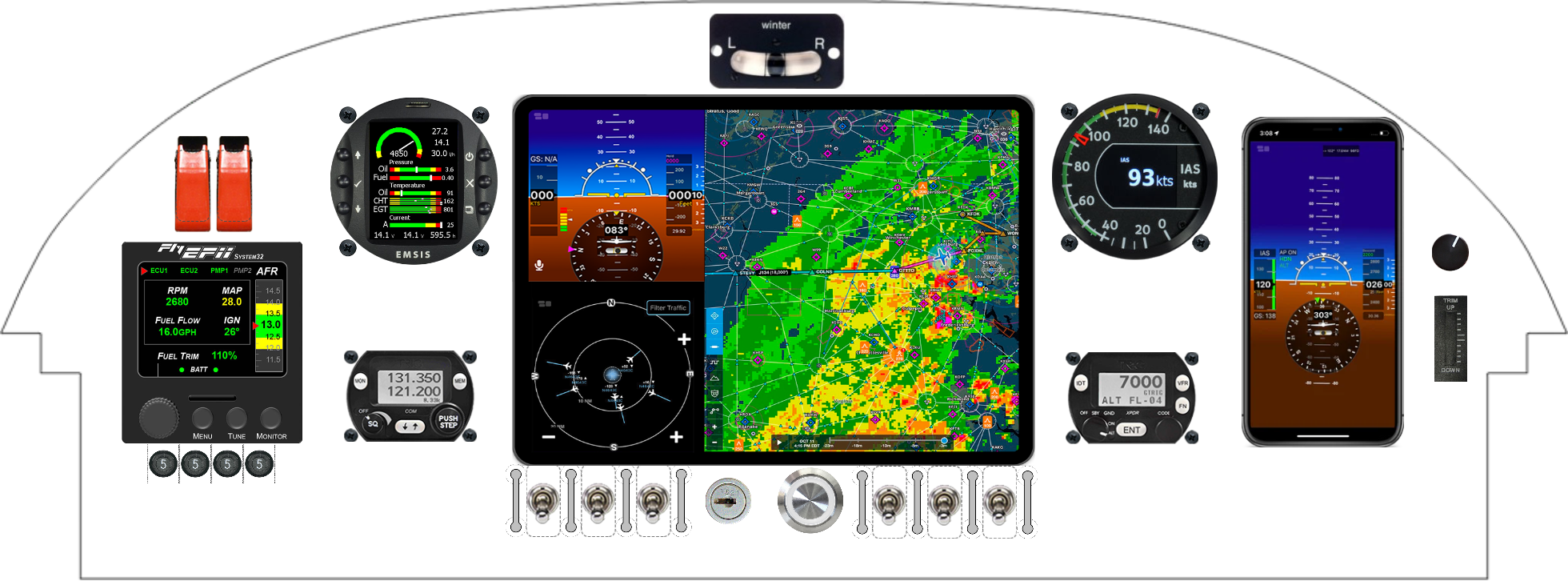

Recent PA-18 SUPERCUB panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-18 SUPERCUB panel
The equipment placed most often across the 34 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 15 | 44% |
| Garmin International, Inc G3X Touch | 14 | 41% |
| Garmin International, Inc GSB 15 | 13 | 38% |
| TE Connectivity W31 | 13 | 38% |
| Garmin International, Inc GMC 507 | 12 | 35% |
| Sensa Technologies 7277 | 9 | 26% |
| Falcon Gauge Airspeed Indicator 3" | 7 | 21% |
| Falcon Gauge Altimeter 3" | 7 | 21% |
From layout to fabricated panel
Lay out the PA-18 SUPERCUB panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
