Bearhawk Aircraft LSA instrument panel
The LSA panel template at the panel's dimensions, 27.75 × 9.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
10 panels laid out on this template

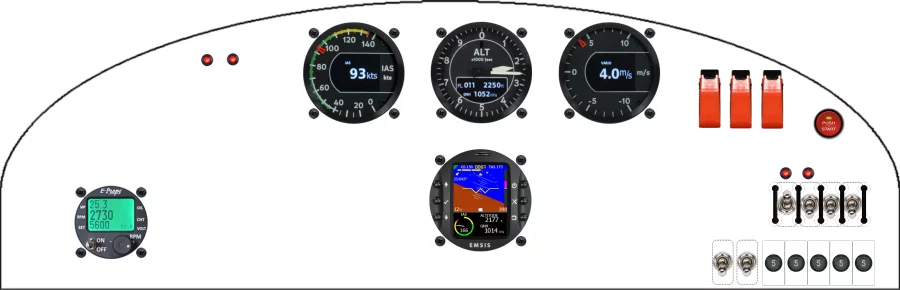

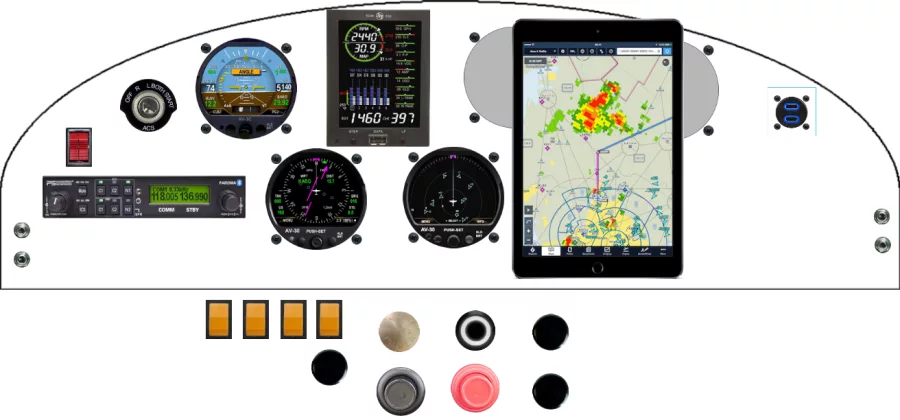

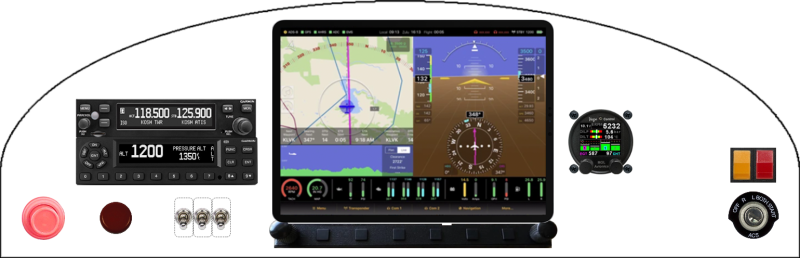

Recent LSA panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a LSA panel
The equipment placed most often across the 10 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Kanardia EMSIS 80 EMS | 4 | 40% |
| uAvionix Corporation AV-30 PFD | 3 | 30% |
| TE Connectivity W31 | 3 | 30% |
| Falcon Gauge Airspeed Indicator 3" | 3 | 30% |
| Falcon Gauge Altimeter 3" | 3 | 30% |
| Kanardia Indu Altimeter | 2 | 20% |
| UMA Instruments Manifold Pressure Gauge | 2 | 20% |
| Falcon Gauge Vertical Speed Indicator | 2 | 20% |
Other Bearhawk Aircraft panels
From layout to fabricated panel
Lay out the LSA panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
