Bede Corp BD-4 instrument panel
The BD-4 panel template at the panel's dimensions, 41.89 × 13.33 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
33 panels laid out on this template
Also written BD4 or BD 4.
2 templates for the BD-4

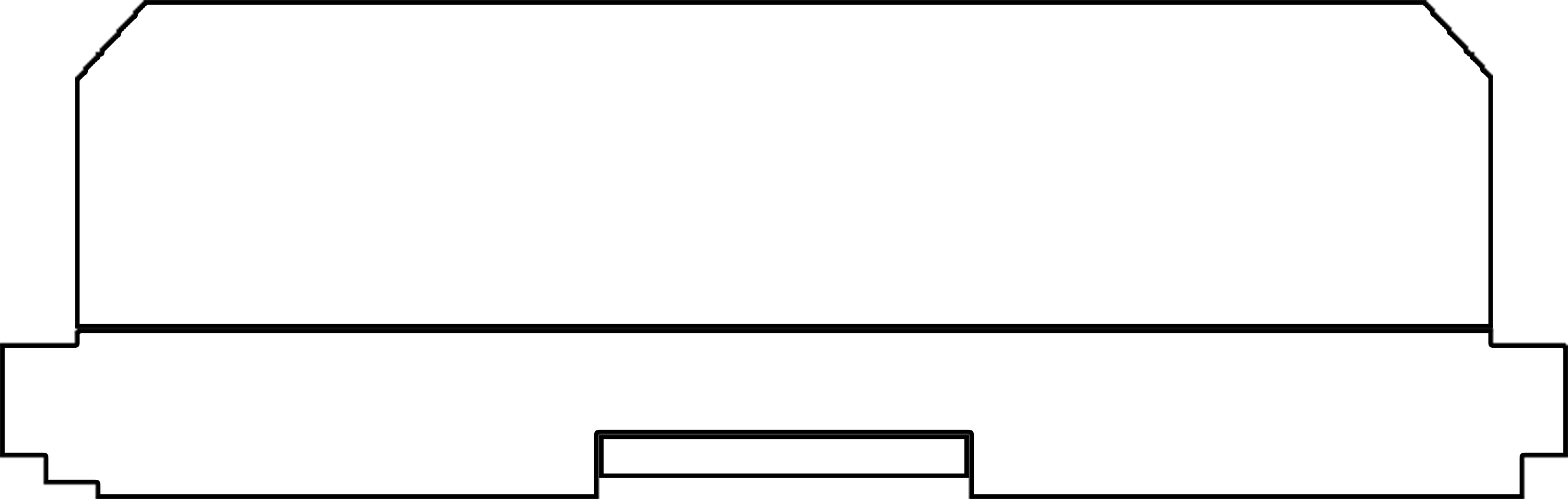

41.89 × 13.33 in

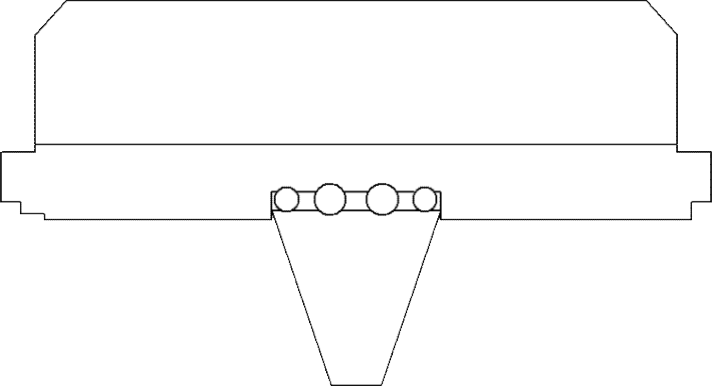

41.89 × 22.71 in

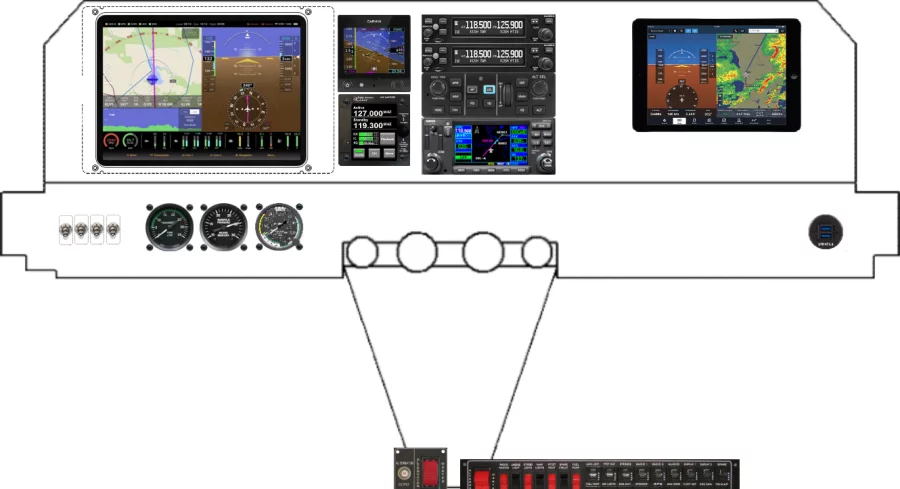

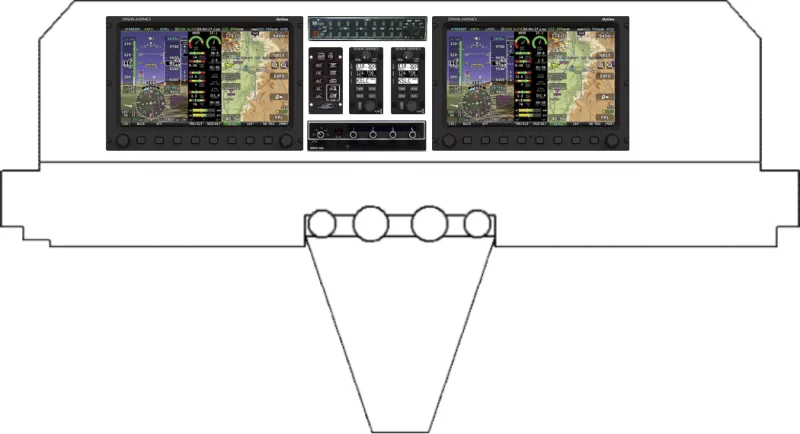

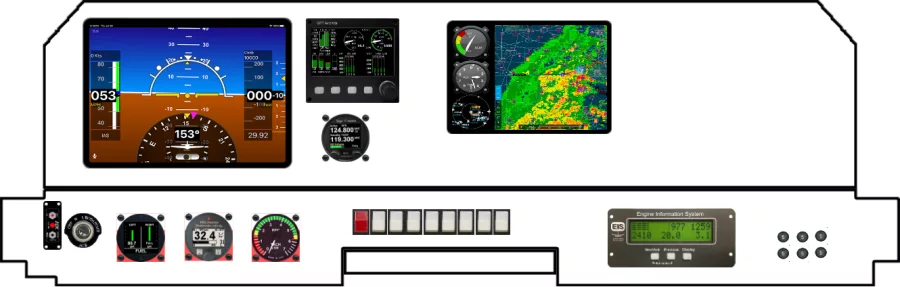

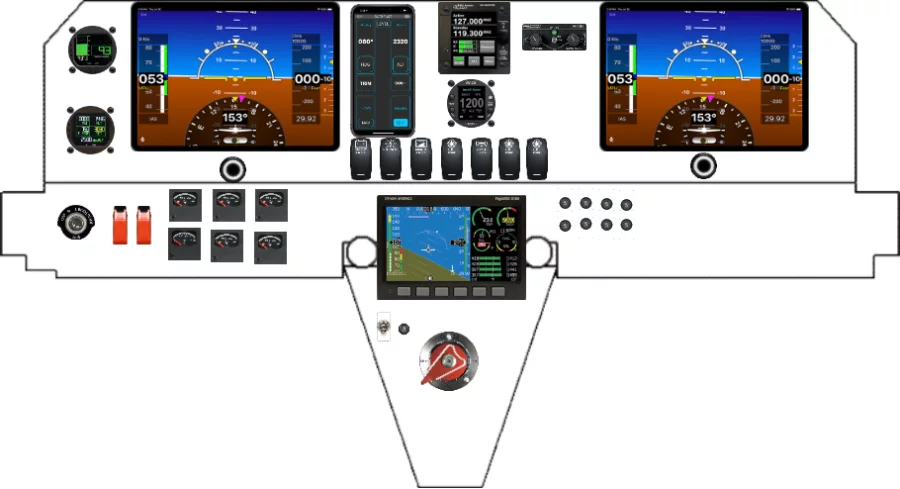

Recent BD-4 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a BD-4 panel
The equipment placed most often across the 33 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GMA 245 | 8 | 24% |
| Garmin International, Inc GMC 507 | 6 | 18% |
| Dynon Avionics Autopilot Panel | 5 | 15% |
| Garmin International, Inc G5 | 5 | 15% |
| Dynon Avionics VHF COM | 5 | 15% |
| ACK Technologies ELT | 4 | 12% |
| Falcon Gauge Airspeed Indicator 3" | 4 | 12% |
| Falcon Gauge Altimeter 3" | 4 | 12% |
From layout to fabricated panel
Lay out the BD-4 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
