Belmont Aero Belmont Patino instrument panel
The Belmont Patino panel template at the panel's dimensions, 37.9 × 19.4 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
19 panels laid out on this template

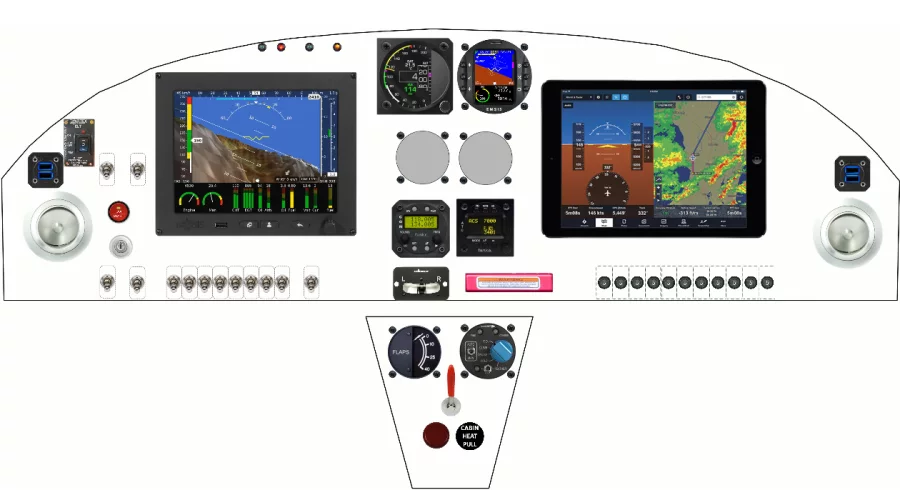

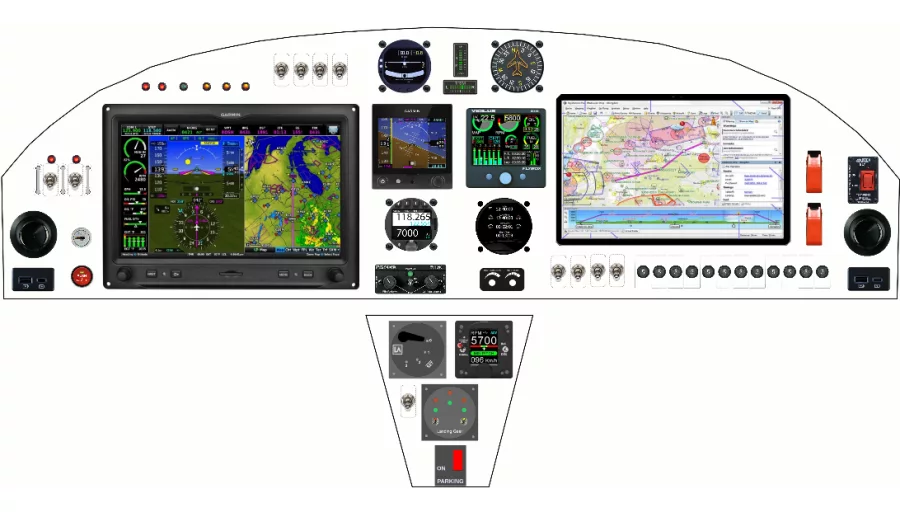

Recent Belmont Patino panel designs
Exported by builders from the Panel Designer, newest first.
Belmont Patino for sale
Selling a Belmont Patino? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a Belmont Patino panel
The equipment placed most often across the 19 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| TE Connectivity W31 | 15 | 79% |
| Air Avionics ACD-57 | 7 | 37% |
| Kanardia NESIS 3 8.4" | 7 | 37% |
| BRS handle | 5 | 26% |
| ELT | 5 | 26% |
| Airmaster AC-200 | 5 | 26% |
| Apple 11" iPad Pro | 5 | 26% |
| UMA Instruments N092 Flap Position | 5 | 26% |
From layout to fabricated panel
Lay out the Belmont Patino panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
