ERCO Ercoupe instrument panel

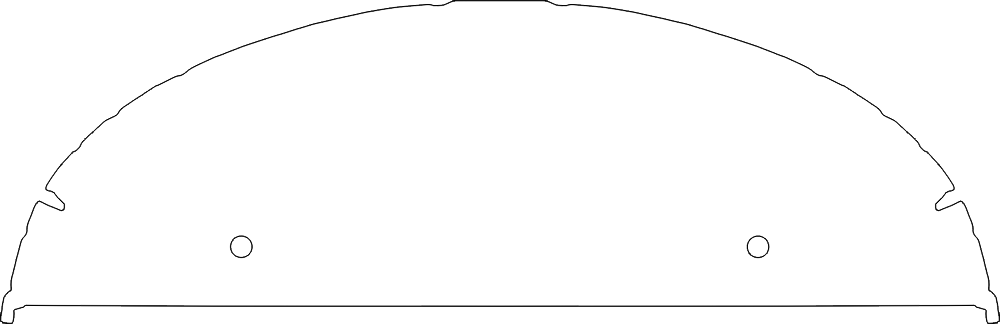

The Ercoupe panel template at the panel's dimensions, 39 × 12.6 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
27 panels laid out on this template
Recent Ercoupe panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an Ercoupe panel
The equipment placed most often across the 27 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 14 | 52% |
| Falcon Gauge Airspeed Indicator 3" | 11 | 41% |
| Falcon Gauge Vertical Speed Indicator | 10 | 37% |
| Mitchell Aircraft Products, Inc Oil Pressure Gauge | 10 | 37% |
| Mitchell Aircraft Products, Inc Oil Temperature Gauge | 10 | 37% |
| Bendix King KT 76 | 9 | 33% |
| PS Engineering PM3000 | 8 | 30% |
| Icom America Inc Icom IC-A200 Comm | 7 | 26% |
From layout to fabricated panel
Lay out the Ercoupe panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
