Falco Aircraft Association Falco instrument panel

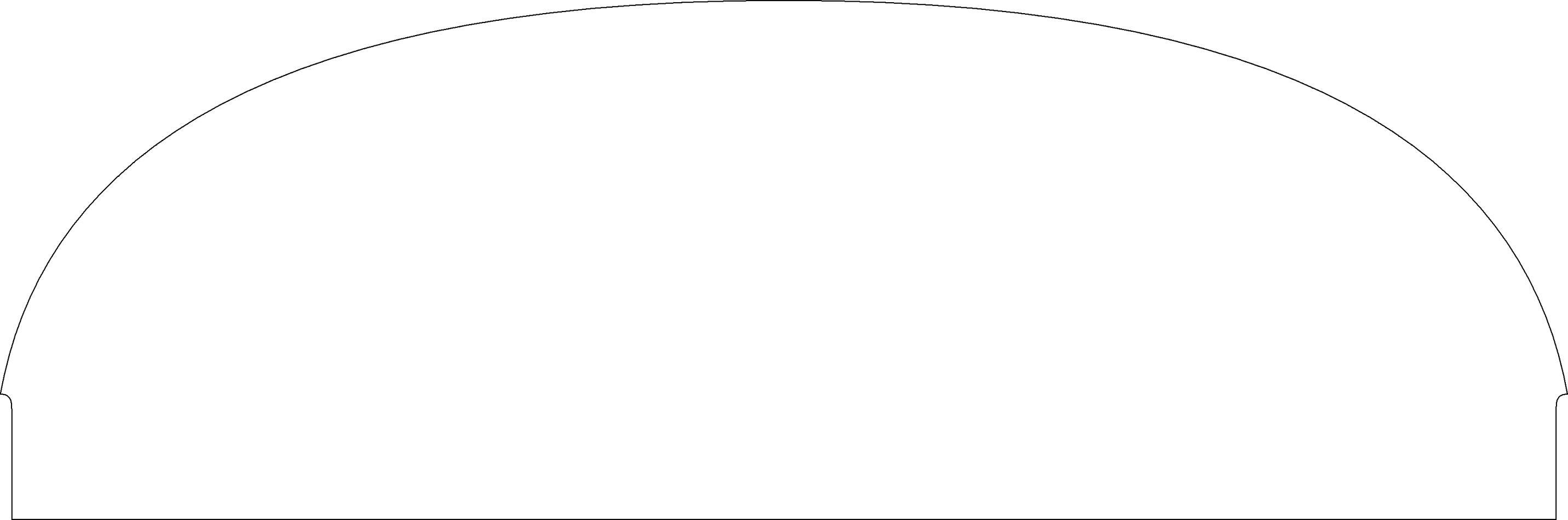

The Falco panel template at the panel's dimensions, 39.76 × 13.2 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
34 panels laid out on this template

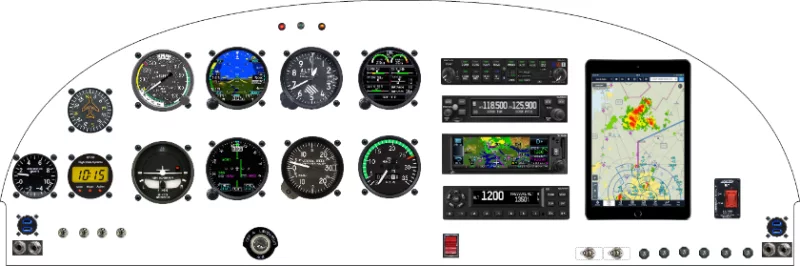

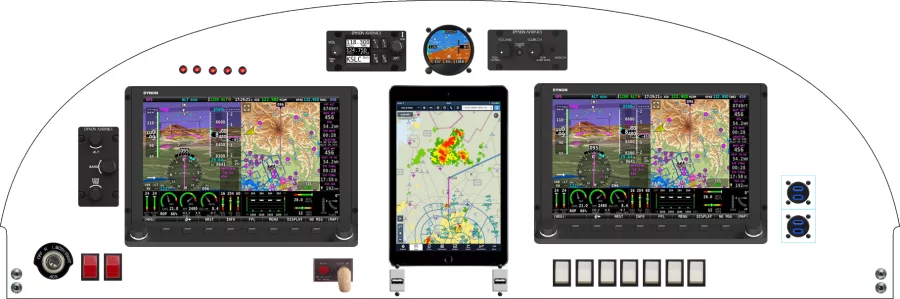

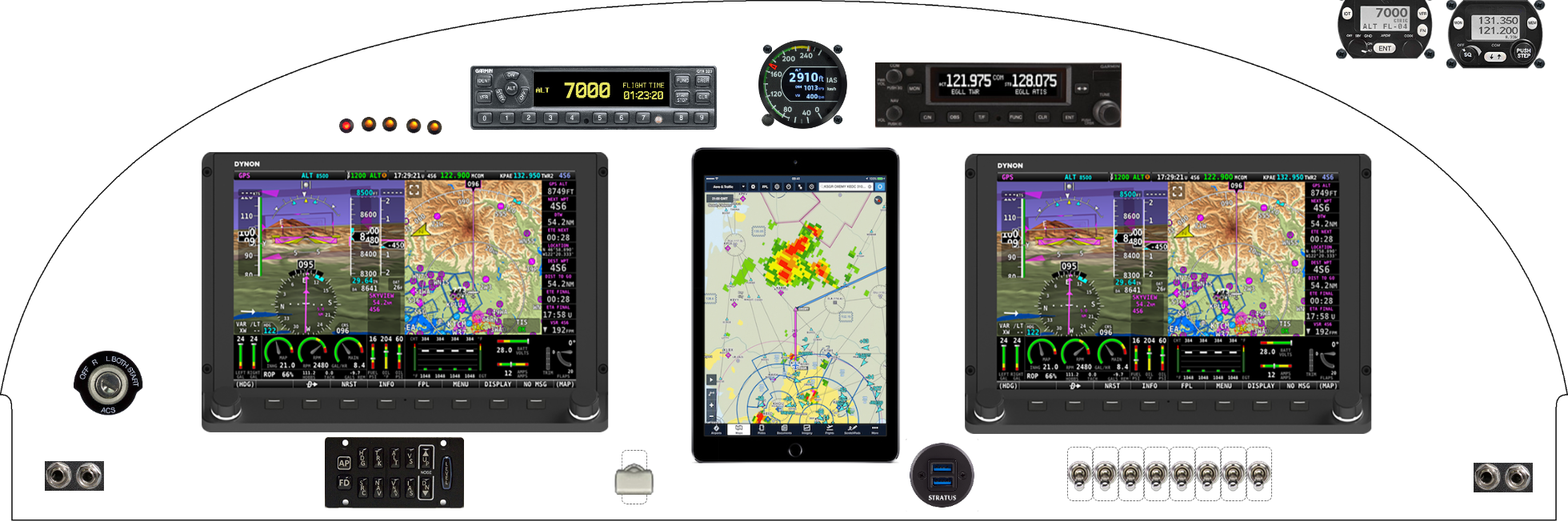

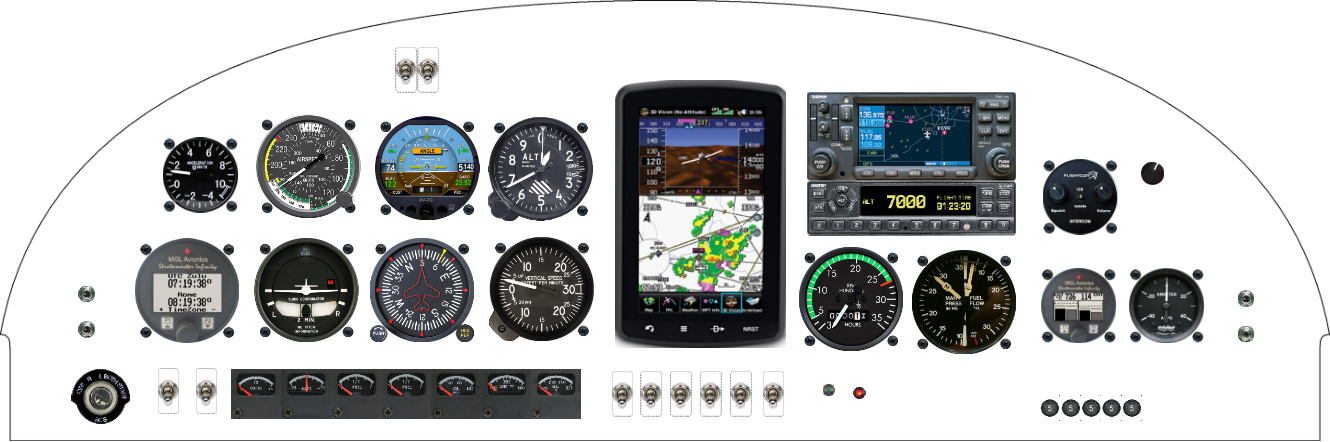

Recent Falco panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Falco panel
The equipment placed most often across the 34 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 10 | 29% |
| Falcon Gauge Altimeter 3" | 9 | 26% |
| Falcon Gauge Airspeed Indicator 3" | 9 | 26% |
| Garmin International, Inc GNC 255 | 8 | 24% |
| Sensa Technologies 7277 | 6 | 18% |
| Garmin International, Inc G3X Touch | 6 | 18% |
| Garmin International, Inc G5 | 5 | 15% |
| Dynon Avionics Autopilot Panel | 5 | 15% |
From layout to fabricated panel
Lay out the Falco panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
