Fisher Flying Products R-80 Tiger Moth instrument panel

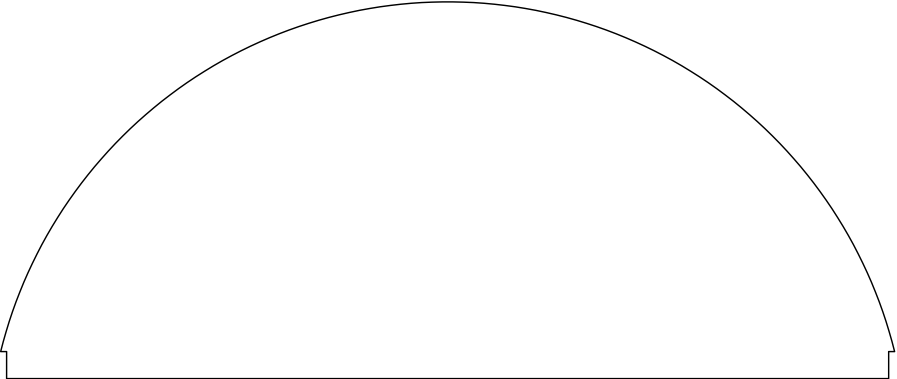

The R-80 Tiger Moth panel template at the panel's dimensions, 26 × 10.88 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
10 panels laid out on this template

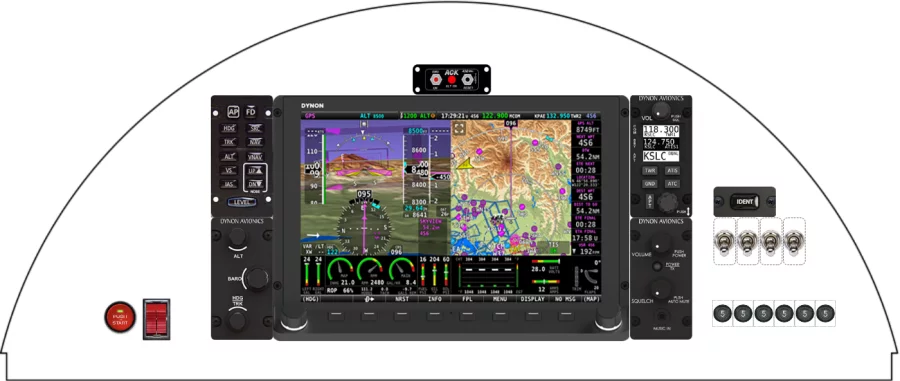

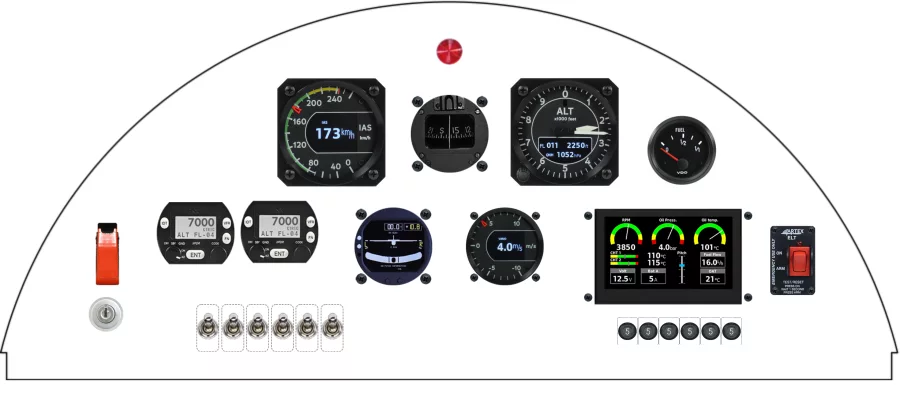

Recent R-80 Tiger Moth panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an R-80 Tiger Moth panel
The equipment placed most often across the 10 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Sensa Technologies 7277 | 6 | 60% |
| Airpath Instrument Company Panel Mount Compass | 4 | 40% |
| Kanardia Digi EMS | 3 | 30% |
| Trig Avionics Trig Transponder no screws | 3 | 30% |
| ACK Technologies ELT | 2 | 20% |
| Kanardia Horis AD-AHRS | 2 | 20% |
| Dynon Avionics VHF COM | 2 | 20% |
| Dynon Avionics Dynon SkyView HDX 11" | 2 | 20% |
From layout to fabricated panel
Lay out the R-80 Tiger Moth panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
