Grumman Aviation AA-5 instrument panel

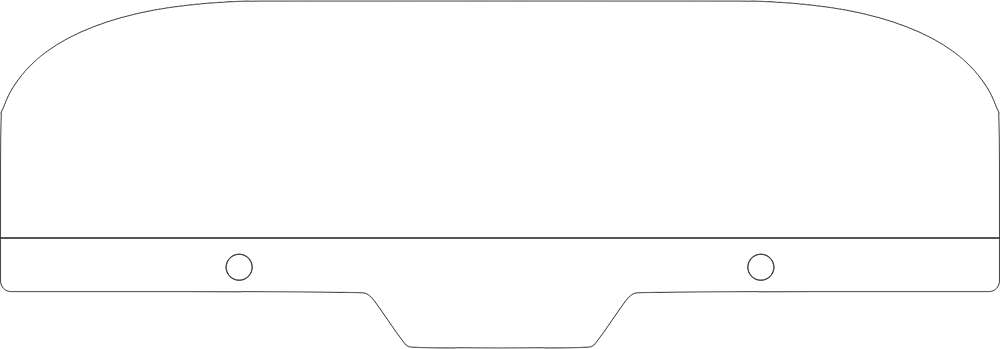

The AA-5 panel template at the panel's dimensions, 41.25 × 14.5 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
144 panels laid out on this template
Also written AA5 or AA 5.

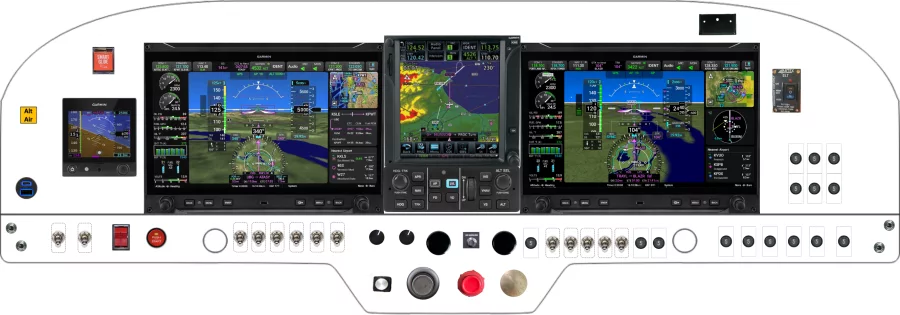

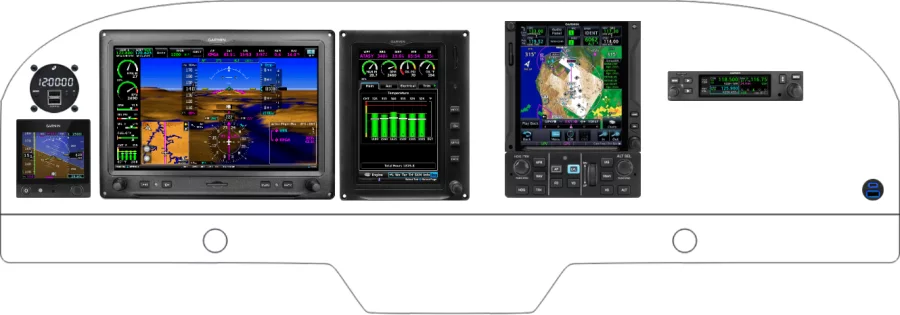

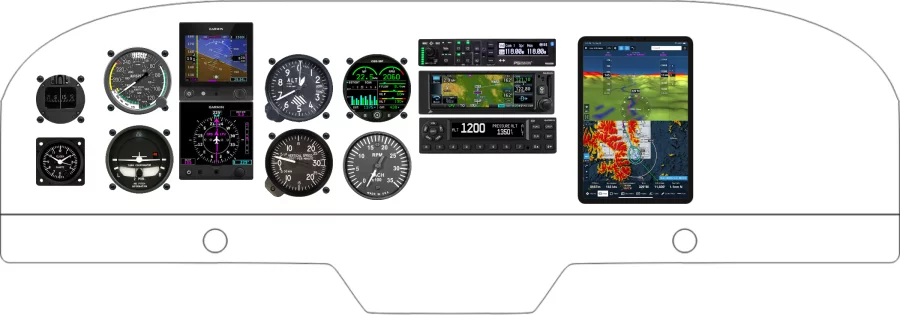

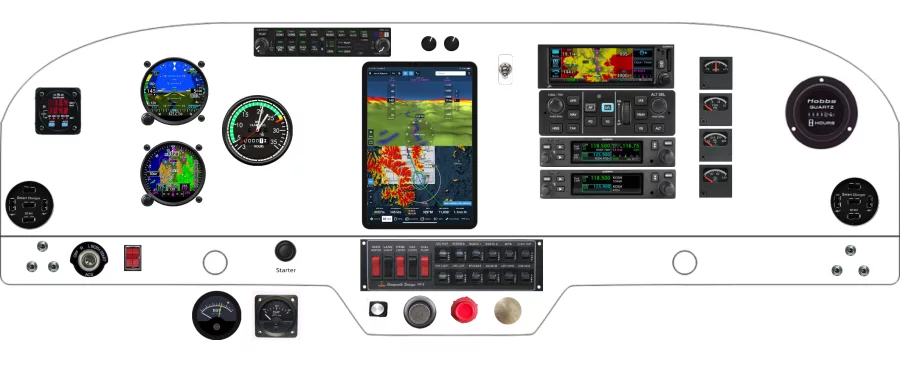

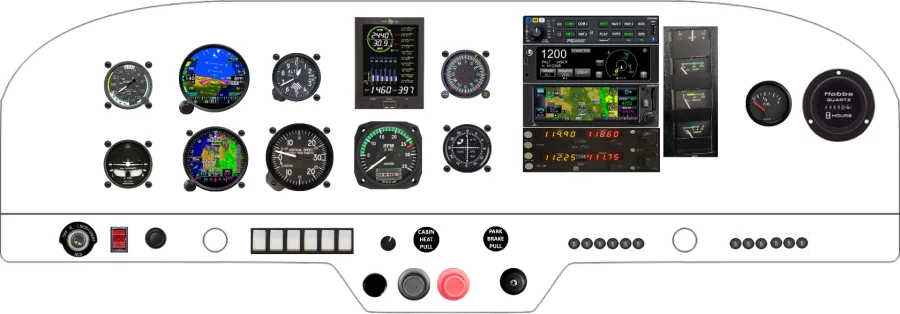

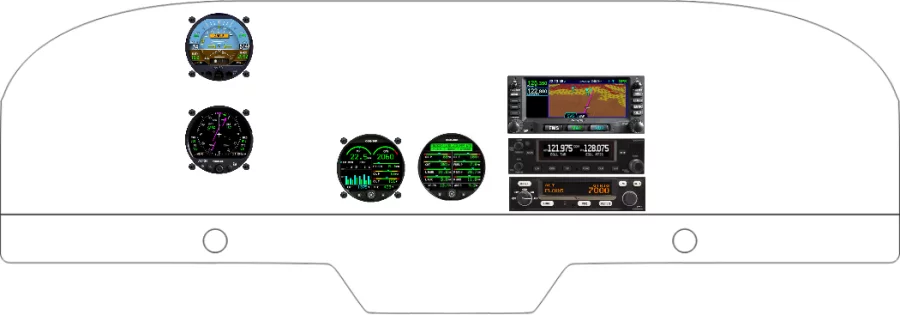

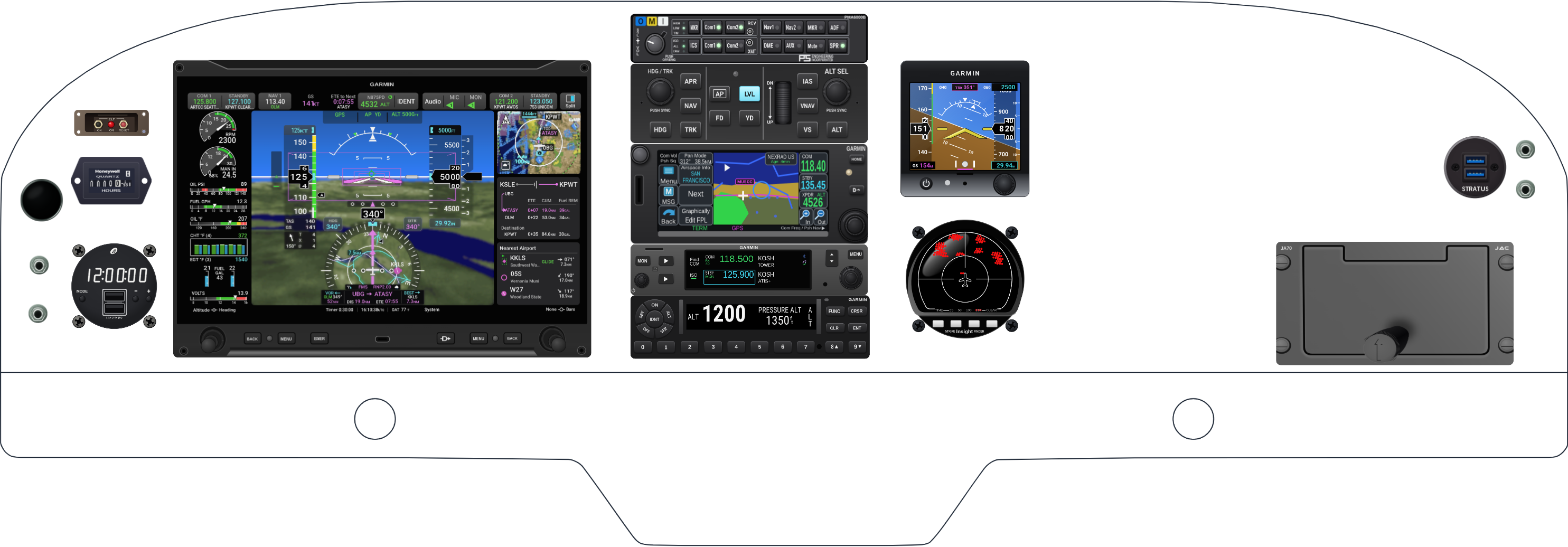

Recent AA-5 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an AA-5 panel
The equipment placed most often across the 144 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 56 | 39% |
| Falcon Gauge Vertical Speed Indicator | 55 | 38% |
| Sensa Technologies 7277 | 51 | 35% |
| Falcon Gauge Airspeed Indicator 3" | 50 | 35% |
| Garmin International, Inc GFC 500 | 44 | 31% |
| Garmin International, Inc G5 | 43 | 30% |
| Garmin International, Inc GSB 15 | 31 | 22% |
| Garmin International, Inc GNC 255 | 29 | 20% |
From layout to fabricated panel
Lay out the AA-5 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
