Harmon Rocket LLC Rocket instrument panel

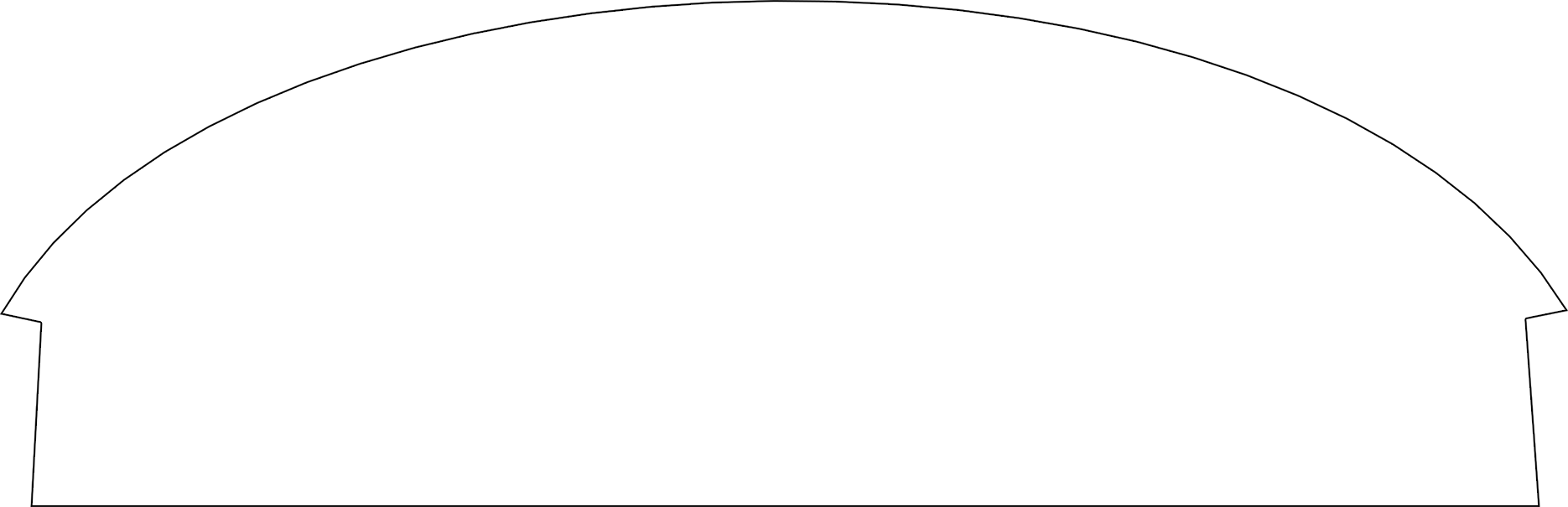

The Rocket panel template at the panel's dimensions, 25.97 × 8.41 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
23 panels laid out on this template

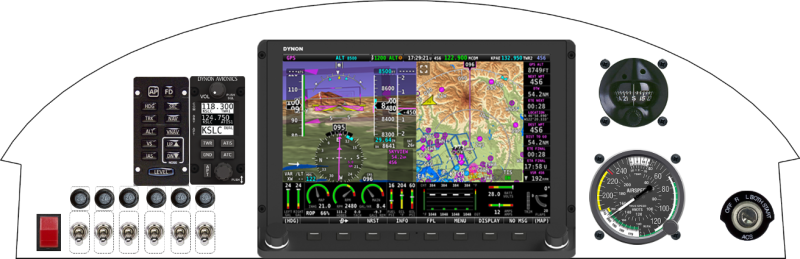

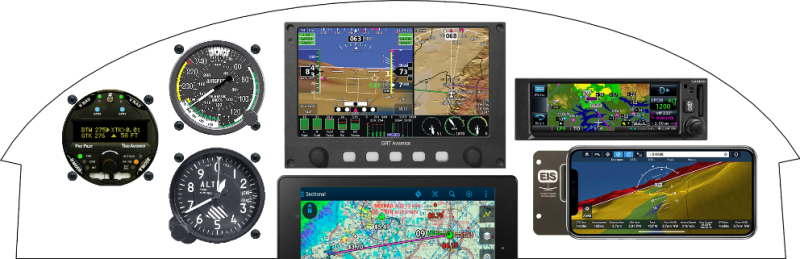

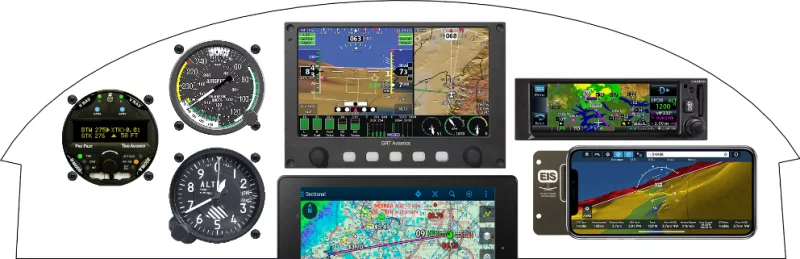

Recent Rocket panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Rocket panel
The equipment placed most often across the 23 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics VHF COM | 6 | 26% |
| Dynon Avionics Autopilot Panel | 6 | 26% |
| Falcon Gauge Airspeed Indicator 3" | 5 | 22% |
| Dynon Avionics Stereo Intercom | 5 | 22% |
| ACK Technologies ELT | 3 | 13% |
| Garmin International, Inc GPS 175 | 3 | 13% |
| Falcon Gauge Altimeter 3" | 3 | 13% |
| Dynon Avionics EFIS-D10A | 3 | 13% |
From layout to fabricated panel
Lay out the Rocket panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
