Jabiru Aircraft J400 instrument panel

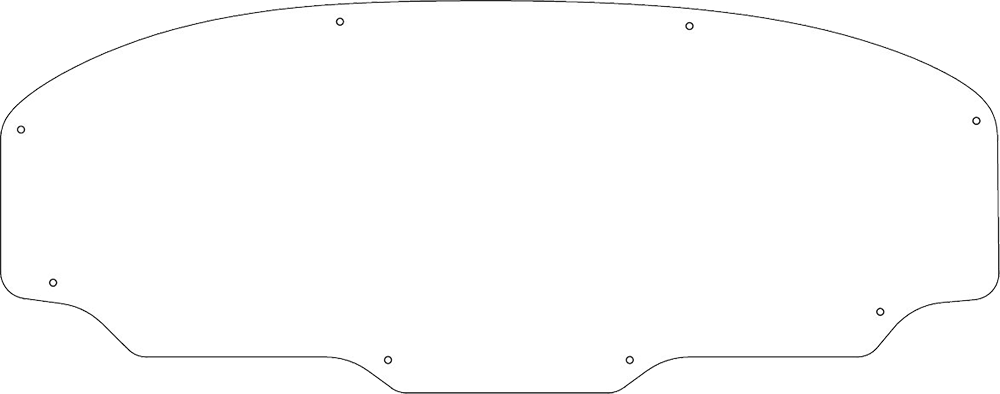

The J400 panel template at the panel's dimensions, 27.5 × 11.02 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
13 panels laid out on this template

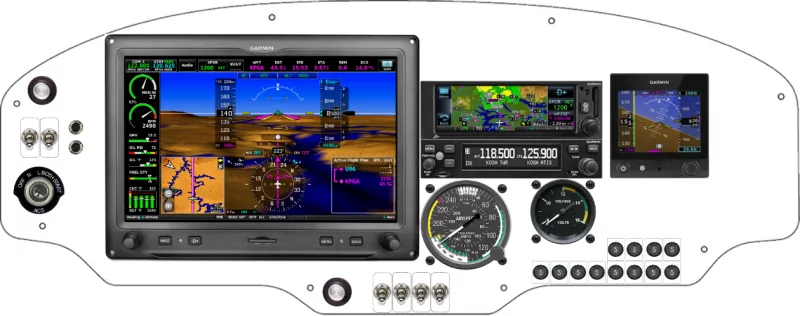

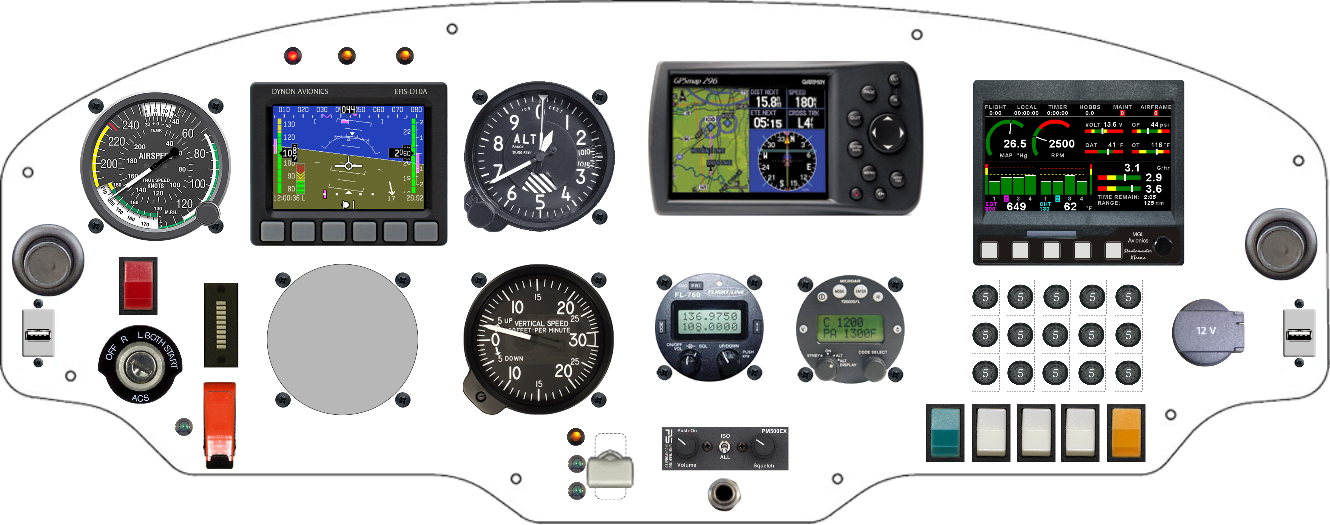

Recent J400 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a J400 panel
The equipment placed most often across the 13 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GTR 200 | 4 | 31% |
| Falcon Gauge Airspeed Indicator 3" | 4 | 31% |
| Garmin International, Inc GPS 175 | 3 | 23% |
| Sensa Technologies 7277 | 3 | 23% |
| Falcon Gauge Vertical Speed Indicator | 3 | 23% |
| Falcon Gauge Altimeter 3" | 3 | 23% |
| Garmin International, Inc GPSMAP 296 | 2 | 15% |
| Garmin International, Inc G3X Touch | 2 | 15% |
From layout to fabricated panel
Lay out the J400 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
