John Dyke
John Dyke Delta instrument panel

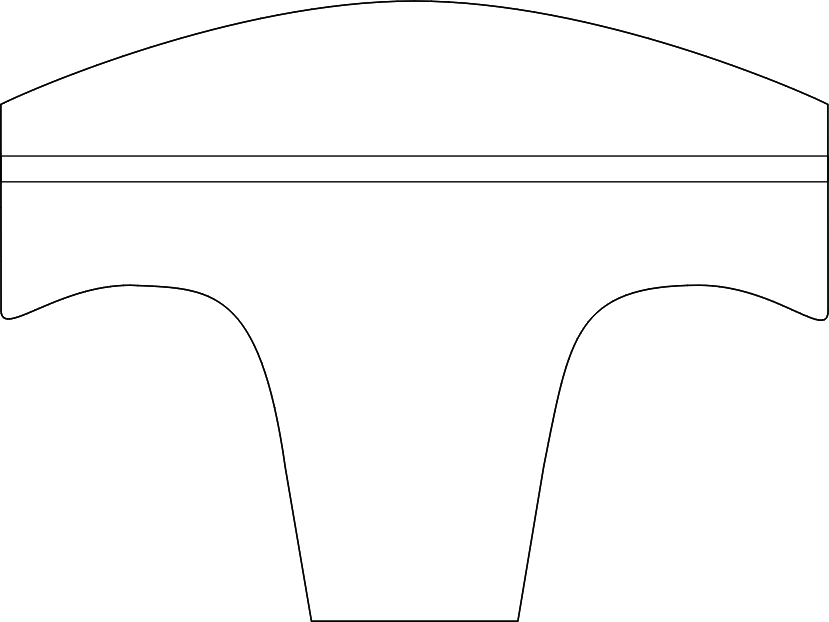

The Delta panel template at the panel's dimensions, 32 × 23.99 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.

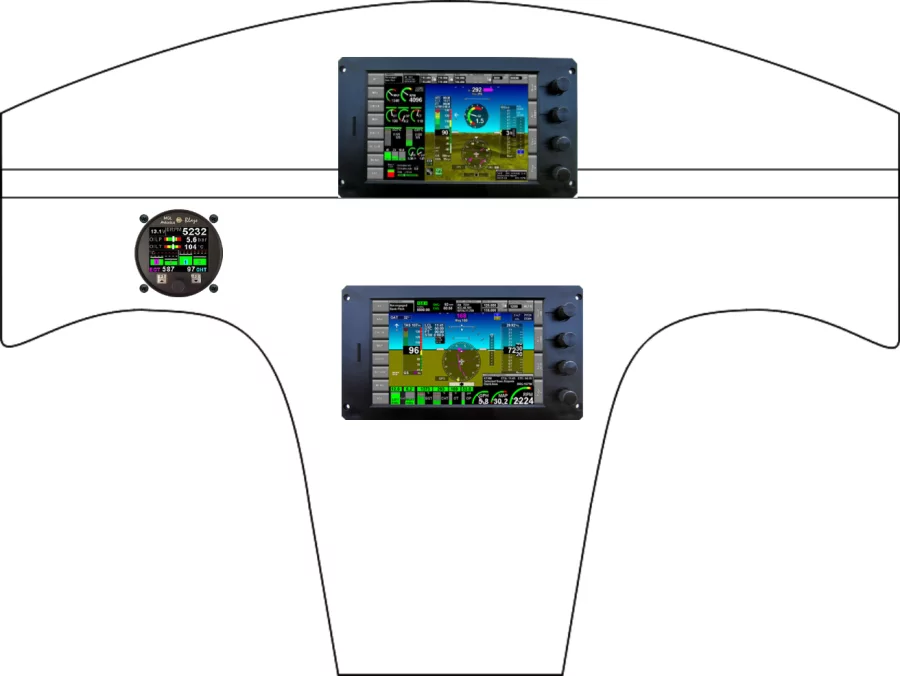

12 panels laid out on this template
Recent Delta panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Delta panel
The equipment placed most often across the 12 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| UMA Instruments UMA Tach | 3 | 25% |
| Falcon Gauge Airspeed Indicator 2" | 3 | 25% |
| Falcon Gauge Vertical Speed Indicator | 2 | 17% |
| Garmin International, Inc GTN 650Xi | 2 | 17% |
| Garmin International, Inc G5 | 2 | 17% |
| Falcon Gauge Altimeter 2" | 2 | 17% |
| Composite Design Standard Power Panel | 2 | 17% |
| ACK Technologies ELT | 1 | 8% |
From layout to fabricated panel
Lay out the Delta panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
