Maule Air Maule instrument panel
The Maule panel template at the panel's dimensions, 43.06 × 21.53 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
35 panels laid out on this template

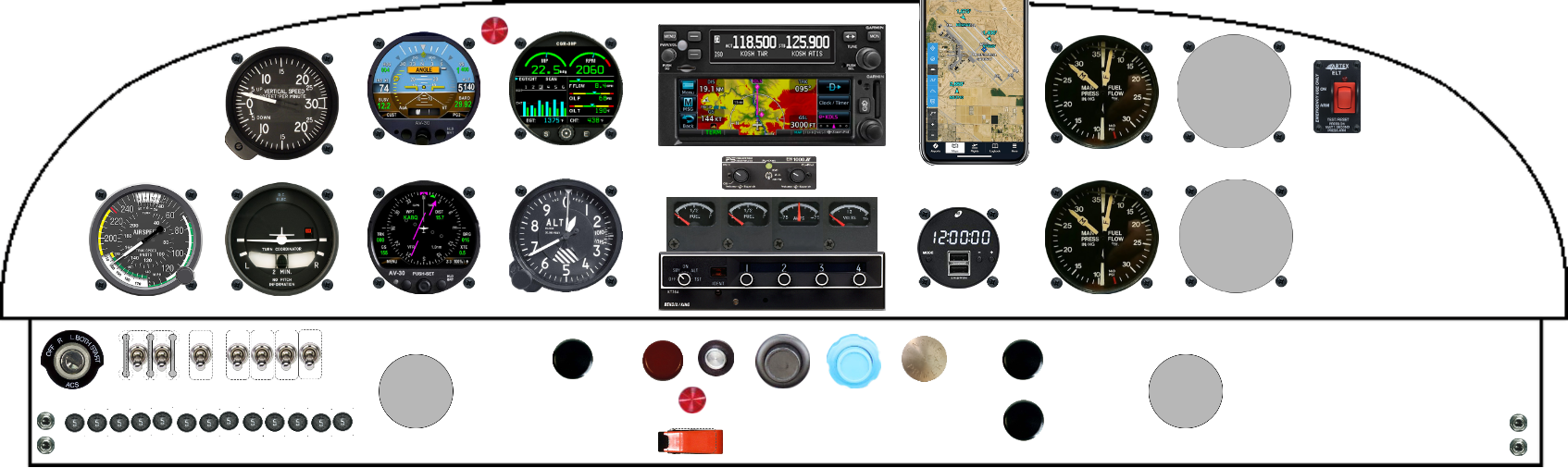

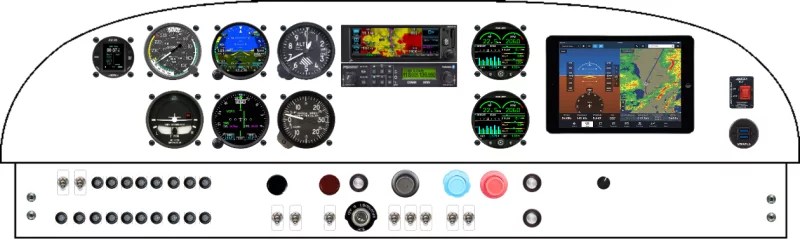

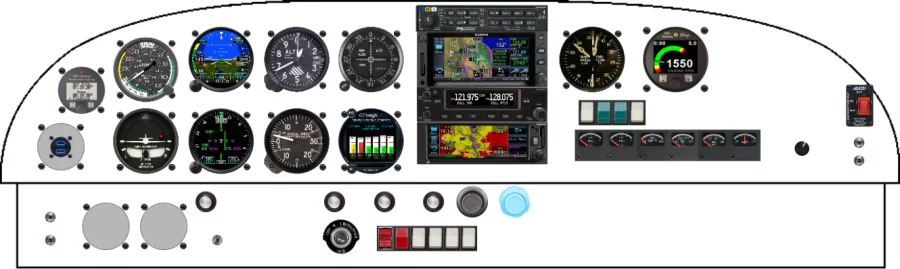

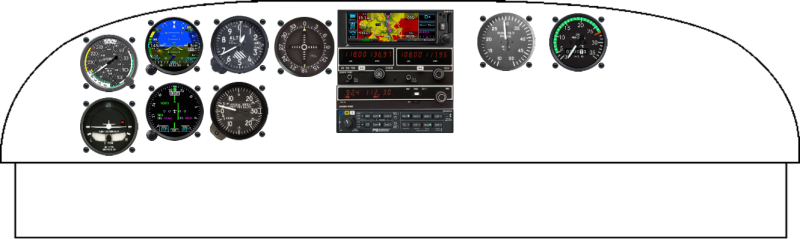

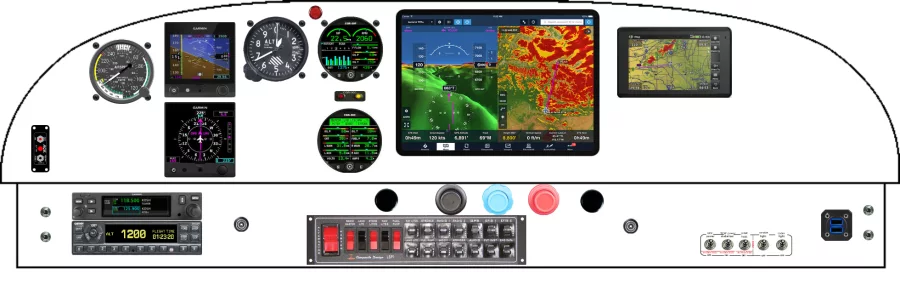

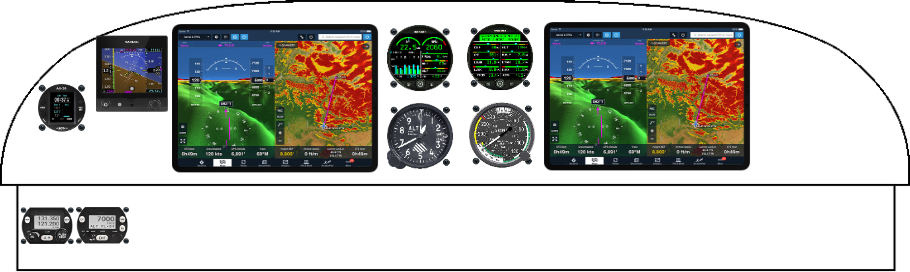

Recent Maule panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Maule panel
The equipment placed most often across the 35 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 18 | 50% |
| Falcon Gauge Altimeter 3" | 16 | 44% |
| Falcon Gauge Vertical Speed Indicator | 14 | 39% |
| Garmin International, Inc G5 | 9 | 25% |
| Garmin International, Inc GI 275 ADI | 8 | 22% |
| Garmin International, Inc GNX 375 | 8 | 22% |
| Sensa Technologies 7277 | 7 | 19% |
| Garmin International, Inc GI 275 HSI | 6 | 17% |
From layout to fabricated panel
Lay out the Maule panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
