Murphy Aircraft Super Rebel instrument panel

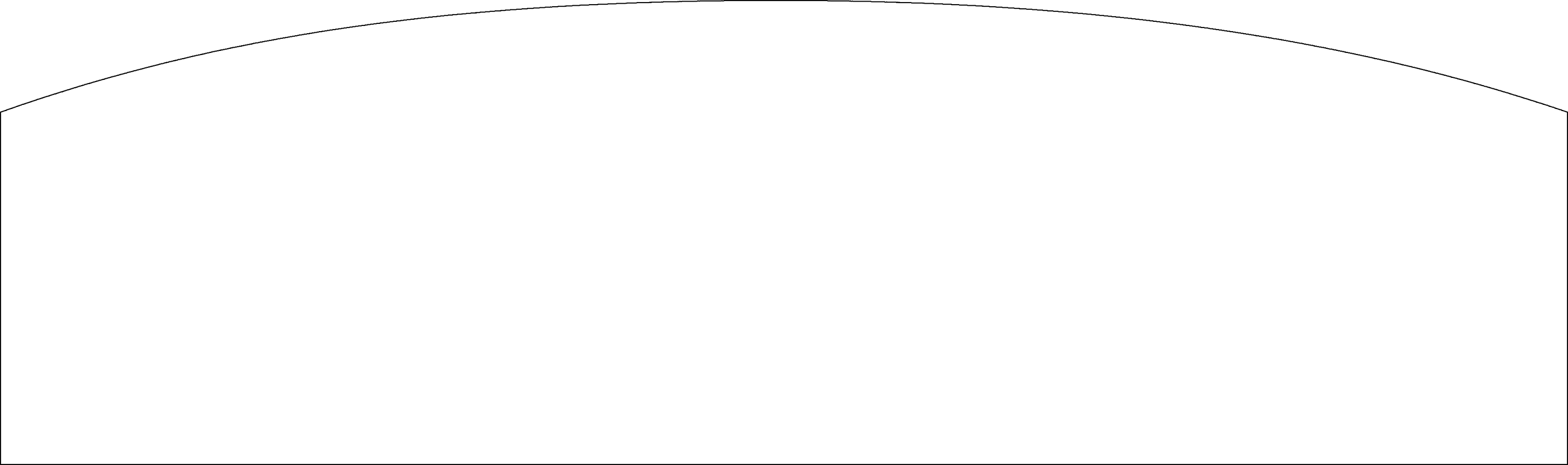

The Super Rebel panel template at the panel's dimensions, 42 × 12.44 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
29 panels laid out on this template

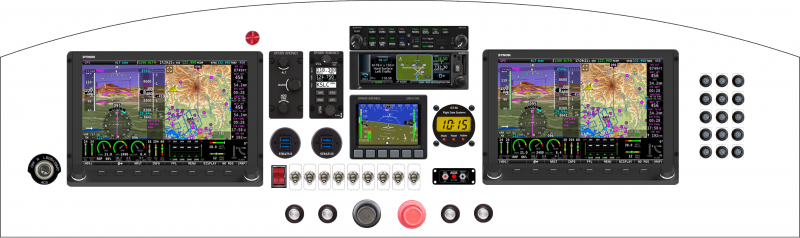

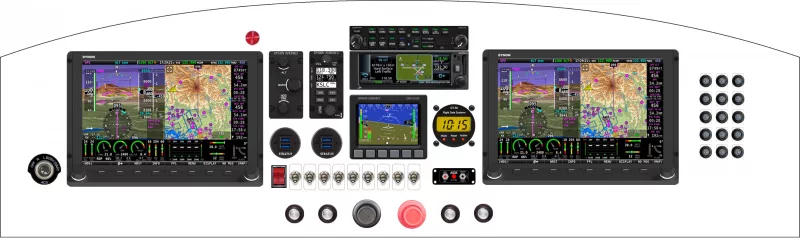

Recent Super Rebel panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Super Rebel panel
The equipment placed most often across the 29 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G3X Touch | 7 | 24% |
| Garmin International, Inc G5 | 7 | 24% |
| The Ray Allen Company Trim Indicator | 6 | 21% |
| Attitude Indicator | 5 | 17% |
| Garmin International, Inc GNC 255 | 4 | 14% |
| ACK Technologies ELT | 4 | 14% |
| Falcon Gauge Altimeter 3" | 4 | 14% |
| Falcon Gauge Vertical Speed Indicator | 4 | 14% |
Other Murphy Aircraft panels
From layout to fabricated panel
Lay out the Super Rebel panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
