Mustang Aeronautics Mustang II instrument panel
The Mustang II panel template at the panel's dimensions, 40 × 10.65 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
65 panels laid out on this template

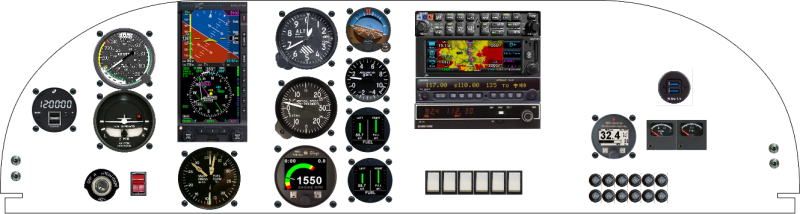

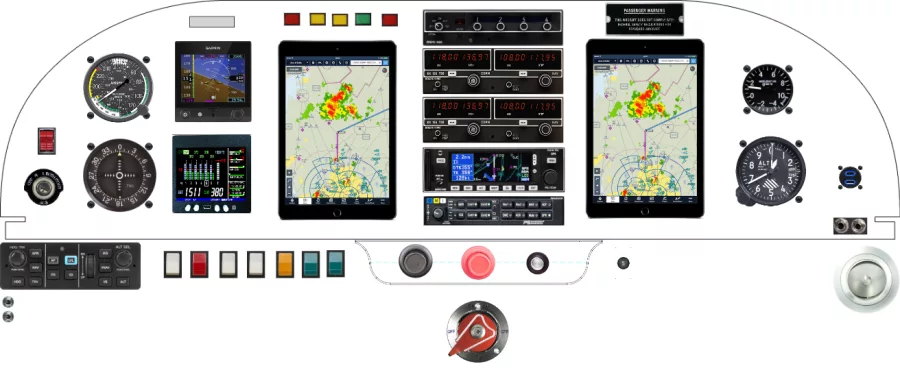

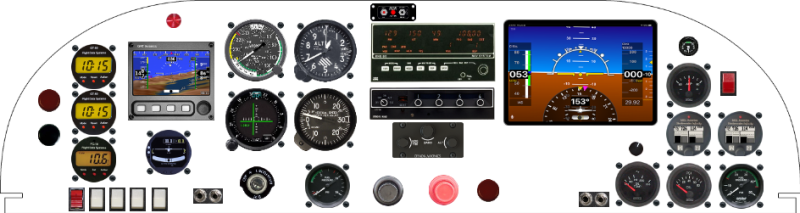

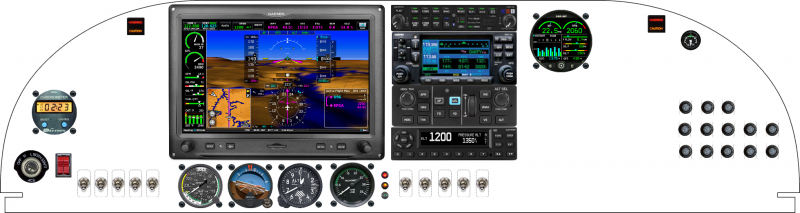

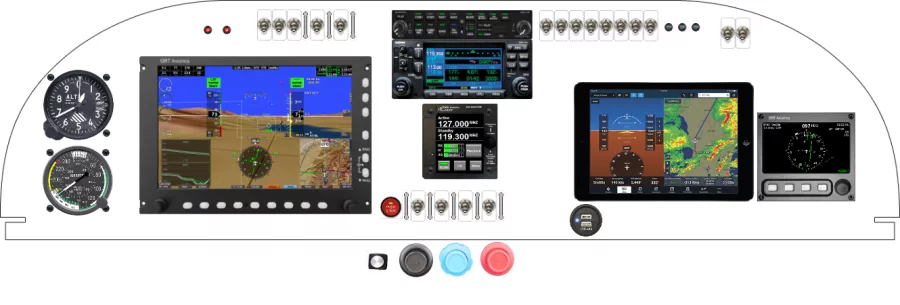

Recent Mustang II panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Mustang II panel
The equipment placed most often across the 65 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 22 | 34% |
| Falcon Gauge Altimeter 3" | 19 | 29% |
| Garmin International, Inc G5 | 16 | 25% |
| Falcon Gauge Vertical Speed Indicator | 14 | 22% |
| Sensa Technologies 7277 | 13 | 20% |
| MGL Avionics (Rainbow Aircraft, Inc) Razor VHF Controller | 12 | 18% |
| Apple iPad Mini 4 | 10 | 15% |
| Garmin International, Inc GTX 335 | 9 | 14% |
Other Mustang Aeronautics panels
From layout to fabricated panel
Lay out the Mustang II panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
