Nanchang / Hongdu CJ-6 instrument panel

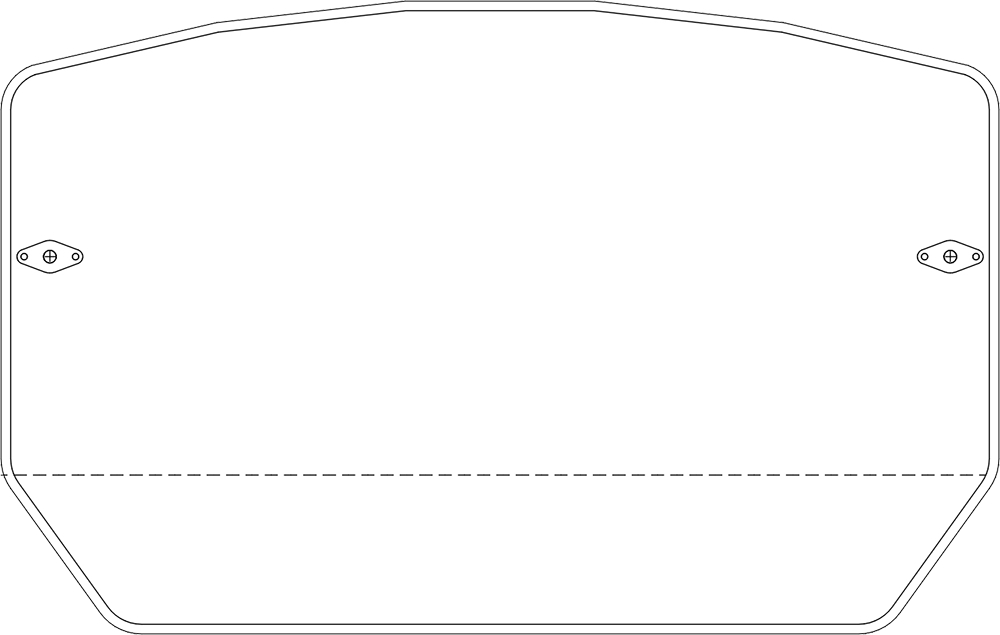

The CJ-6 panel template at the panel's dimensions, 19.45 × 12.4 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
11 panels laid out on these 2 templates
Also written CJ6 or CJ 6.
2 templates for the CJ-6

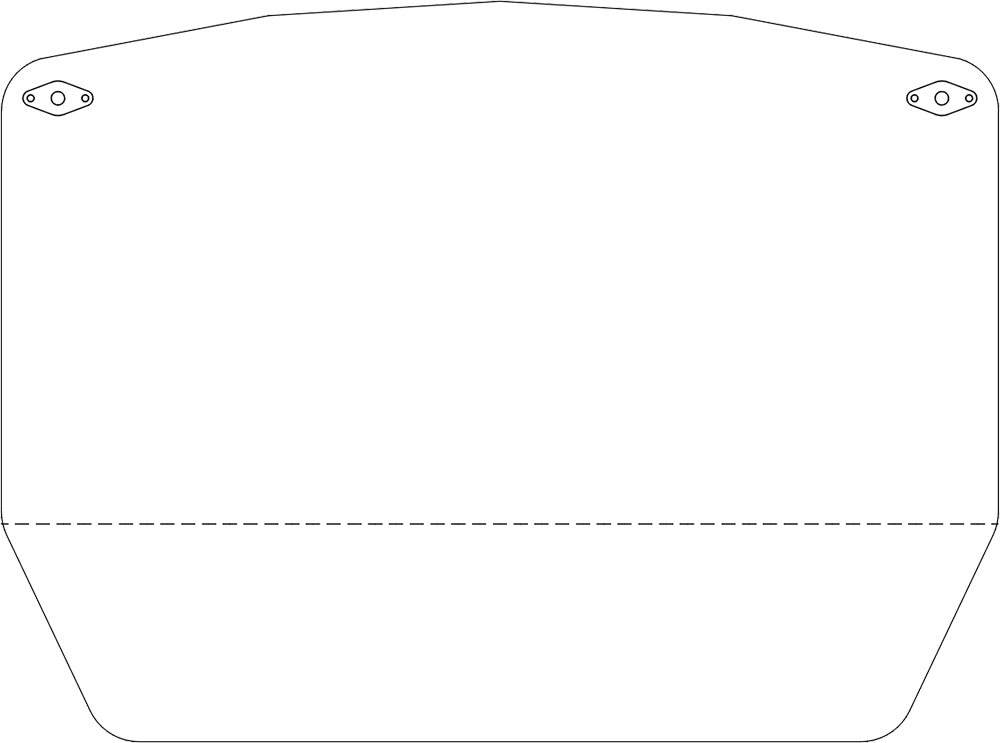

Nanchang / Hongdu · The is a Chinese basic trainer designed and built by the Factory (now Aviation) for use by the People's Liberation Army Air Force
Start a panel layout on this template
Nanchang / Hongdu · The is a Chinese basic trainer designed and built by the Factory (now Aviation) for use by the People's Liberation Army Air Force
Start a panel layout on this template
What builders put in a CJ-6 panel
The equipment placed most often across the 11 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Aero Safety Systems AH501 | 2 | 18% |
| Garmin International, Inc G3X Touch | 2 | 18% |
| Falcon Gauge Vertical Speed Indicator | 2 | 18% |
| Attitude Indicator | 1 | 9% |
| Directional Gyro | 1 | 9% |
| Belite Aircraft Radiant Fuel Gauge | 1 | 9% |
| Bendix King KX 165 | 1 | 9% |
| Dynon Avionics EMS-D120 | 1 | 9% |
From layout to fabricated panel
Lay out the CJ-6 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
