Progressive Aerodyne Searey instrument panel

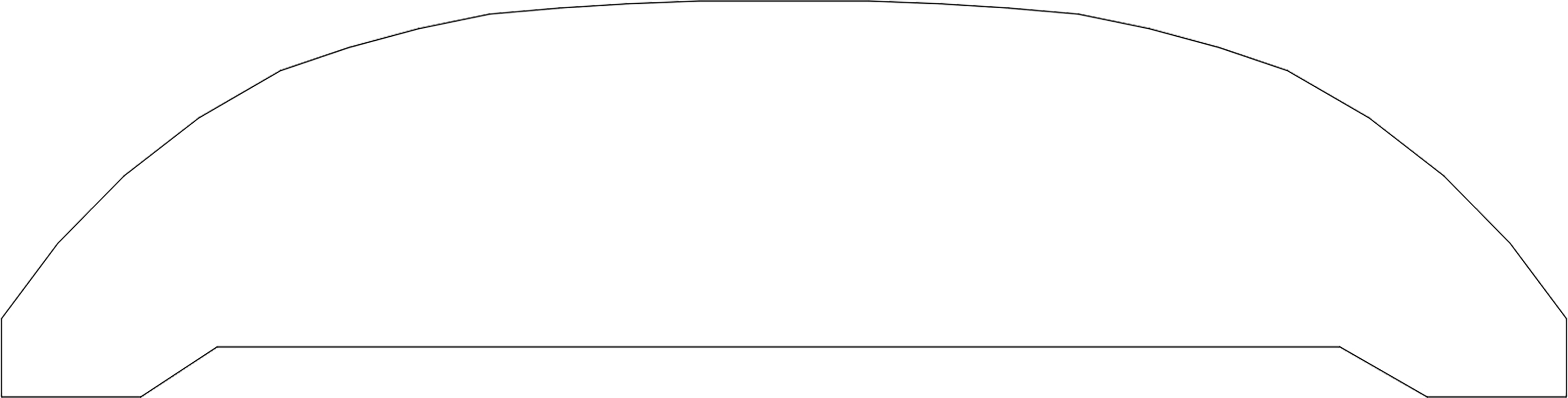

The Searey panel template at the panel's dimensions, 44.88 × 11.38 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
22 panels laid out on this template

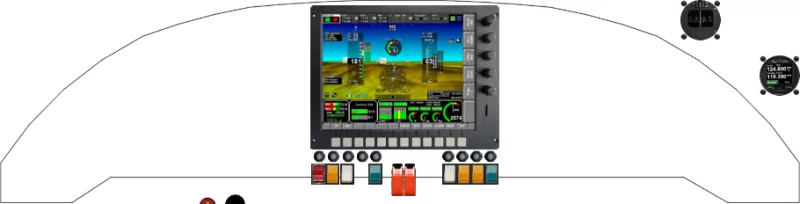

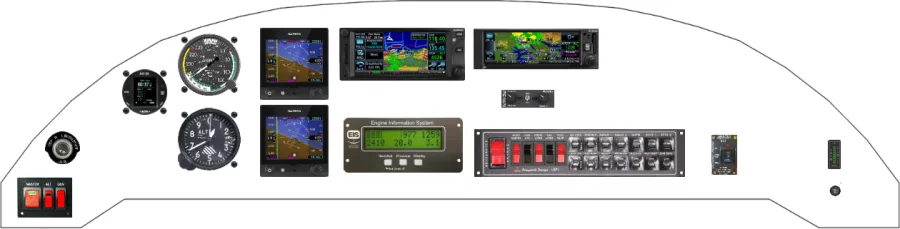

Recent Searey panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Searey panel
The equipment placed most often across the 22 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| MGL Avionics (Rainbow Aircraft, Inc) VHF Controller | 4 | 18% |
| Falcon Gauge Airspeed Indicator 3" | 4 | 18% |
| Sensa Technologies 7277 | 4 | 18% |
| Garmin International, Inc G3X Touch | 3 | 14% |
| Trig Avionics TT21/TT22 Transponder | 3 | 14% |
| Falcon Gauge Altimeter 3" | 3 | 14% |
| uAvionix Corporation AV-30 PFD | 3 | 14% |
| Aero Safety Systems AH501 | 2 | 9% |
From layout to fabricated panel
Lay out the Searey panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
