Rutan Long-Ez instrument panel

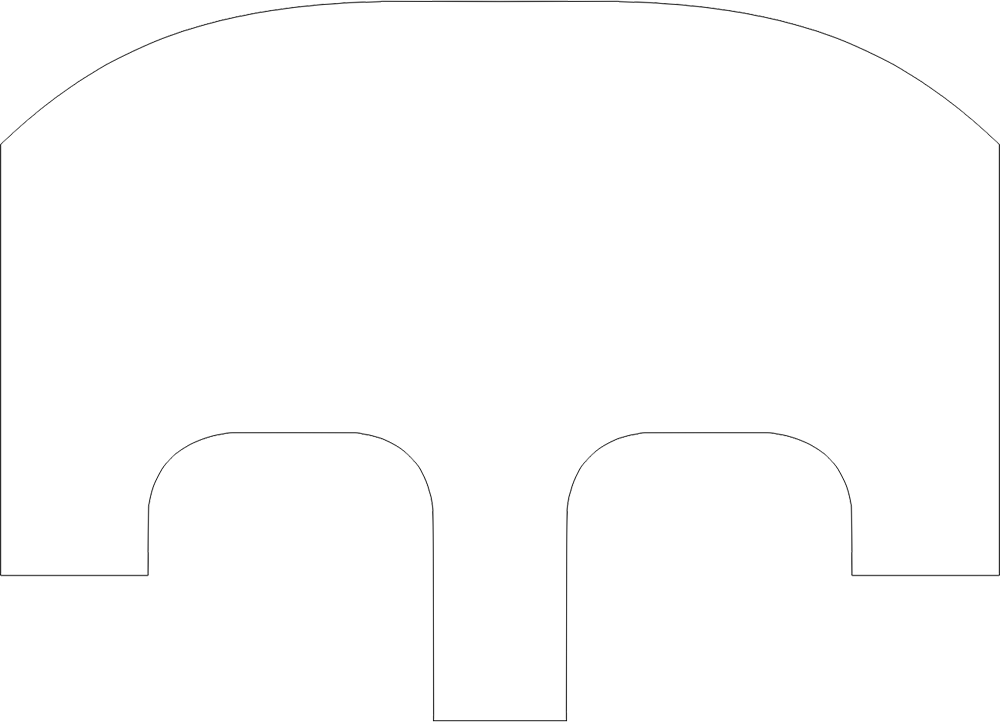

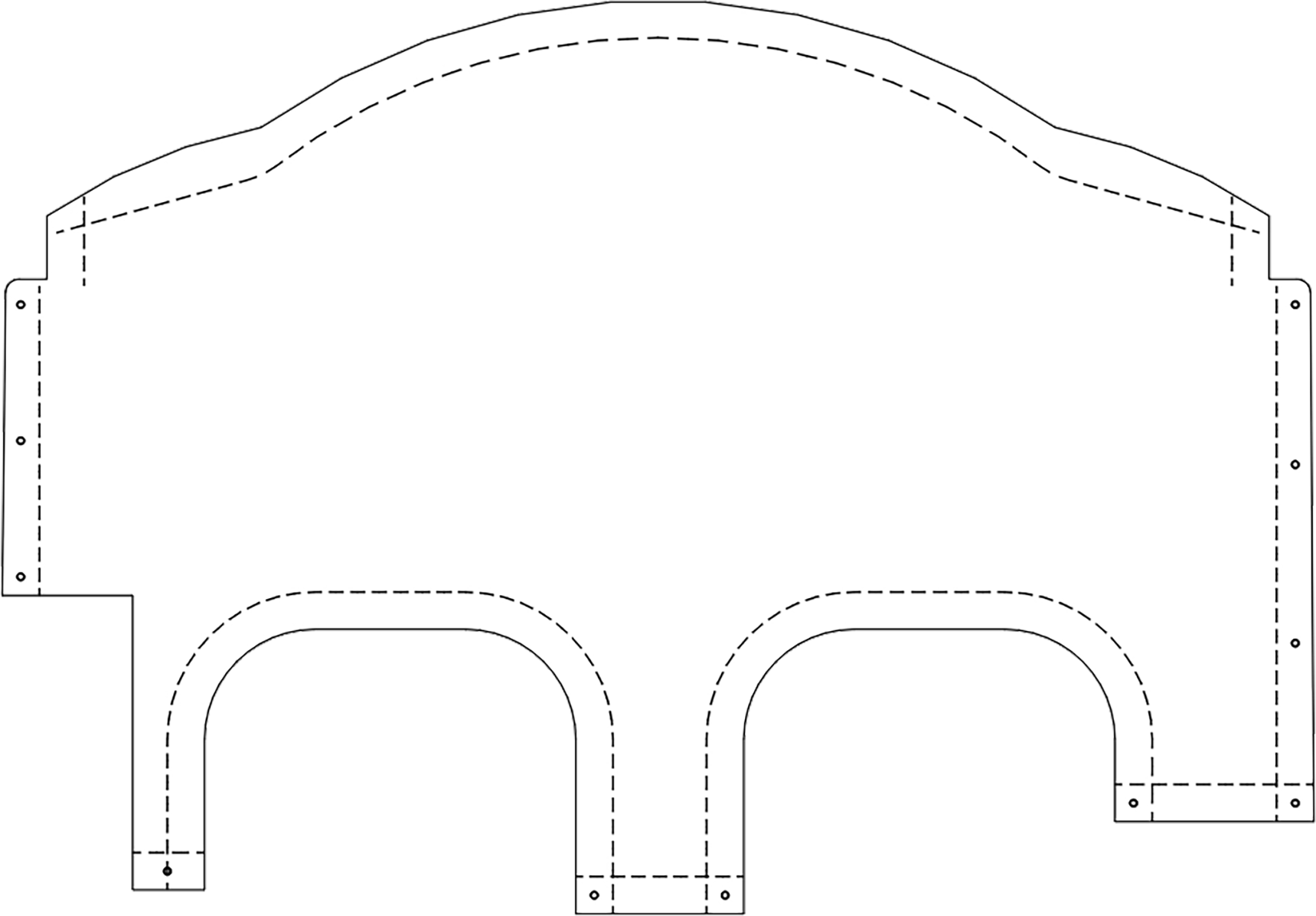

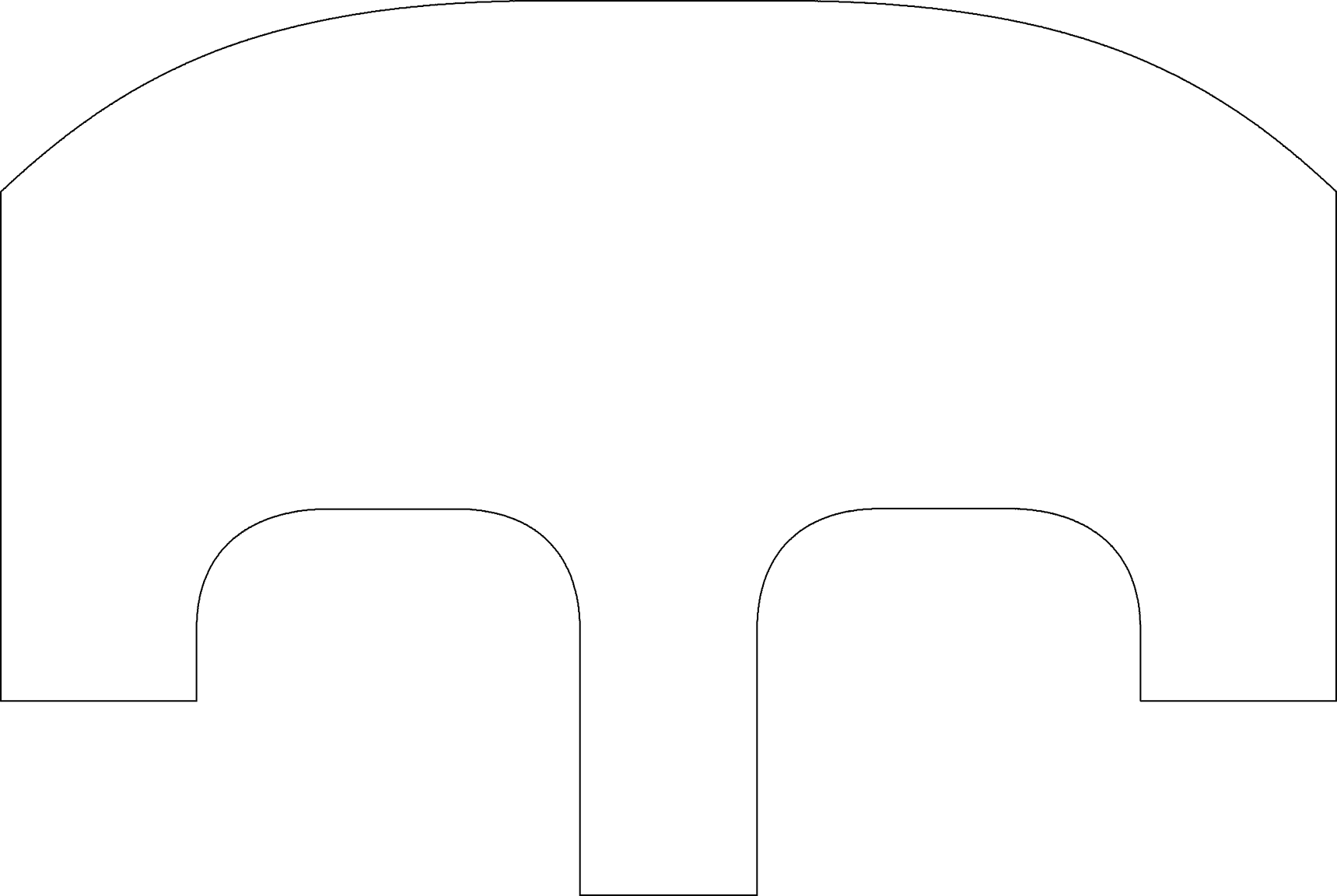

The Long-Ez panel template at the panel's dimensions, 23.88 × 16 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
191 panels laid out on these 3 templates
3 templates for the Long-Ez

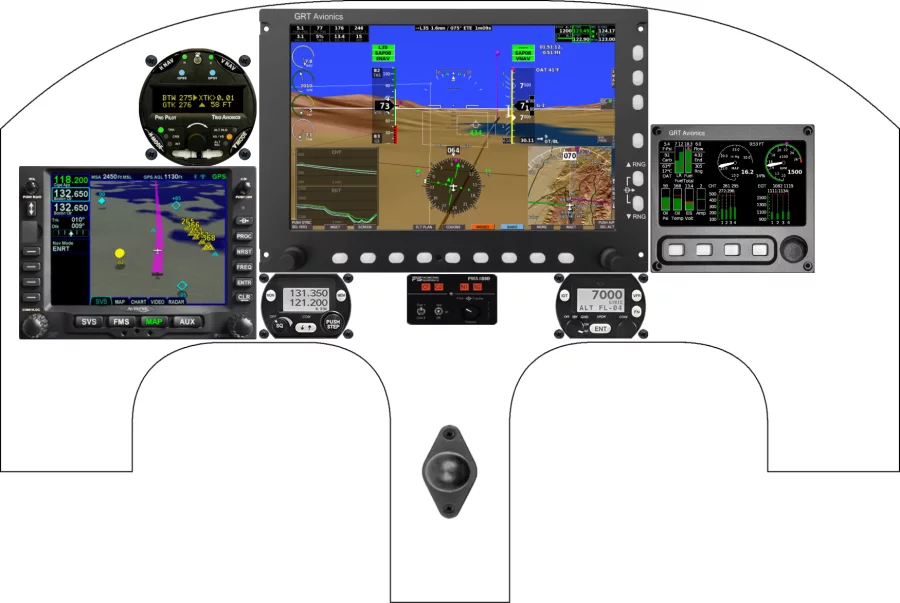

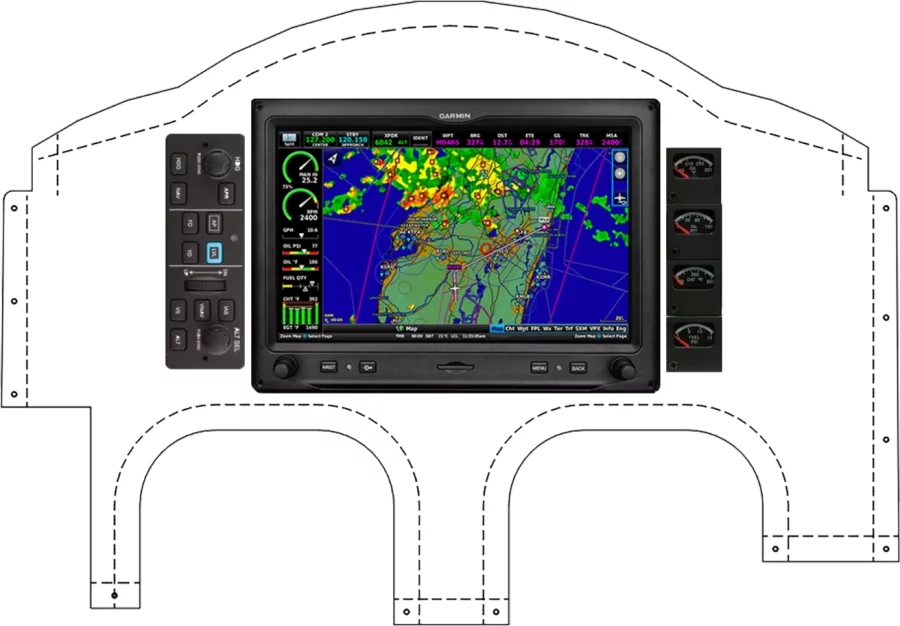

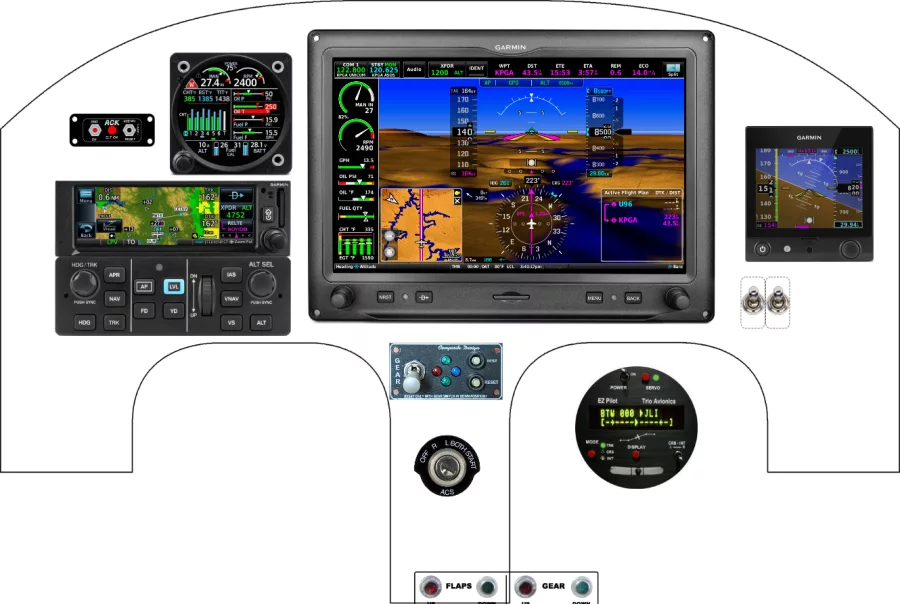

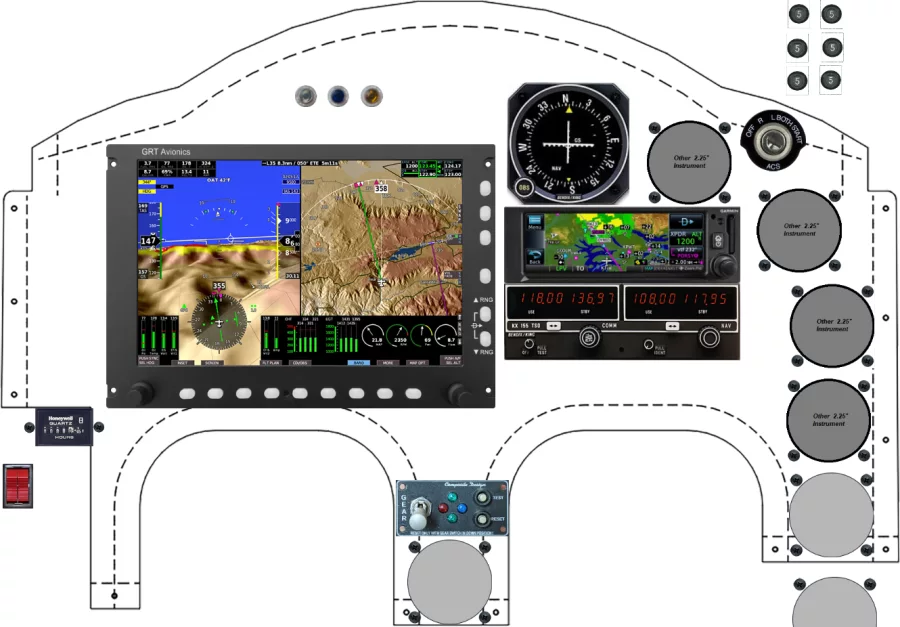

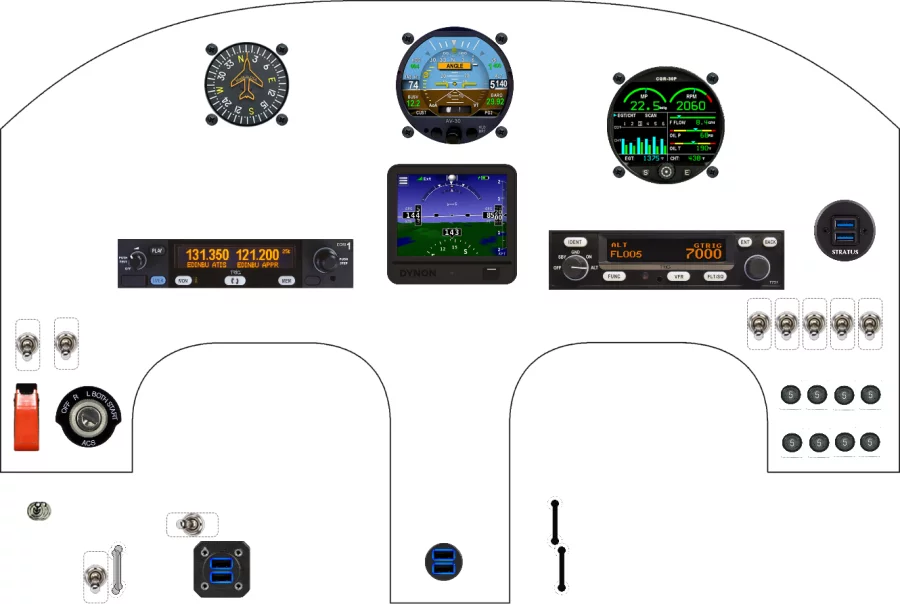

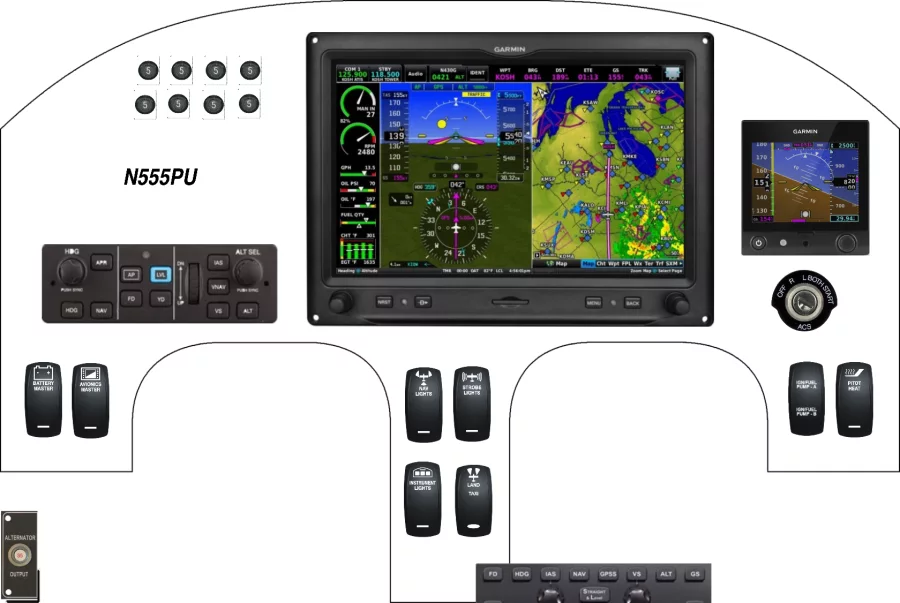

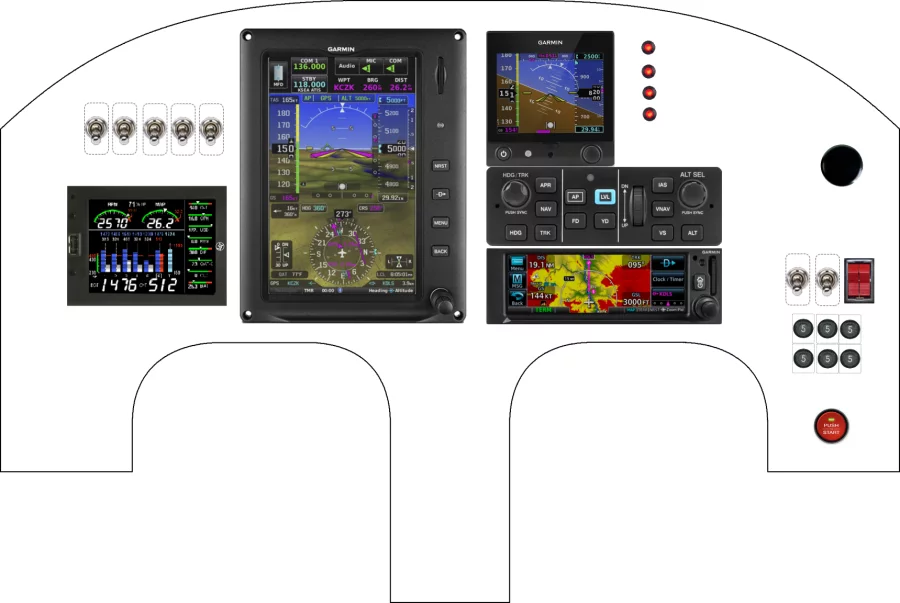

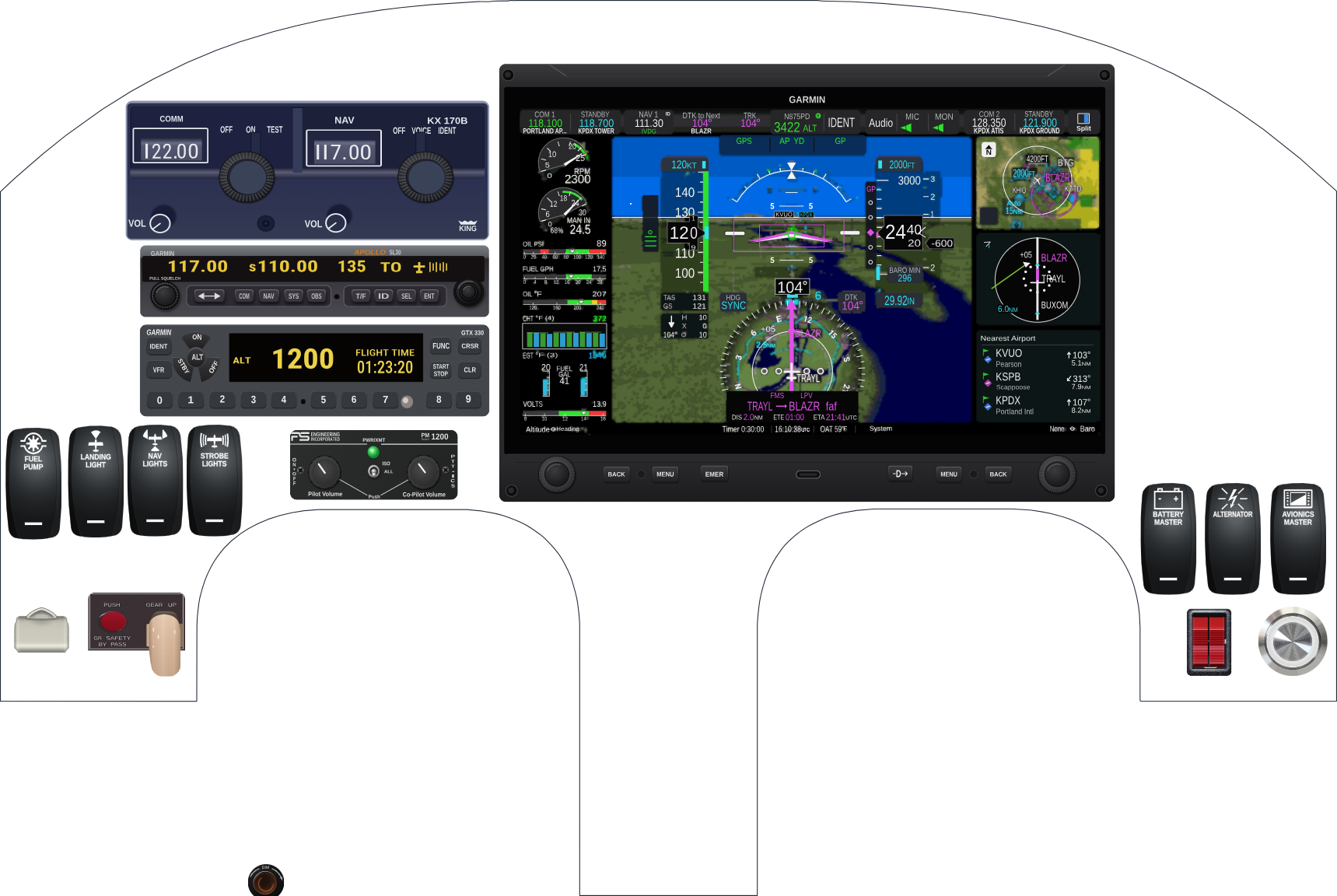

Recent Long-Ez panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Long-Ez panel
The equipment placed most often across the 191 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 51 | 27% |
| Garmin International, Inc G3X Touch | 38 | 20% |
| ACK Technologies ELT | 37 | 19% |
| Dynon Avionics VHF COM | 32 | 17% |
| Sensa Technologies 7277 | 31 | 16% |
| Falcon Gauge Airspeed Indicator 3" | 25 | 13% |
| Dynon Avionics Autopilot Panel | 24 | 13% |
| Falcon Gauge Altimeter 3" | 23 | 12% |
Other Rutan panels
From layout to fabricated panel
Lay out the Long-Ez panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
