Stinson Aircraft Company 108 instrument panel

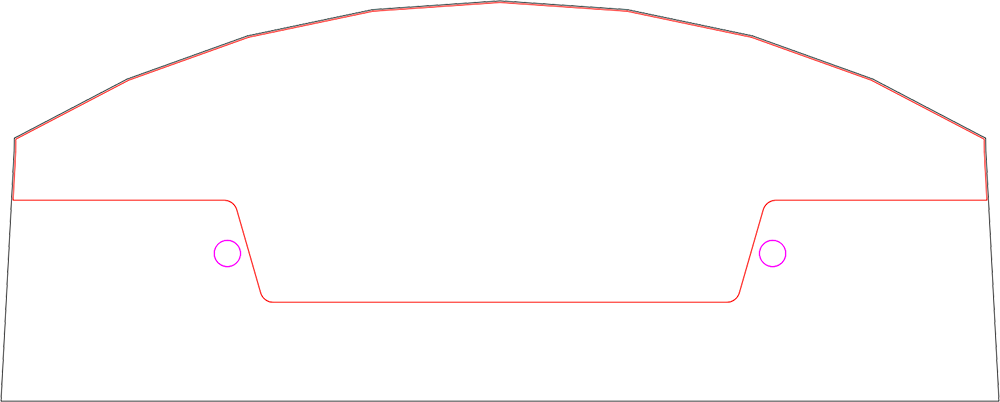

The 108 panel template at the panel's dimensions, 38 × 15.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
29 panels laid out on these 2 templates

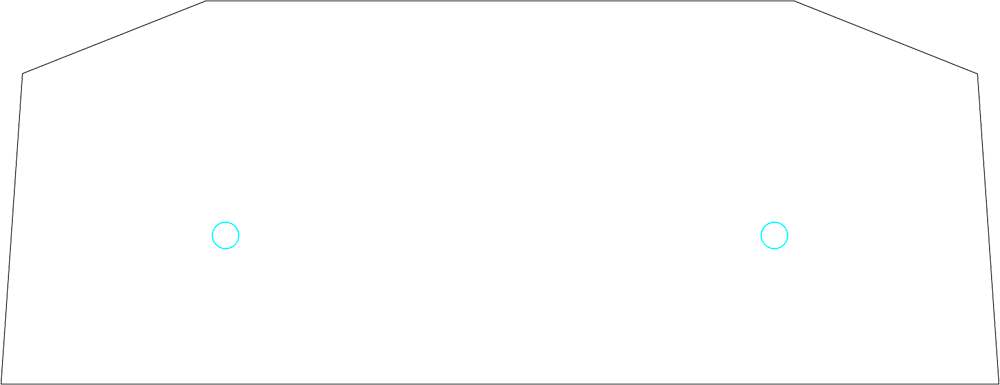

2 templates for the 108

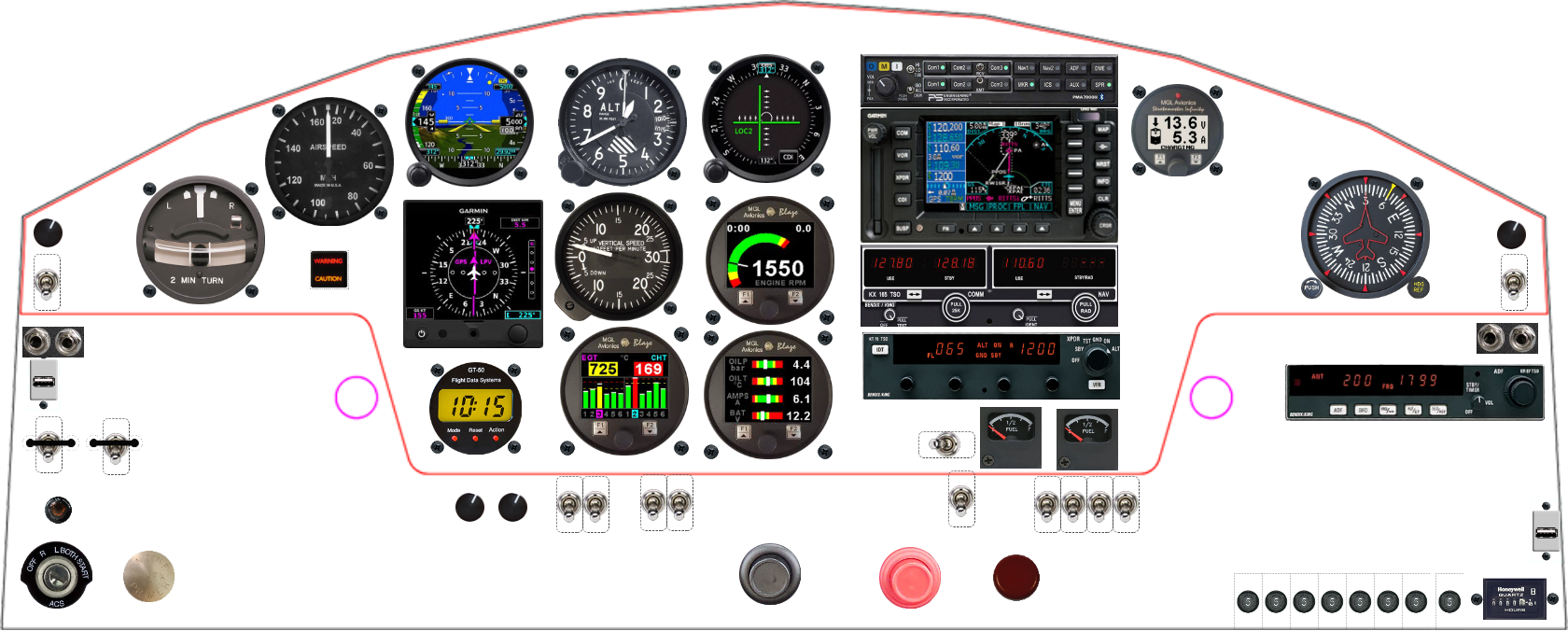

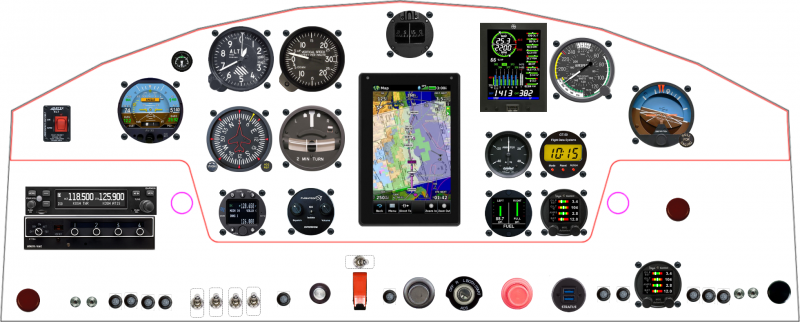

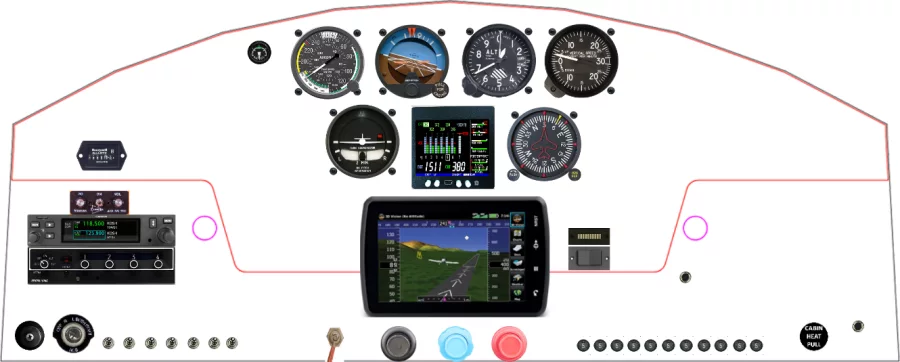

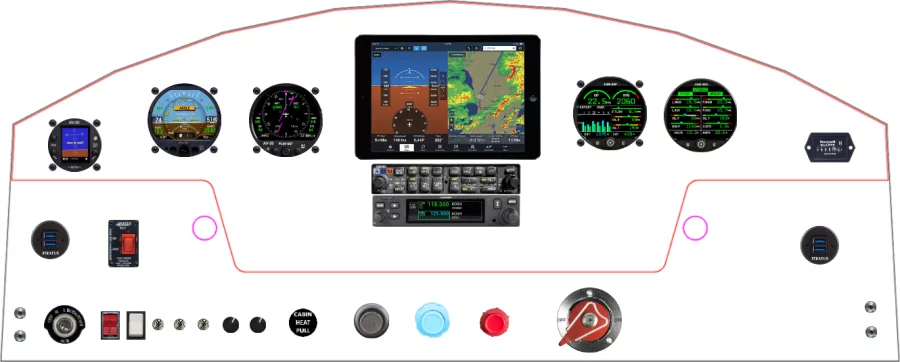

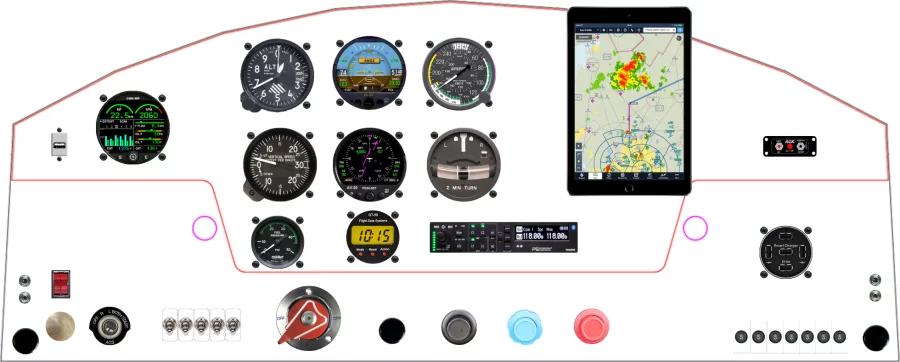

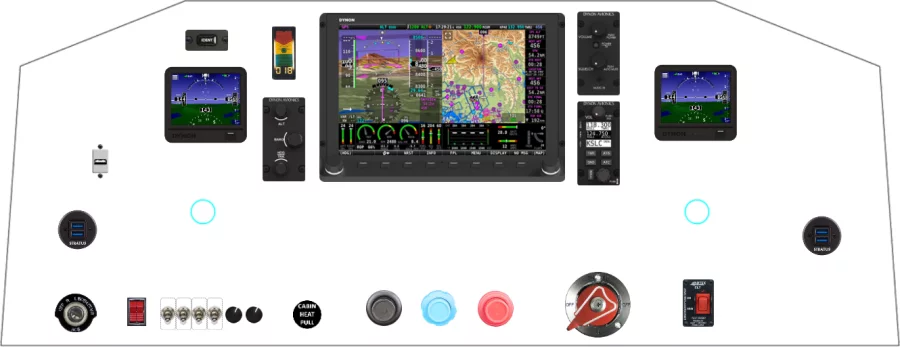

Recent 108 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 108 panel
The equipment placed most often across the 29 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 15 | 52% |
| Falcon Gauge Altimeter 3" | 12 | 41% |
| Attitude Indicator | 11 | 38% |
| Falcon Gauge Airspeed Indicator 3" | 11 | 38% |
| uAvionix Corporation AV-30 PFD | 7 | 24% |
| Directional Gyro | 6 | 21% |
| Sensa Technologies 7277 | 6 | 21% |
| ISSPRO Fuel Pressure Gauge | 5 | 17% |
From layout to fabricated panel
Lay out the 108 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
