Thorp T-18 instrument panel

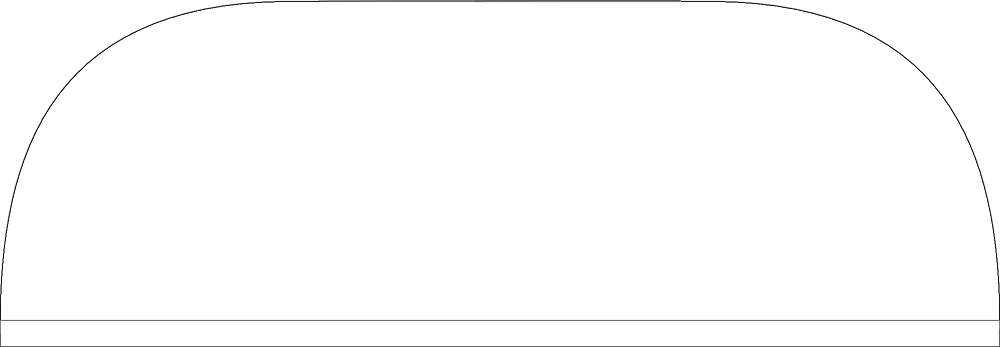

The T-18 panel template at the panel's dimensions, 32 × 11.75 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
60 panels laid out on this template
Also written T18 or T 18.

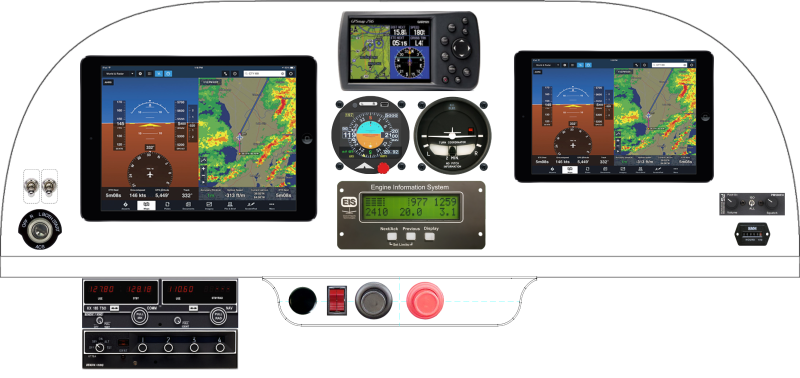

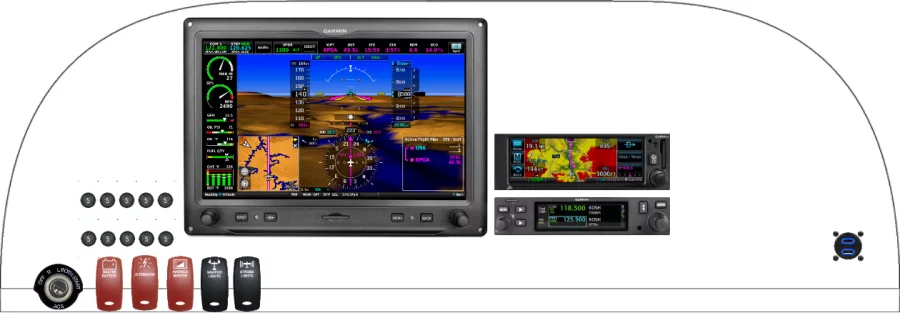

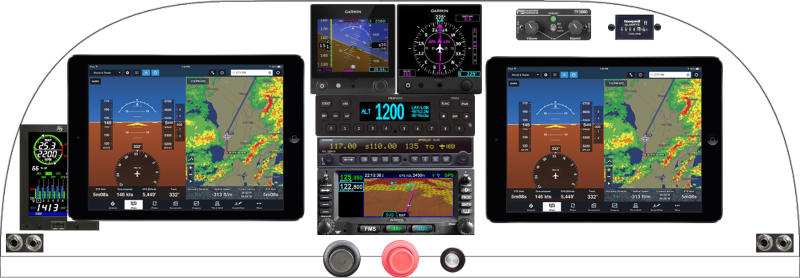

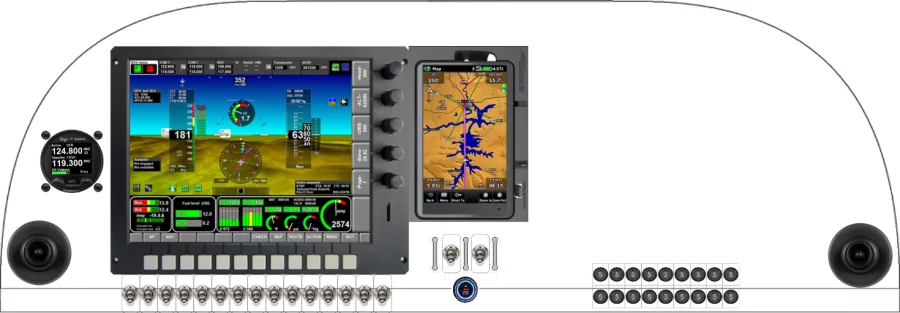

Recent T-18 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a T-18 panel
The equipment placed most often across the 60 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GNX 375 | 11 | 18% |
| Garmin International, Inc G3X Touch | 10 | 17% |
| Sensa Technologies 7277 | 9 | 15% |
| Garmin International, Inc G5 | 9 | 15% |
| Falcon Gauge Vertical Speed Indicator | 7 | 12% |
| Falcon Gauge Airspeed Indicator 3" | 7 | 12% |
| Falcon Gauge Altimeter 3" | 7 | 12% |
| Apple iPad Mini 4 | 7 | 12% |
From layout to fabricated panel
Lay out the T-18 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
