Titan Aircraft T-51 instrument panel

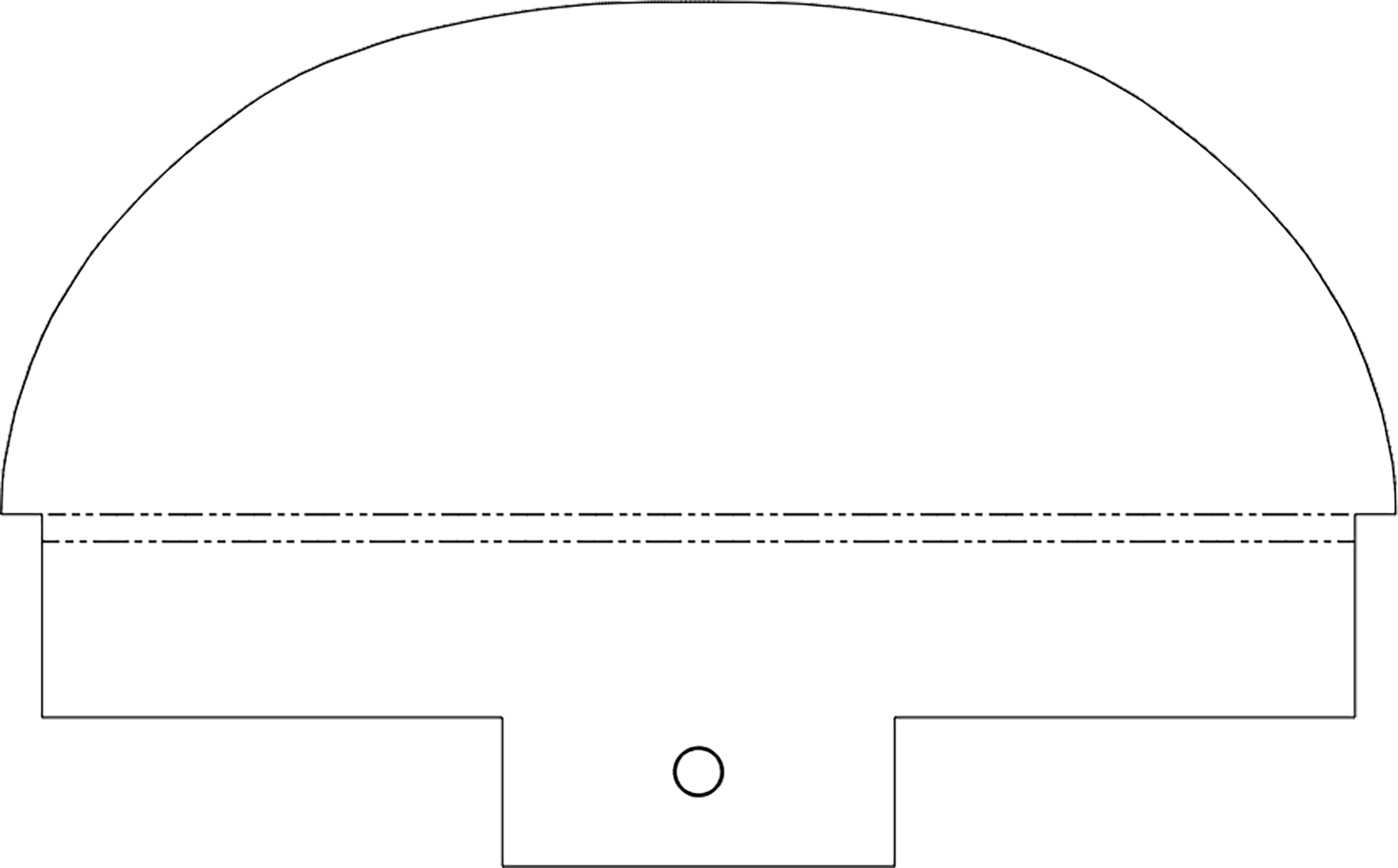

The T-51 panel template at the panel's dimensions, 25.75 × 15.97 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
40 panels laid out on this template
Also written T51 or T 51.

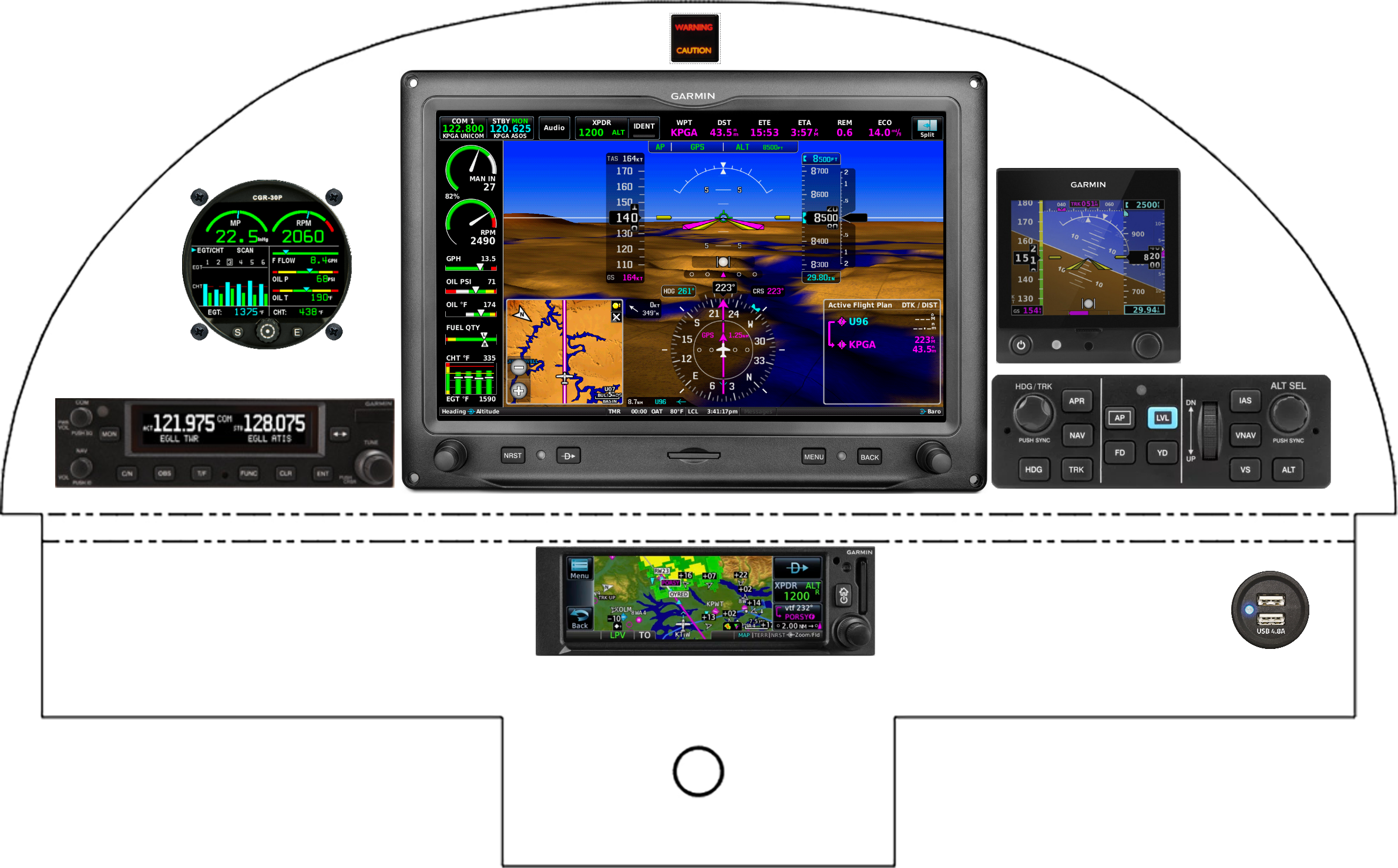

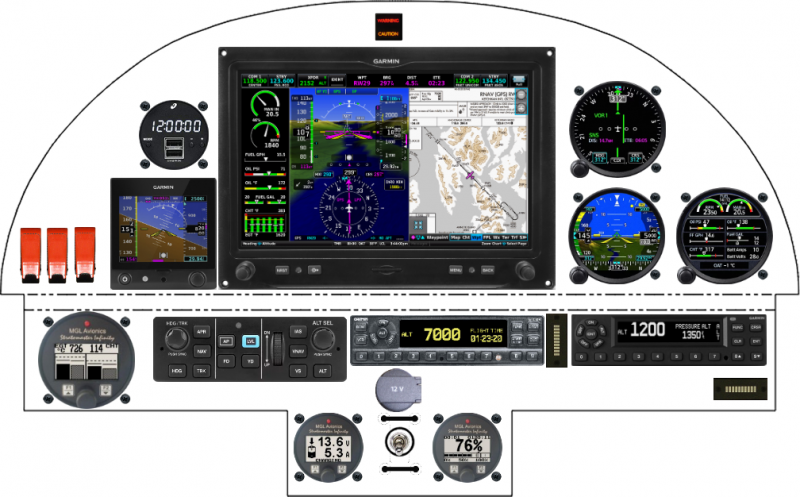

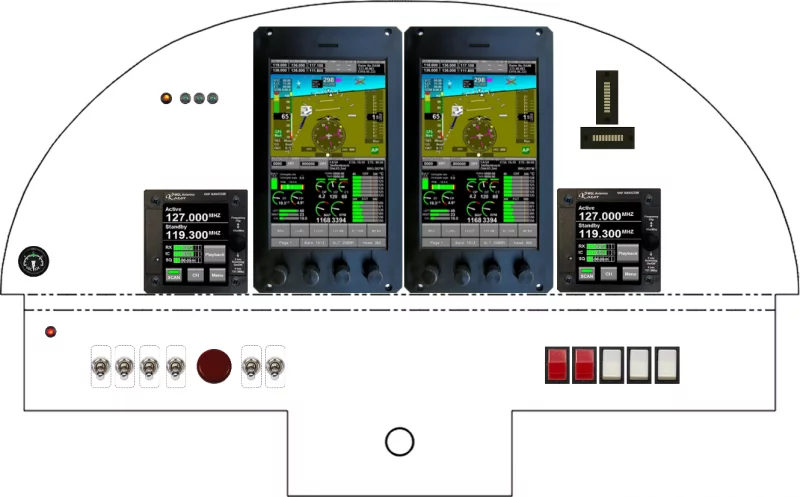

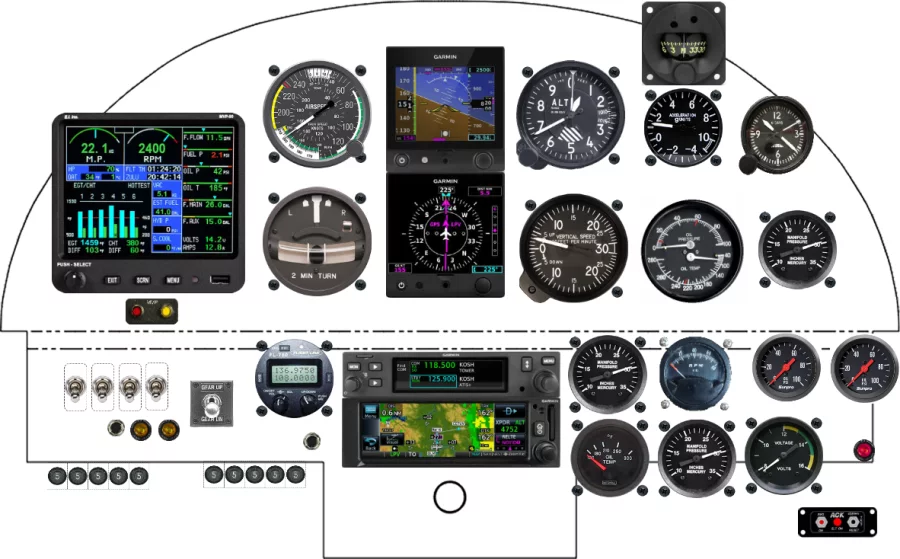

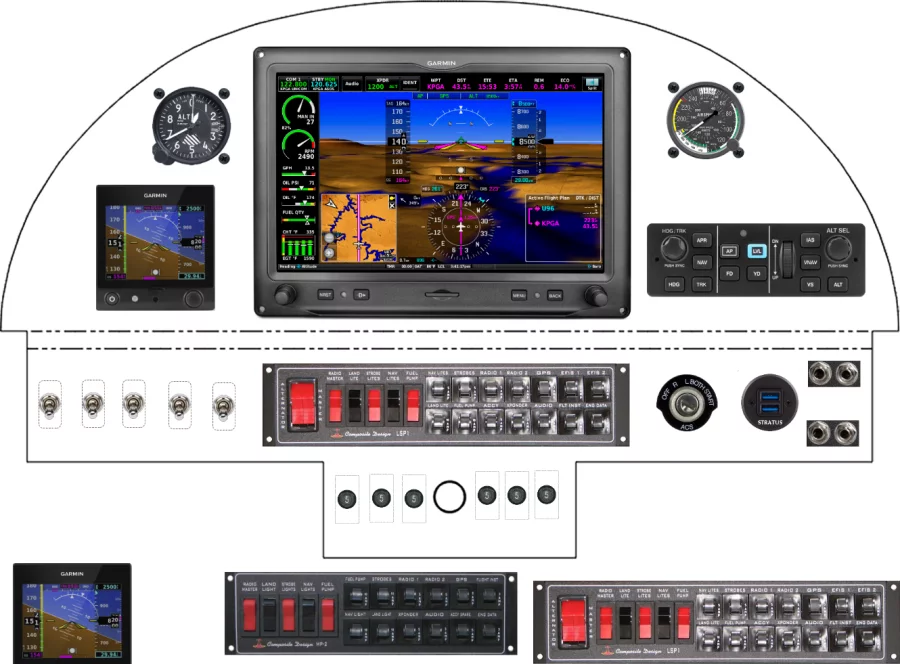

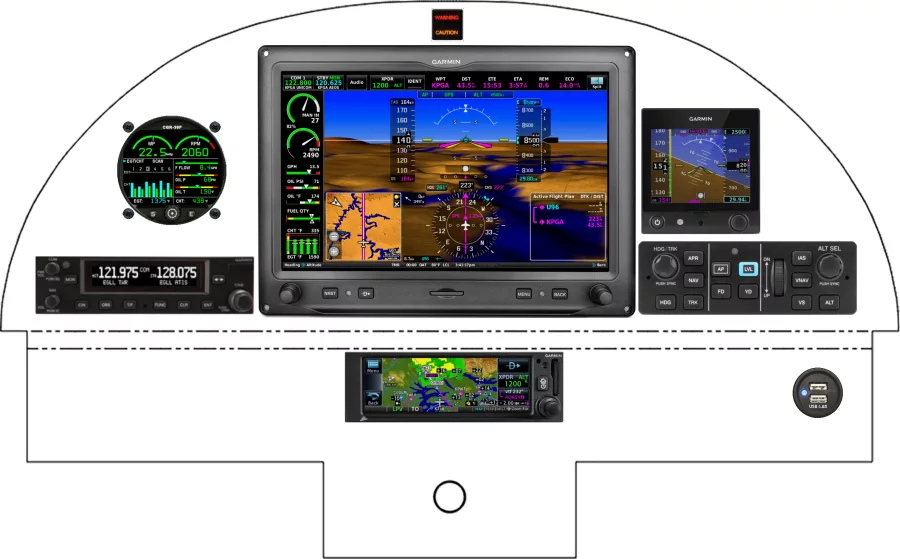

Recent T-51 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a T-51 panel
The equipment placed most often across the 40 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 11 | 28% |
| Garmin International, Inc G3X Touch | 9 | 23% |
| The Ray Allen Company Trim Indicator | 8 | 20% |
| Falcon Gauge Altimeter 3" | 7 | 18% |
| Falcon Gauge Airspeed Indicator 2" | 7 | 18% |
| Falcon Gauge Vertical Speed Indicator | 7 | 18% |
| Falcon Gauge Airspeed Indicator 3" | 6 | 15% |
| Dynon Avionics VHF COM | 6 | 15% |
From layout to fabricated panel
Lay out the T-51 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
