Viking Aircraft Dragonfly instrument panel
The Dragonfly panel template at the panel's dimensions, 43.88 × 15.24 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
10 panels laid out on this template

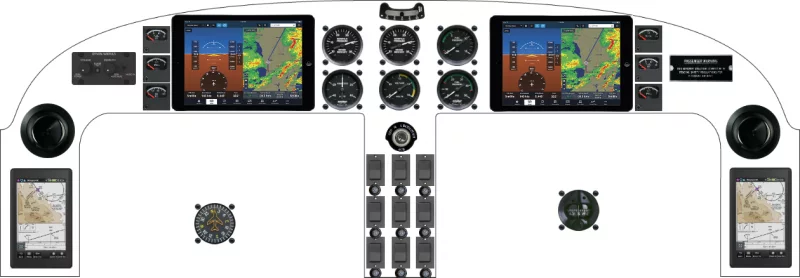

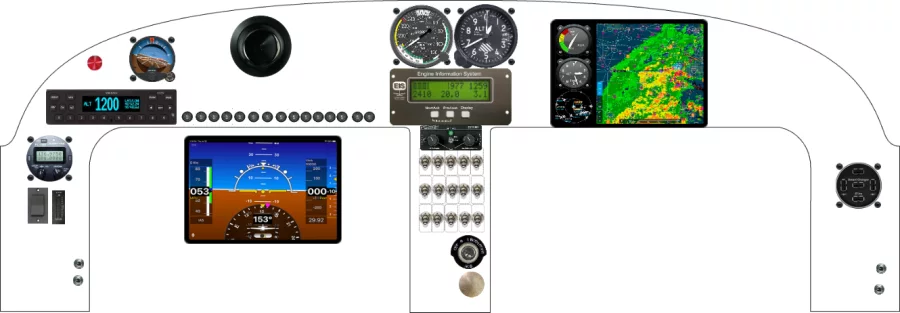

Recent Dragonfly panel designs
Exported by builders from the Panel Designer, newest first.
Dragonfly for sale
Selling a Dragonfly? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a Dragonfly panel
The equipment placed most often across the 10 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Sensa Technologies 7277 | 4 | 40% |
| Precision Aviation, Inc Vertical Card Compass | 3 | 30% |
| ForeFlight iPad Mini 6 | 3 | 30% |
| ISSPRO Manifold Pressure Gauge | 2 | 20% |
| ISSPRO Fuel Pressure Gaiuge | 2 | 20% |
| UMA Instruments UMA Tach | 2 | 20% |
| Falcon Gauge Airspeed Indicator 2" | 2 | 20% |
| Falcon Gauge Airspeed Indicator 3" | 2 | 20% |
From layout to fabricated panel
Lay out the Dragonfly panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
