Lancair International 2000 / FG instrument panel

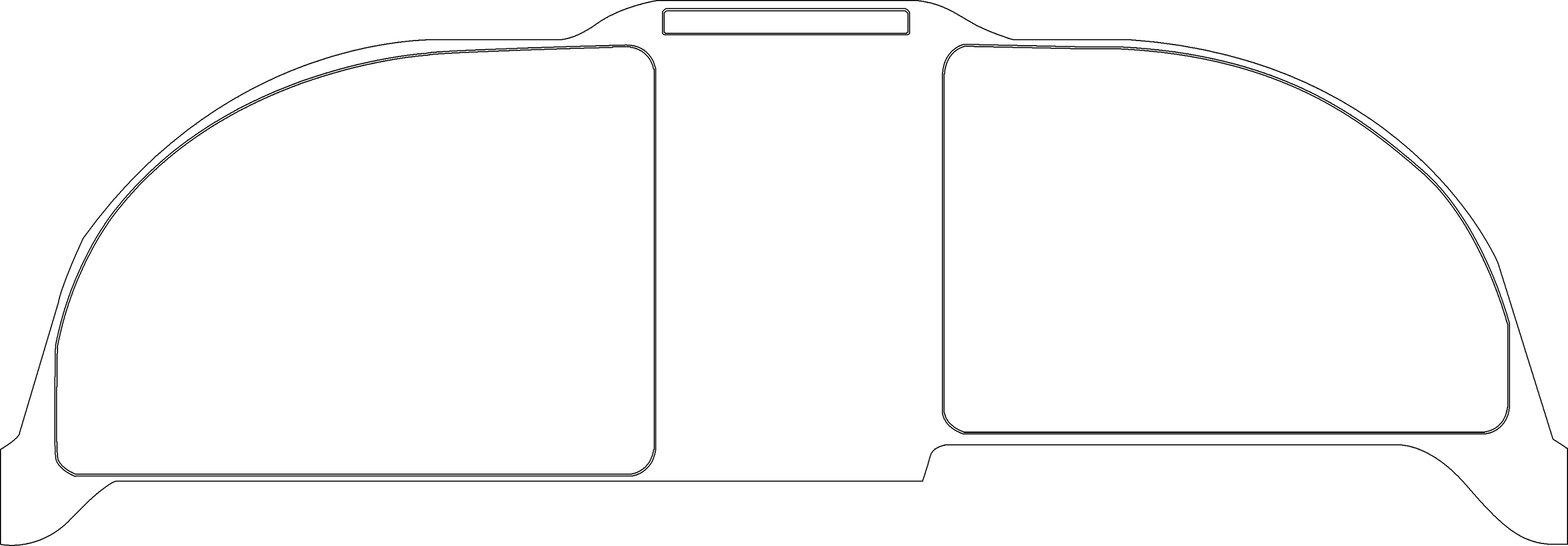

The 2000 / FG panel template at the panel's dimensions, 42.4 × 14.78 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
61 panels laid out on this template

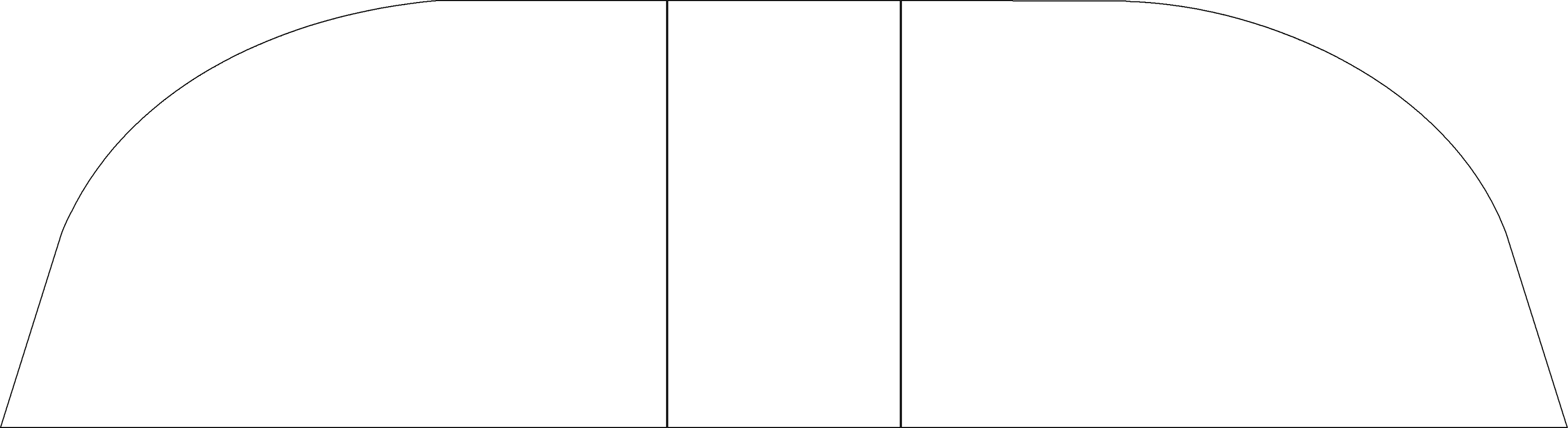

2 templates for the 2000 / FG
42.4 × 14.78 in
42.4 × 11.59 in

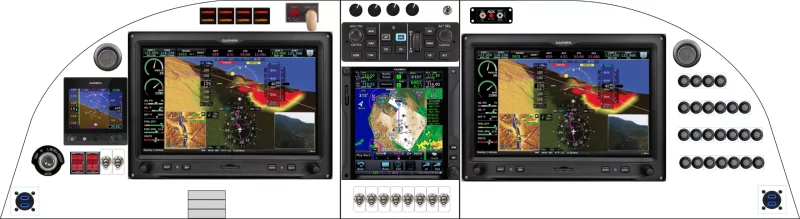

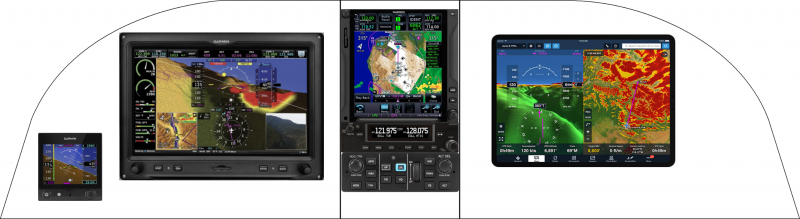

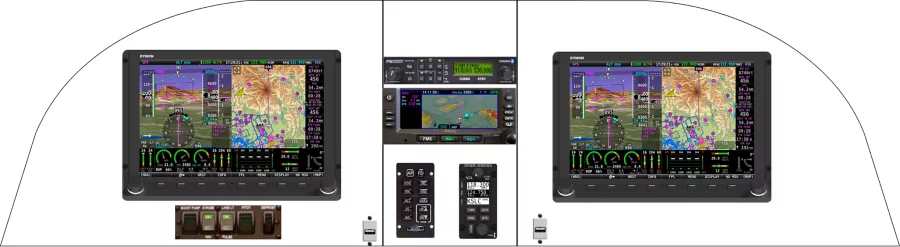

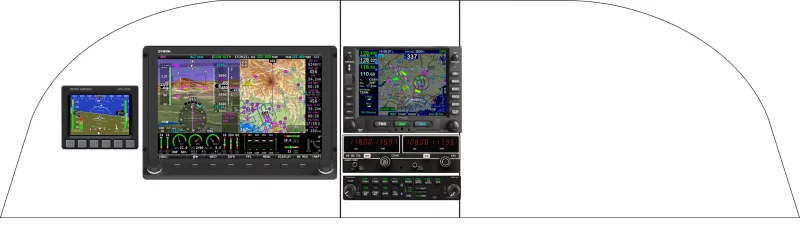

Recent 2000 / FG panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 2000 / FG panel
The equipment placed most often across the 61 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G3X Touch | 32 | 52% |
| Garmin International, Inc G5 | 26 | 43% |
| Garmin International, Inc GMC 507 | 23 | 38% |
| Garmin International, Inc GNX 375 | 15 | 25% |
| Garmin International, Inc GTN 750Xi | 13 | 21% |
| ACK Technologies ELT | 12 | 20% |
| Sensa Technologies 7277 | 12 | 20% |
| Garmin International, Inc GFC 500 | 10 | 16% |
Other Lancair International panels
From layout to fabricated panel
Lay out the 2000 / FG panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
