Lancair International ES / IV instrument panel

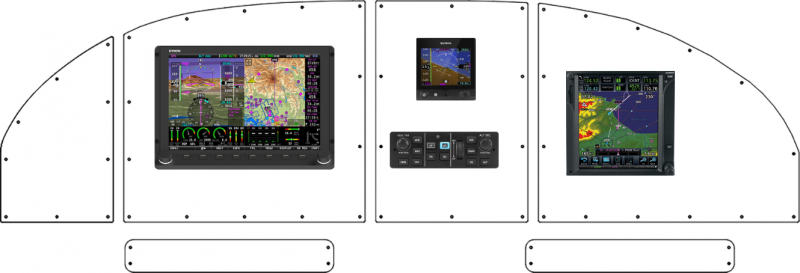

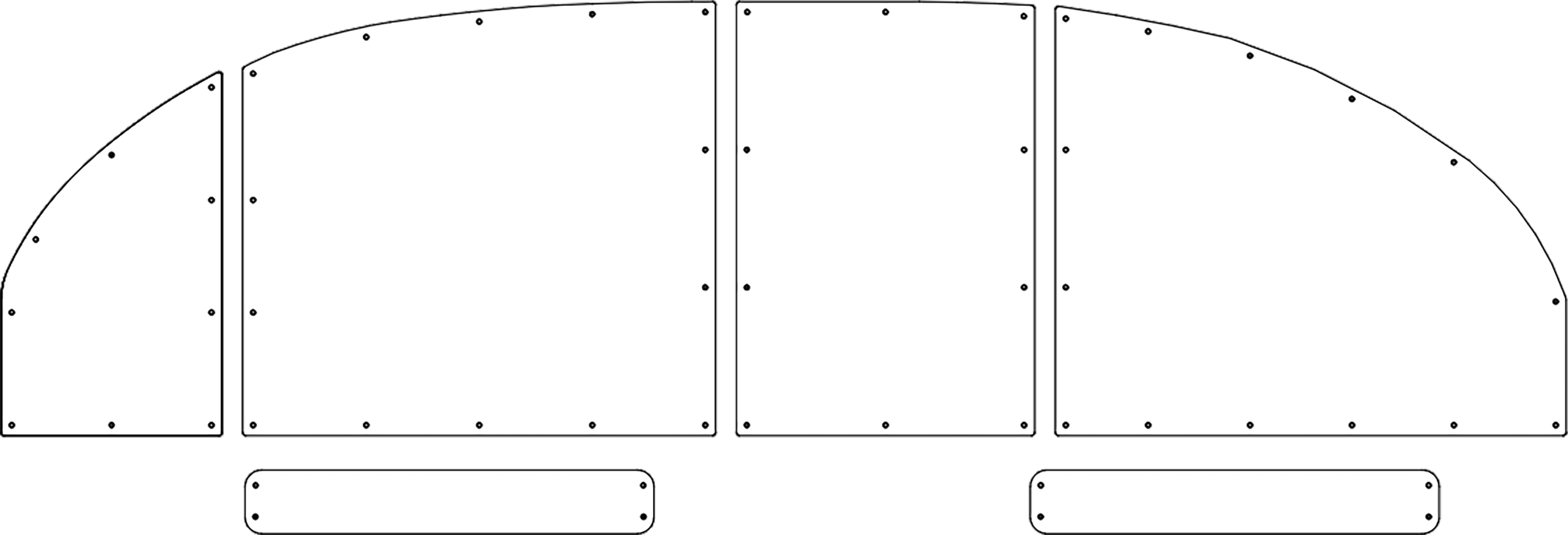

The ES / IV panel template at the panel's dimensions, 45.89 × 15.6 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
57 panels laid out on this template

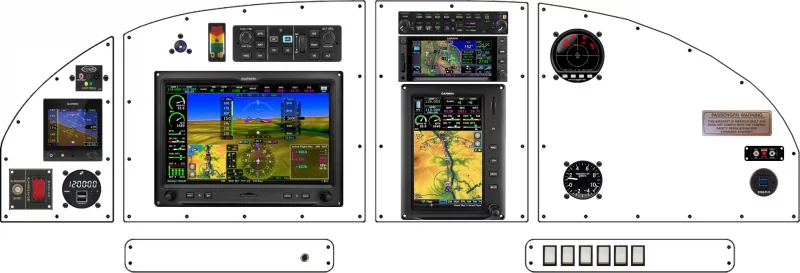

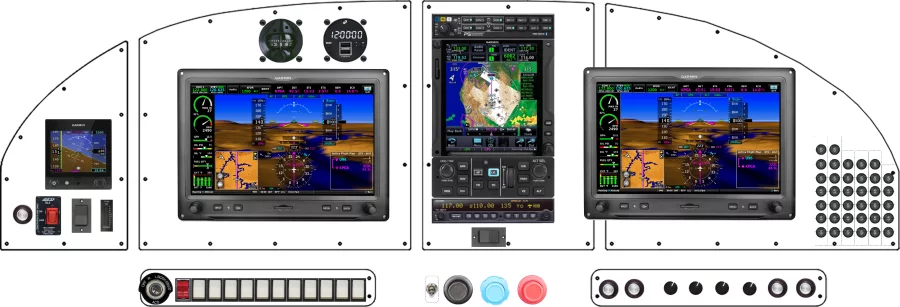

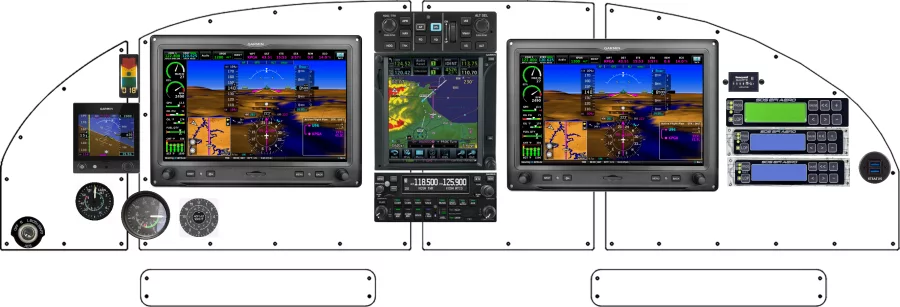

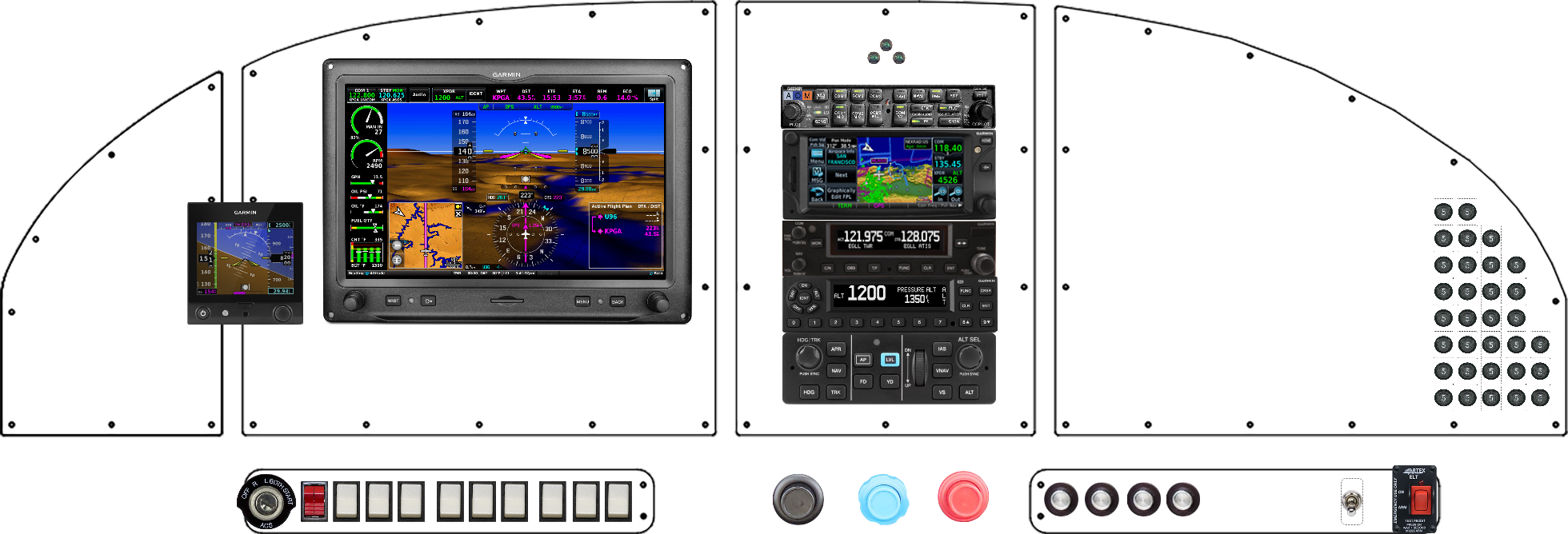

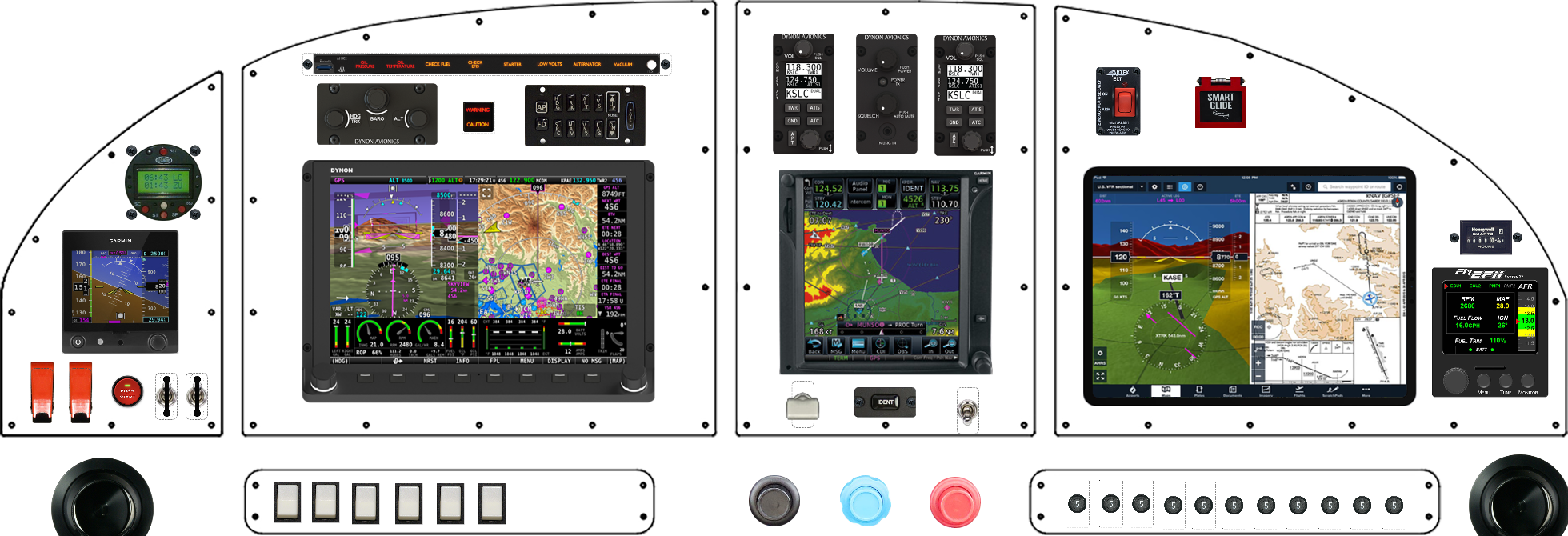

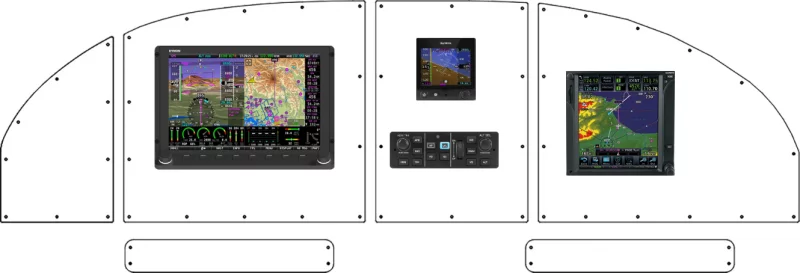

Recent ES / IV panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an ES / IV panel
The equipment placed most often across the 57 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G3X Touch | 28 | 49% |
| Garmin International, Inc G5 | 25 | 44% |
| Garmin International, Inc GMC 507 | 20 | 35% |
| Garmin International, Inc GTN 750Xi | 10 | 18% |
| Garmin International, Inc GMA 245 | 8 | 14% |
| Garmin International, Inc GTN 750 | 8 | 14% |
| PS Engineering PMA7000M-BT | 7 | 12% |
| ACK Technologies ELT | 6 | 11% |
Other Lancair International panels
From layout to fabricated panel
Lay out the ES / IV panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
