Lancair International ES / IV
ES / IV panel with Garmin G3X Touch
22 builders have laid out an ES / IV panel with the Garmin G3X Touch in the Panel Designer, 46% of the ES / IV builders here. Their newest designs, what they put beside it, and the ES / IV template to start your own, to scale.
28 ES / IV designs with the Garmin G3X Touch

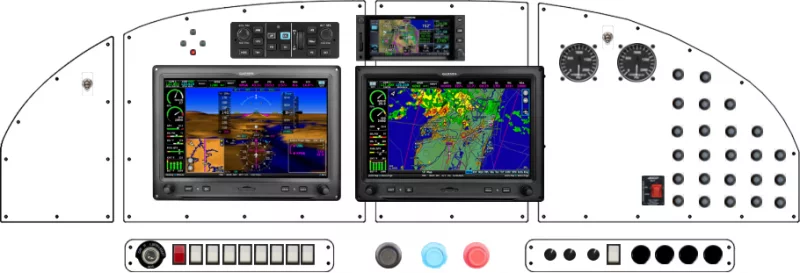

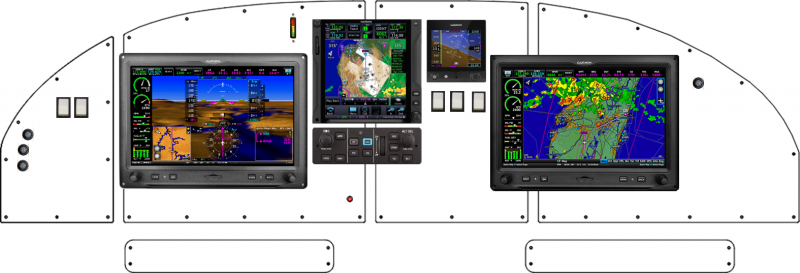

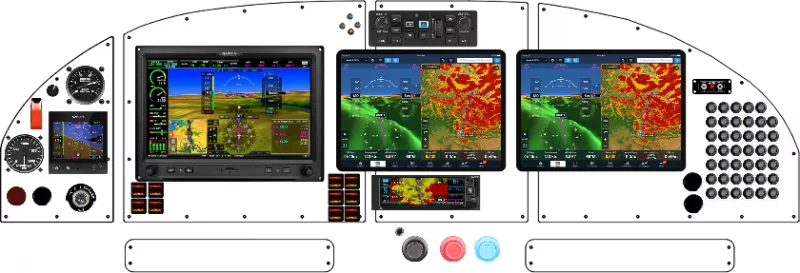

ES / IV panels with the Garmin G3X Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin G3X Touch
The equipment placed most often in the 28 ES / IV designs with the Garmin G3X Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin G5 | 20 | 71% |
| Garmin GMC 507 | 19 | 68% |
| Honeywell Sensing Rocker Switch | 13 | 46% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 11 | 39% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 10 | 36% |
| Garmin GTN 750Xi | 8 | 29% |
| Garmin GMA 245 | 8 | 29% |
| Sensa Technologies 7277 | 6 | 21% |
| APPAREO Stratus Power USB Charger | 6 | 21% |
| Garmin GNX 375 | 5 | 18% |
The Garmin G3X Touch in other aircraft
- Van's Aircraft RV-7/9 237
- Van's Aircraft RV-8 184
- Van's Aircraft RV-10 179
- Van's Aircraft RV-14 179
- Van's Aircraft RV-6 90
- RANS Aircraft S-20 / S-21 85
- Piper Aircraft PA-28 85
- Kitfox Aircraft Model 5/7 77
- Cessna 180 / 185 72
- Cessna 182P, Q, R, R182, TR182 70
- Cessna 172 55
- Sling Aircraft Sling TSi 52
From layout to fabricated panel
Lay out the ES / IV panel with the Garmin G3X Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
