Van's Aircraft RV-7/9
RV-7/9 panel with Garmin G3X Touch
237 builders have laid out an RV-7/9 panel with the Garmin G3X Touch in the Panel Designer, 32% of the RV-7/9 builders here. Their newest designs, what they put beside it, and the RV-7/9 template to start your own, to scale.
427 RV-7/9 designs with the Garmin G3X Touch

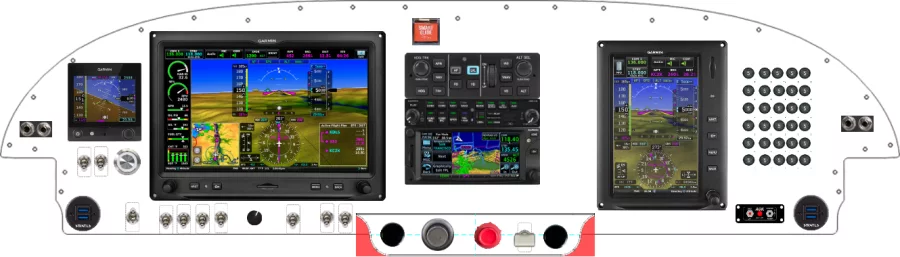

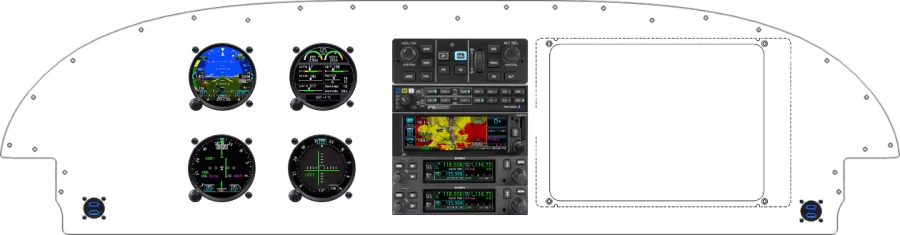

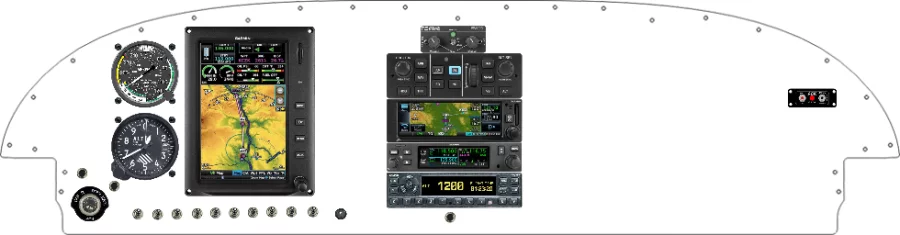

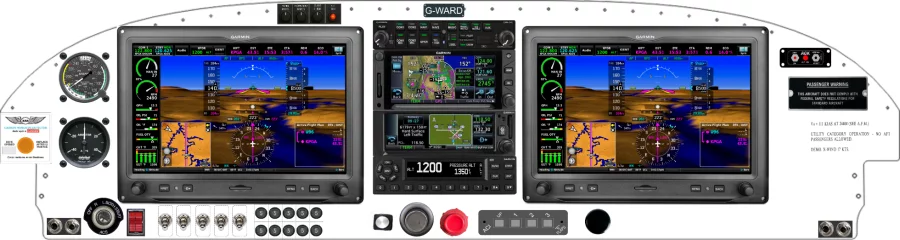

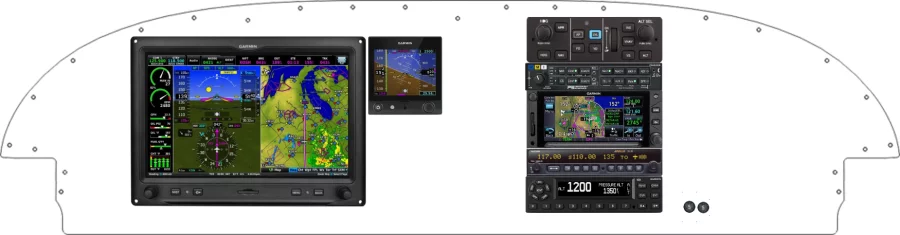

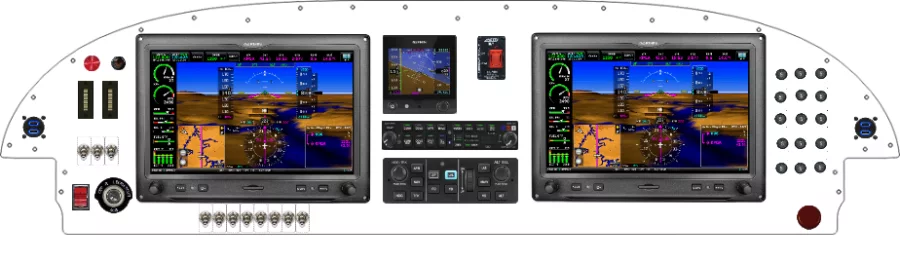

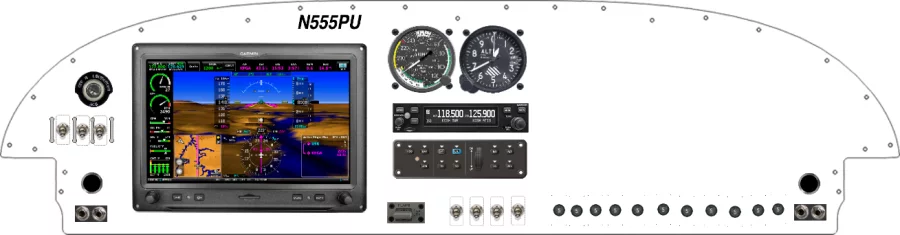

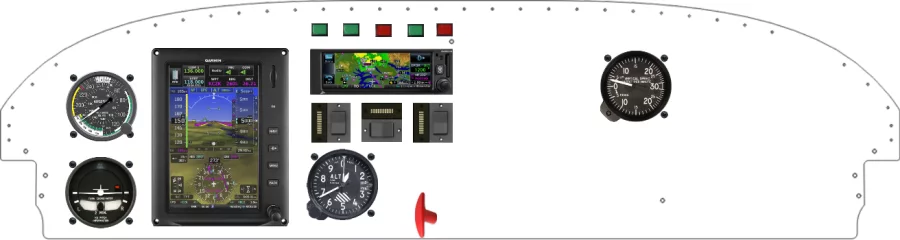

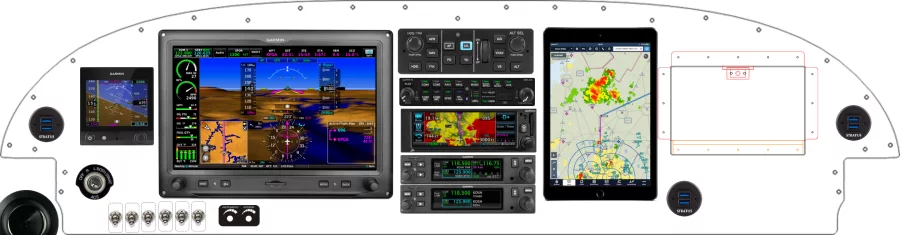

RV-7/9 panels with the Garmin G3X Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin G3X Touch
The equipment placed most often in the 427 RV-7/9 designs with the Garmin G3X Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin GMC 507 | 297 | 70% |
| Garmin G5 | 285 | 67% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 209 | 49% |
| Garmin GMA 245 | 164 | 38% |
| Sensa Technologies 7277 | 156 | 37% |
| Garmin GNX 375 | 134 | 31% |
| ACK Technologies ELT | 129 | 30% |
| Honeywell Sensing Rocker Switch | 125 | 29% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 112 | 26% |
| SteinAir Push-Button Switch Momentary (TOGA) | 110 | 26% |
Other avionics in the RV-7/9
The Garmin G3X Touch in other aircraft
From layout to fabricated panel
Lay out the RV-7/9 panel with the Garmin G3X Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
