Kitfox Aircraft Model 5/7
Model 5/7 panel with Garmin G3X Touch
77 builders have laid out a Model 5/7 panel with the Garmin G3X Touch in the Panel Designer, 40% of the Model 5/7 builders here. Their newest designs, what they put beside it, and the Model 5/7 template to start your own, to scale.
107 Model 5/7 designs with the Garmin G3X Touch

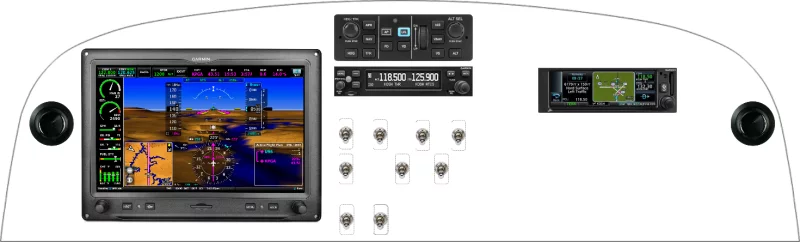

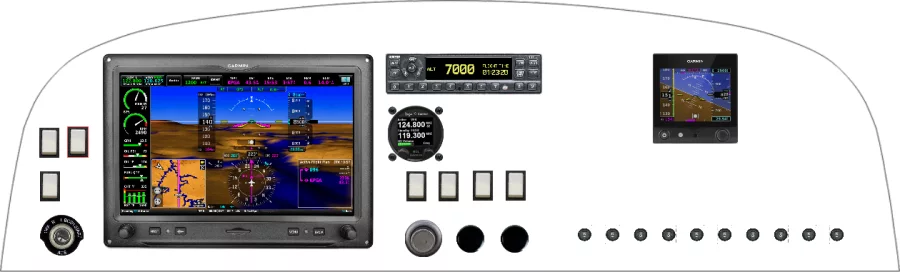

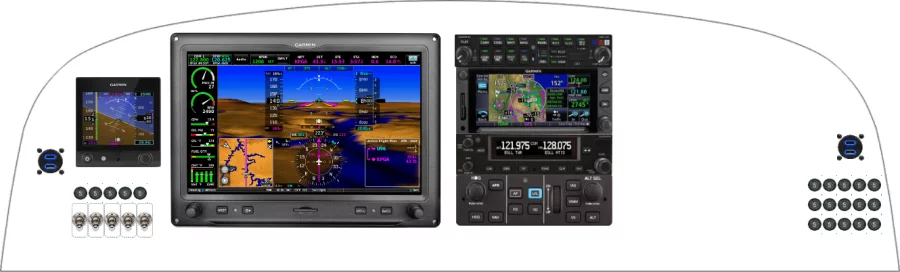

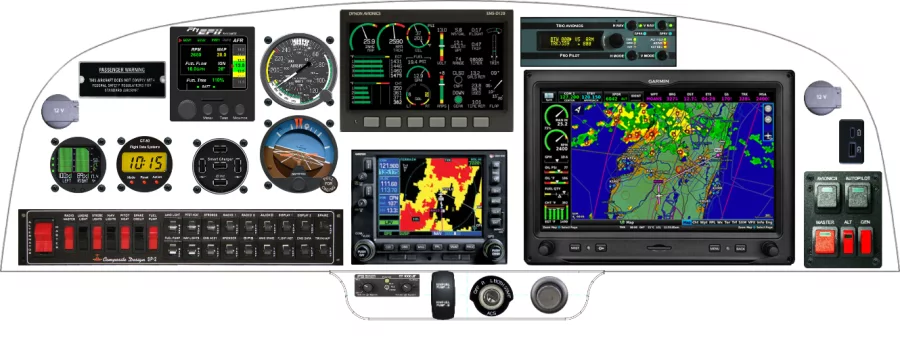

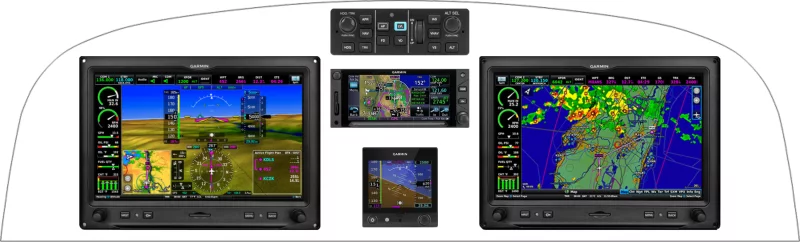

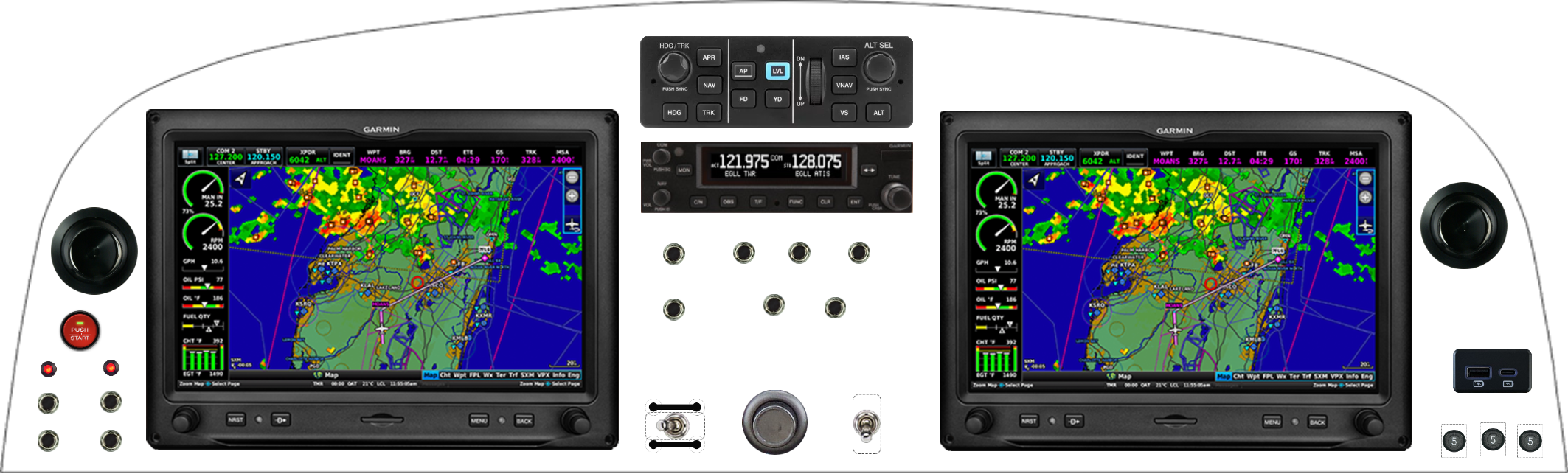

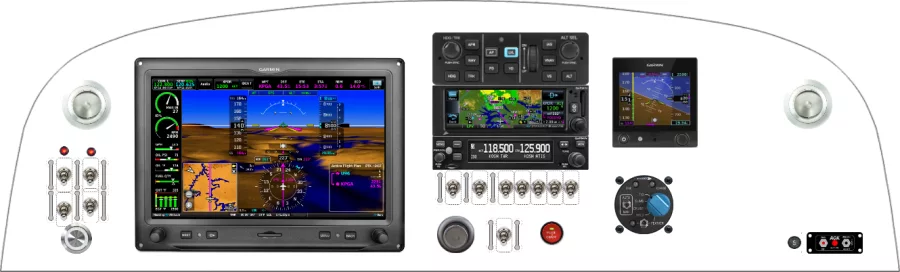

Model 5/7 panels with the Garmin G3X Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin G3X Touch
The equipment placed most often in the 107 Model 5/7 designs with the Garmin G3X Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin GMC 507 | 51 | 48% |
| Garmin G5 | 42 | 39% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 36 | 34% |
| Honeywell Sensing Rocker Switch | 28 | 26% |
| SteinAir Air Vent | 27 | 25% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 26 | 24% |
| APPAREO Stratus Power USB Charger | 25 | 23% |
| Garmin GNX 375 | 21 | 20% |
| Sensa Technologies 7277 | 21 | 20% |
| Garmin GTR 200 | 20 | 19% |
Other avionics in the Model 5/7
The Garmin G3X Touch in other aircraft
From layout to fabricated panel
Lay out the Model 5/7 panel with the Garmin G3X Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
