Van's Aircraft RV-10
RV-10 panel with Garmin G3X Touch
179 builders have laid out an RV-10 panel with the Garmin G3X Touch in the Panel Designer, 48% of the RV-10 builders here. Their newest designs, what they put beside it, and the RV-10 template to start your own, to scale.
329 RV-10 designs with the Garmin G3X Touch

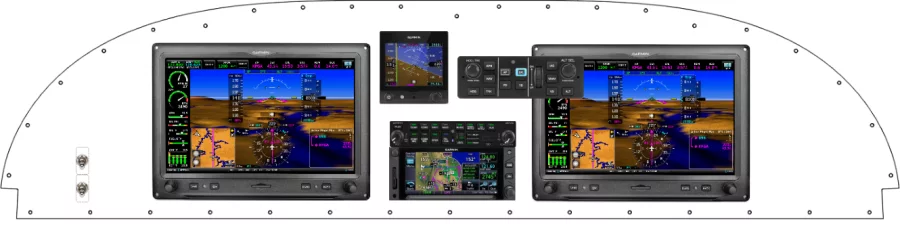

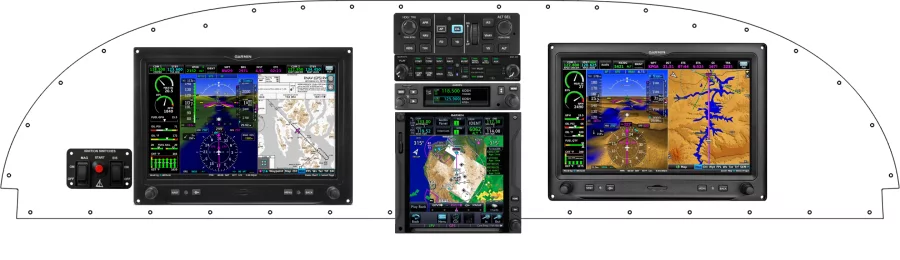

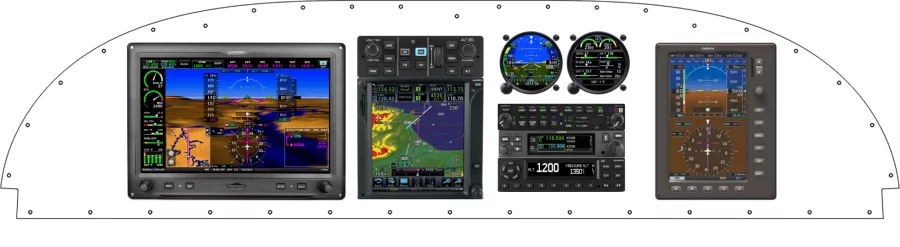

RV-10 panels with the Garmin G3X Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin G3X Touch
The equipment placed most often in the 329 RV-10 designs with the Garmin G3X Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin G5 | 229 | 70% |
| Garmin GMC 507 | 220 | 67% |
| Garmin GMA 245 | 153 | 47% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 109 | 33% |
| Garmin GTN 750Xi | 98 | 30% |
| Sensa Technologies 7277 | 92 | 28% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 72 | 22% |
| Garmin GTN 650Xi | 72 | 22% |
| Aero Safety Systems AH501 | 60 | 18% |
| ACK Technologies ELT | 59 | 18% |
Other avionics in the RV-10
The Garmin G3X Touch in other aircraft
From layout to fabricated panel
Lay out the RV-10 panel with the Garmin G3X Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
