Van's Aircraft RV-4
RV-4 panel with Garmin G3X Touch
46 builders have laid out an RV-4 panel with the Garmin G3X Touch in the Panel Designer, 25% of the RV-4 builders here. Their newest designs, what they put beside it, and the RV-4 template to start your own, to scale.
73 RV-4 designs with the Garmin G3X Touch

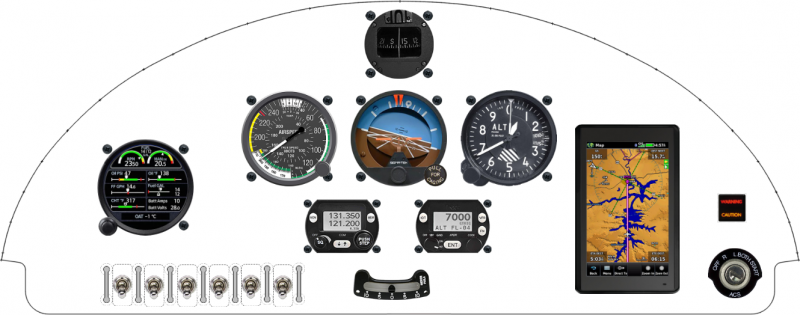

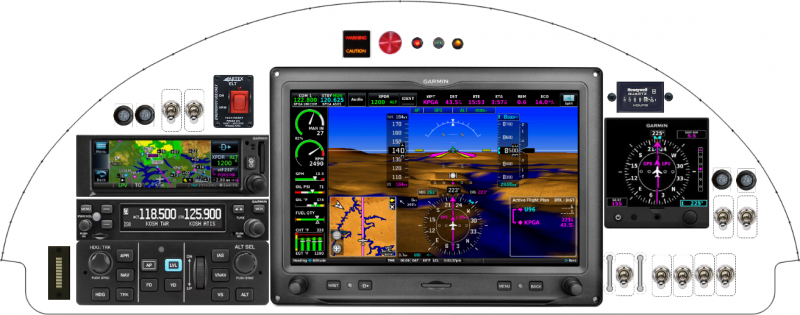

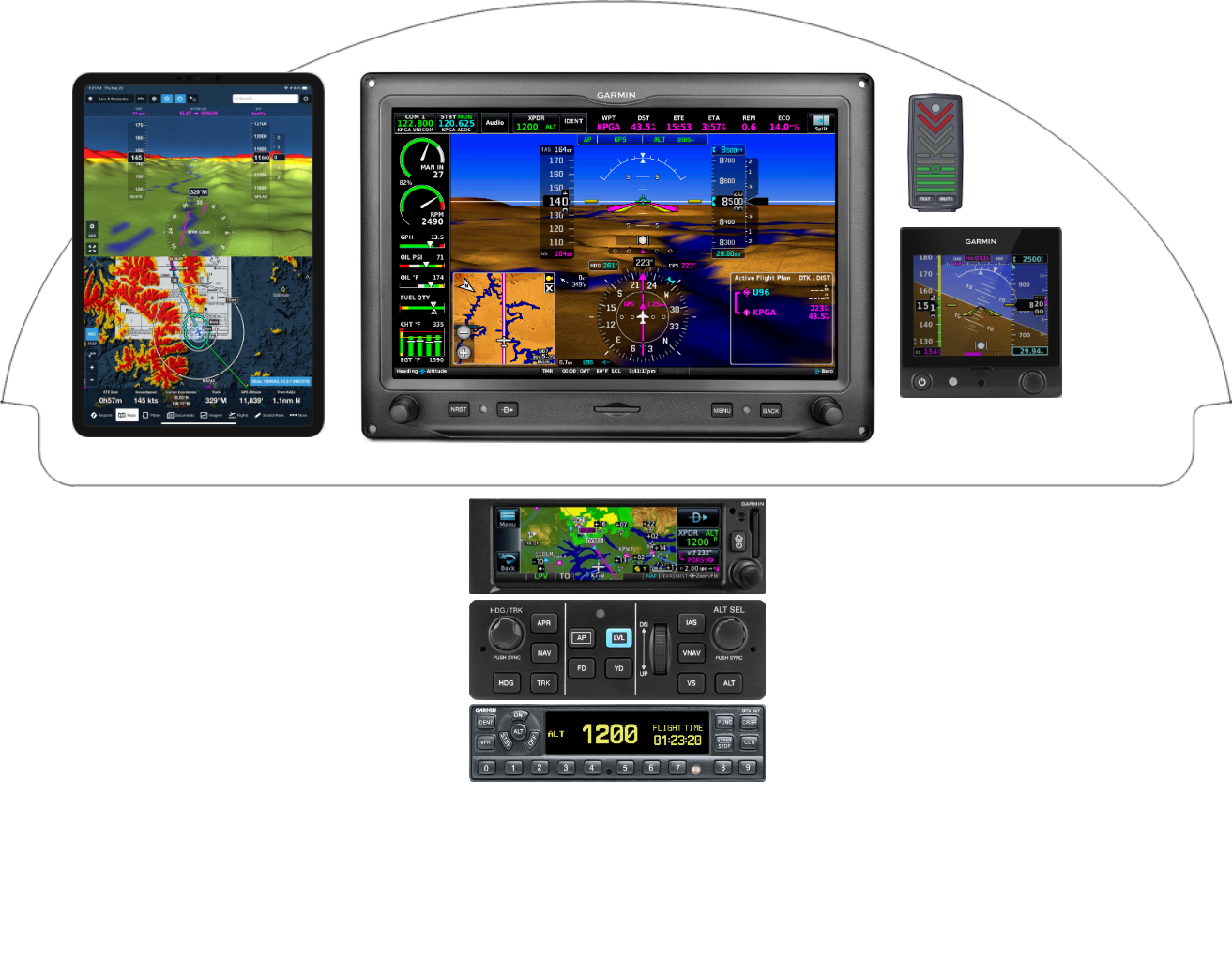

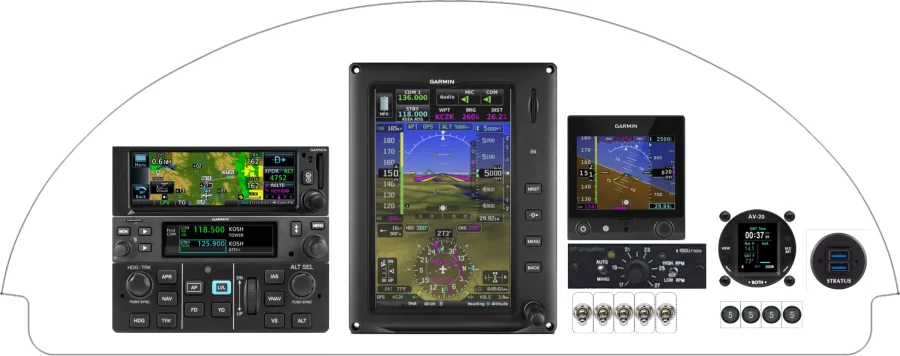

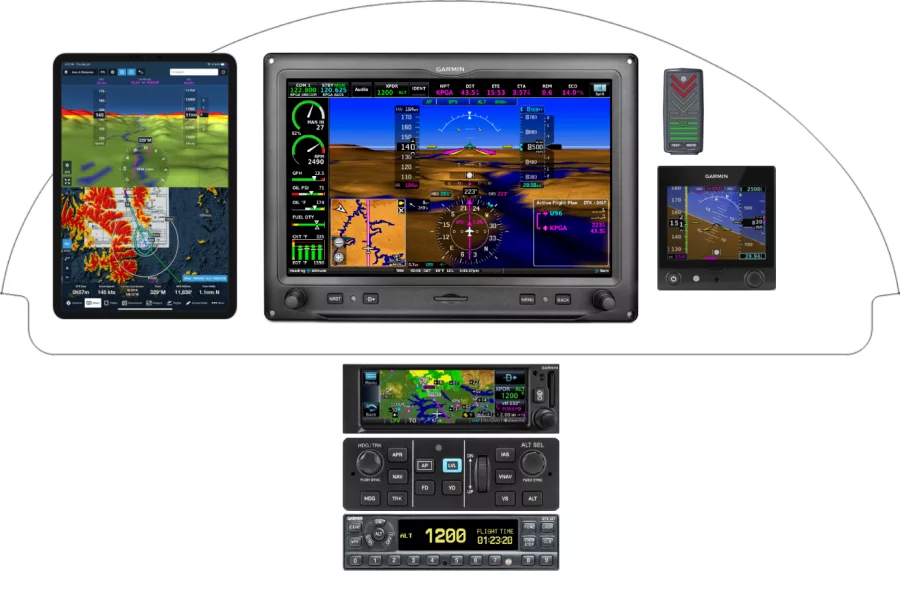

RV-4 panels with the Garmin G3X Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin G3X Touch
The equipment placed most often in the 73 RV-4 designs with the Garmin G3X Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin G5 | 49 | 67% |
| Garmin GMC 507 | 37 | 51% |
| Garmin GNX 375 | 25 | 34% |
| Sensa Technologies 7277 | 11 | 15% |
| ACK Technologies ELT | 10 | 14% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 10 | 14% |
| Garmin GFC 500 | 10 | 14% |
| Aero Safety Systems AH501 | 8 | 11% |
| Garmin GPS 175 | 8 | 11% |
| Garmin GTR 200 | 8 | 11% |
Other avionics in the RV-4
The Garmin G3X Touch in other aircraft
- Van's Aircraft RV-7/9 237
- Van's Aircraft RV-8 184
- Van's Aircraft RV-10 179
- Van's Aircraft RV-14 179
- Van's Aircraft RV-6 90
- RANS Aircraft S-20 / S-21 85
- Piper Aircraft PA-28 85
- Kitfox Aircraft Model 5/7 77
- Cessna 180 / 185 72
- Cessna 182P, Q, R, R182, TR182 70
- Cessna 172 55
- Sling Aircraft Sling TSi 52
From layout to fabricated panel
Lay out the RV-4 panel with the Garmin G3X Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
