Cessna 182P, Q, R, R182, TR182
182P, Q, R, R182, TR182 panel with Garmin G3X Touch
70 builders have laid out a 182P, Q, R, R182, TR182 panel with the Garmin G3X Touch in the Panel Designer, 30% of the 182P, Q, R, R182, TR182 builders here. Their newest designs, what they put beside it, and the 182P, Q, R, R182, TR182 template to start your own, to scale.
93 182P, Q, R, R182, TR182 designs with the Garmin G3X Touch

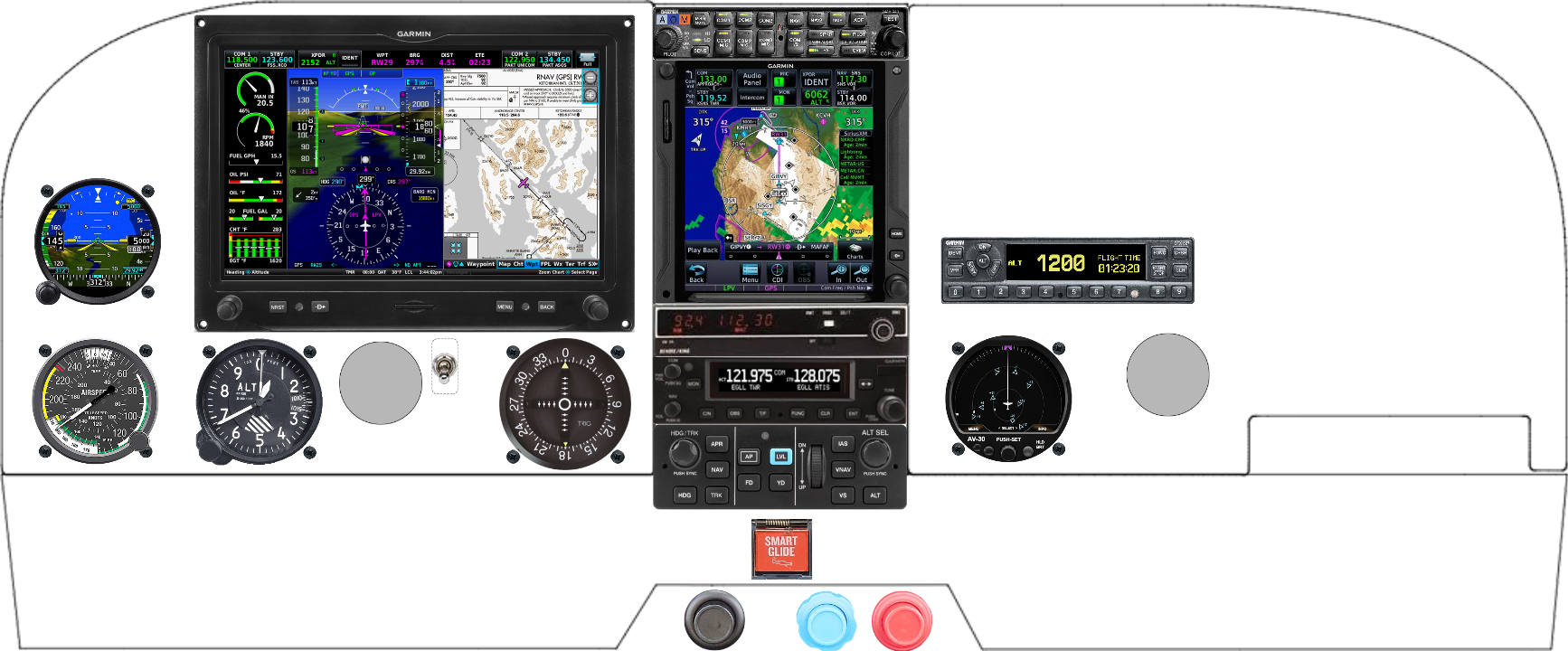

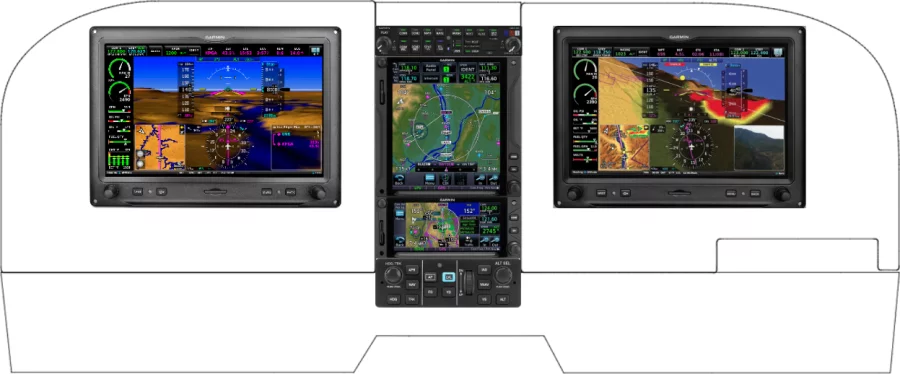

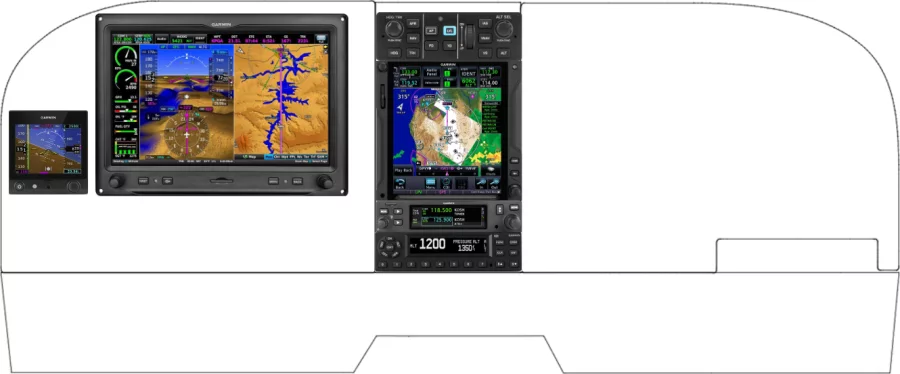

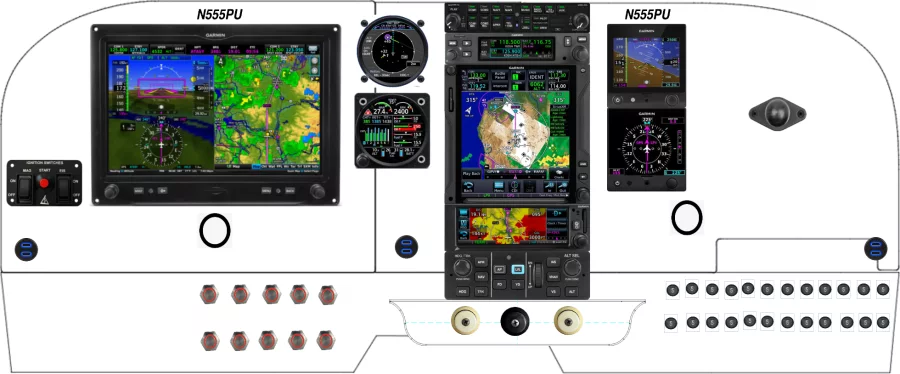

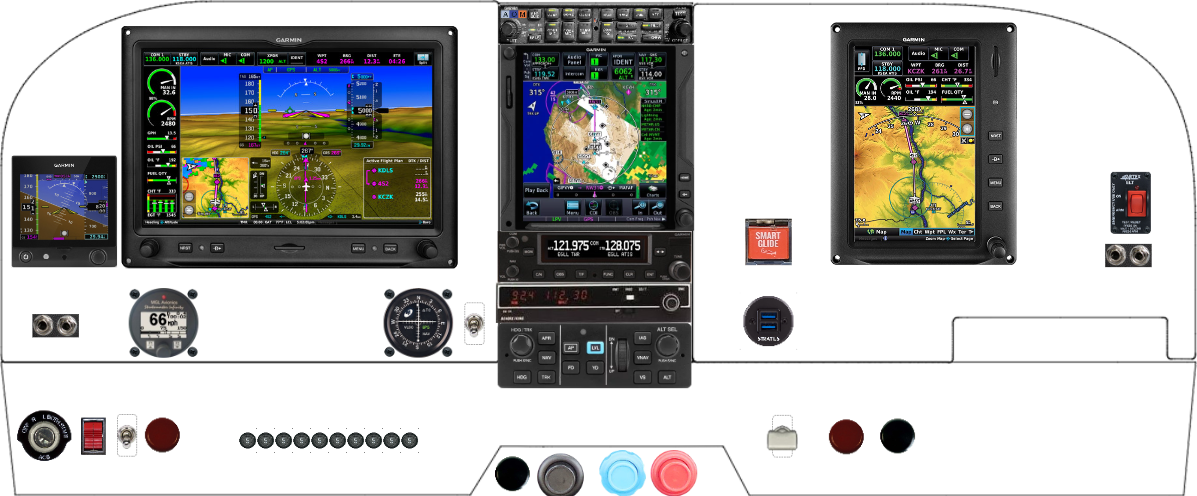

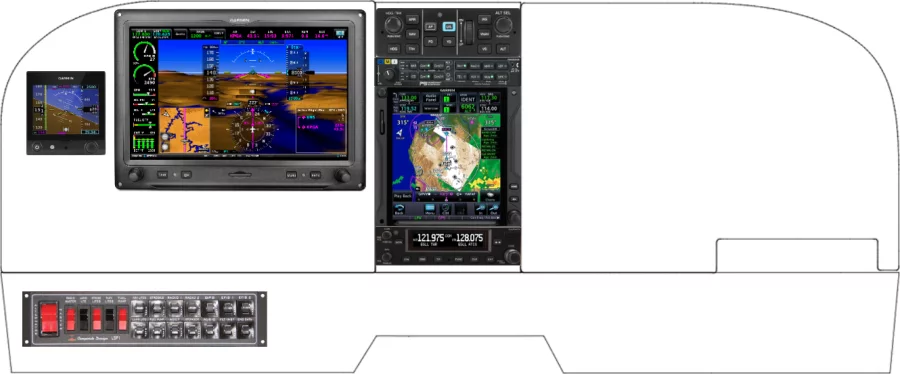

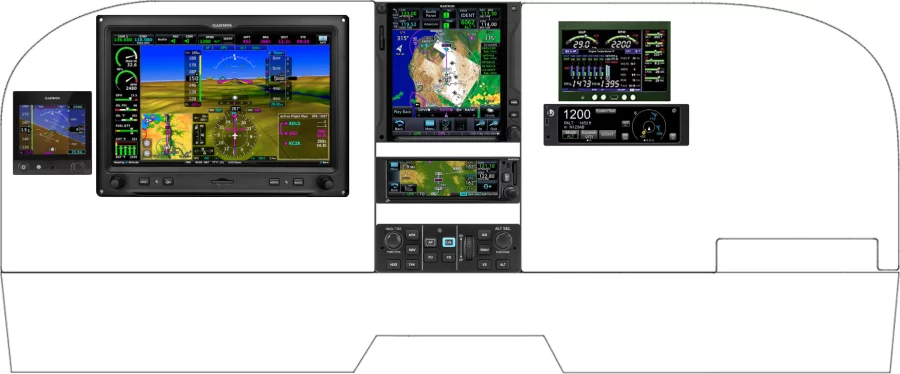

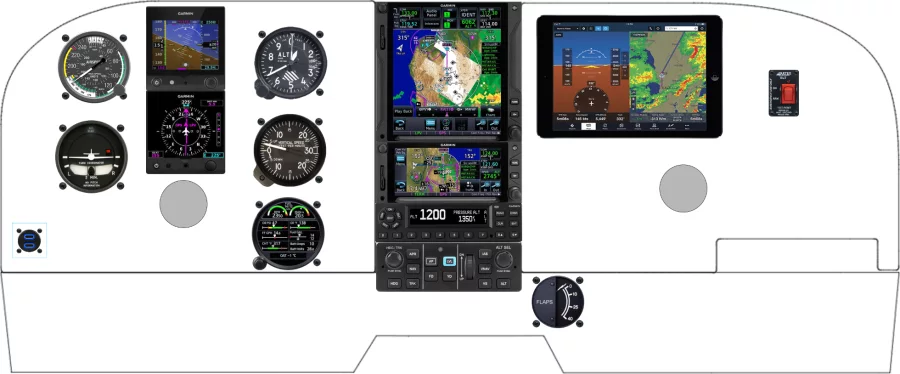

182P, Q, R, R182, TR182 panels with the Garmin G3X Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin G3X Touch
The equipment placed most often in the 93 182P, Q, R, R182, TR182 designs with the Garmin G3X Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin G5 | 66 | 71% |
| Garmin GFC 500 | 52 | 56% |
| Garmin GTN 750Xi | 32 | 34% |
| Garmin GTX 345 | 30 | 32% |
| Garmin GMA 345 | 30 | 32% |
| Garmin GMC 507 | 30 | 32% |
| Garmin GTN 650Xi | 28 | 30% |
| Garmin GSB 15 | 25 | 27% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 25 | 27% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 22 | 24% |
Other avionics in the 182P, Q, R, R182, TR182
The Garmin G3X Touch in other aircraft
From layout to fabricated panel
Lay out the 182P, Q, R, R182, TR182 panel with the Garmin G3X Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
