Cessna 182P, Q, R, R182, TR182
182P, Q, R, R182, TR182 panel with Dynon SkyView HDX
43 builders have laid out a 182P, Q, R, R182, TR182 panel with the Dynon SkyView HDX in the Panel Designer, 18% of the 182P, Q, R, R182, TR182 builders here. Their newest designs, what they put beside it, and the 182P, Q, R, R182, TR182 template to start your own, to scale.
66 182P, Q, R, R182, TR182 designs with the Dynon SkyView HDX

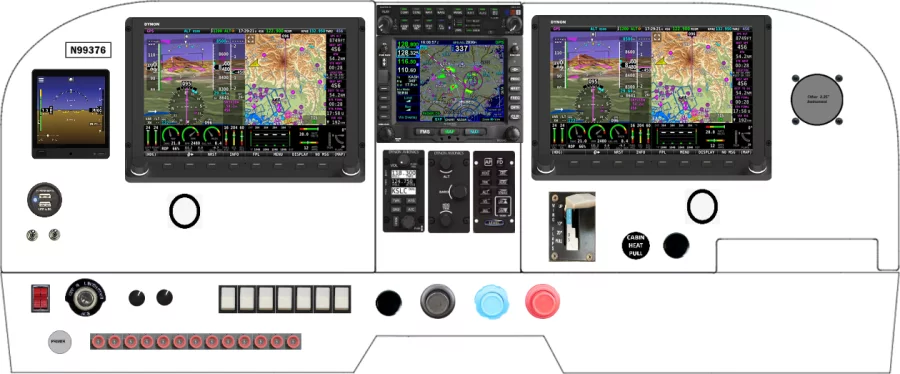

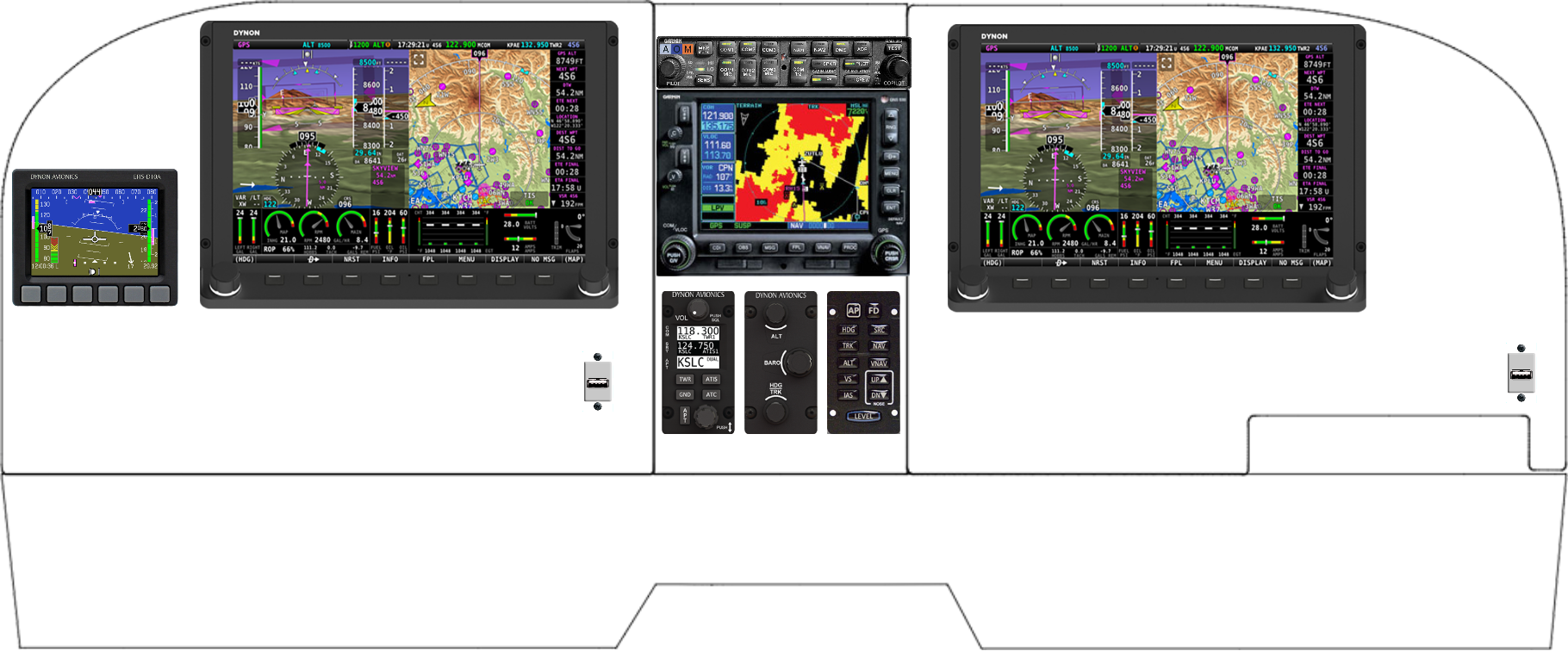

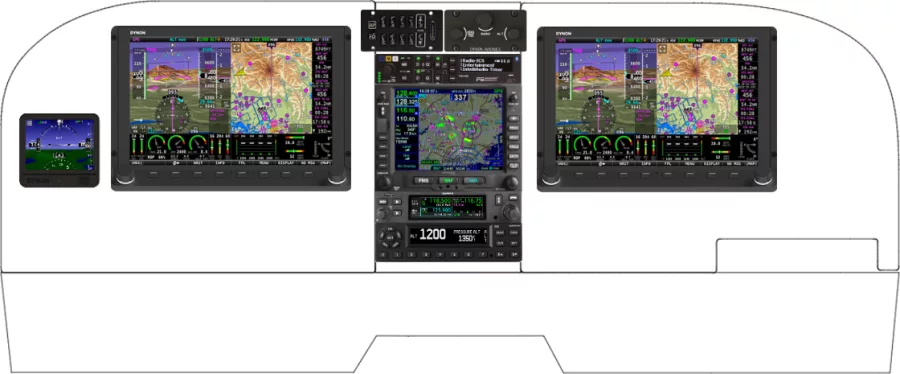

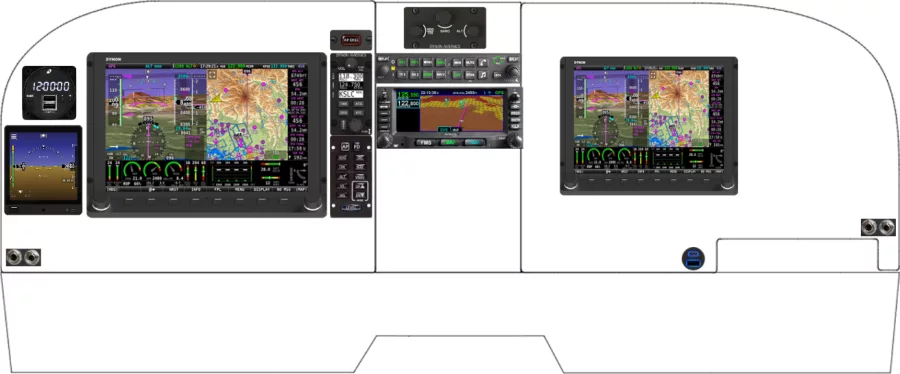

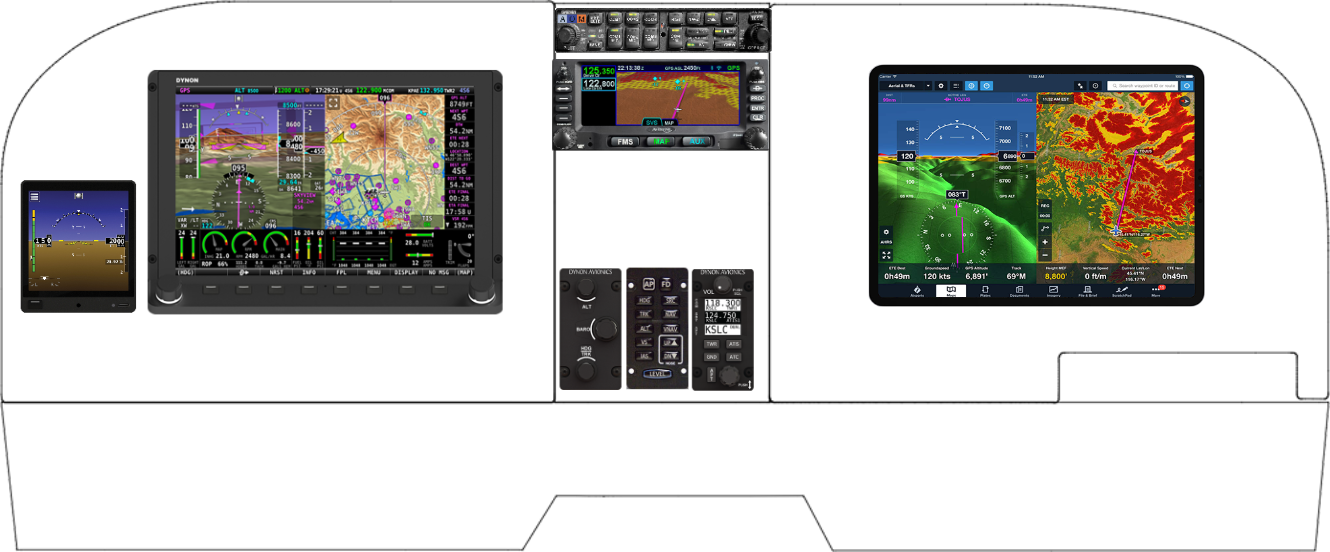

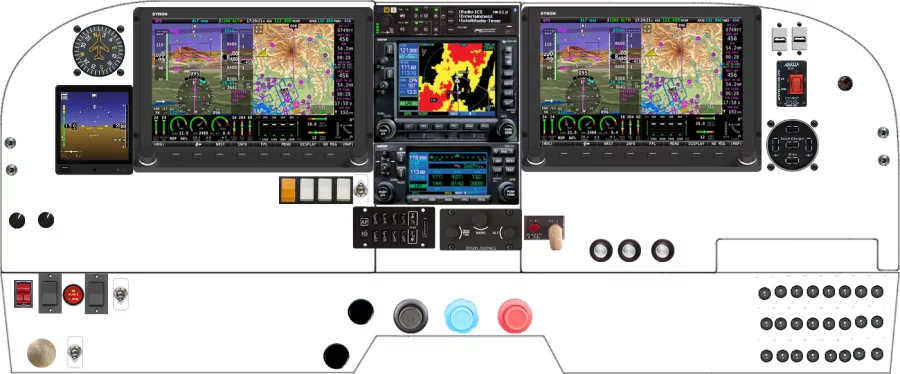

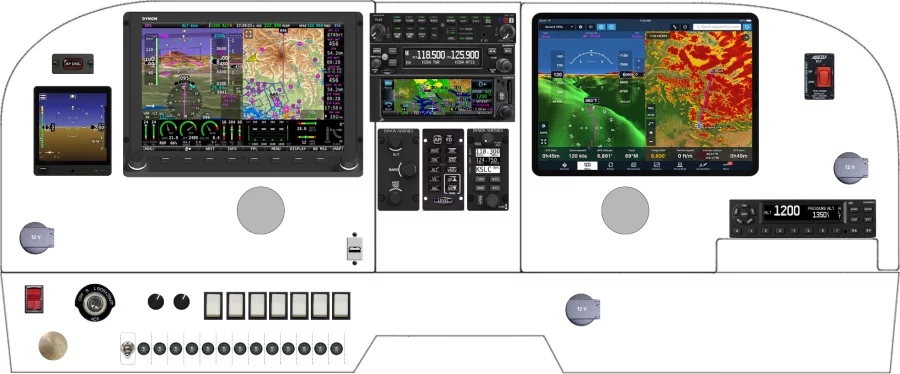

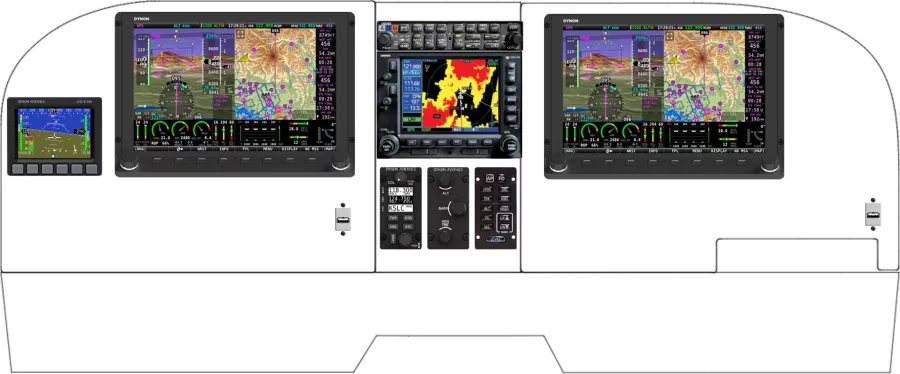

182P, Q, R, R182, TR182 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 66 182P, Q, R, R182, TR182 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 54 | 82% |
| Dynon Avionics Knob Control | 49 | 74% |
| Dynon Avionics VHF COM | 38 | 58% |
| Dynon Avionics D30 | 35 | 53% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 23 | 35% |
| Dynon Avionics EFIS-D10A | 16 | 24% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 16 | 24% |
| Avidyne IFD540 | 16 | 24% |
| Dynon Avionics USB PORT PANEL-MOUNT | 15 | 23% |
| Avidyne IFD440 | 15 | 23% |
Other avionics in the 182P, Q, R, R182, TR182
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 176
- Van's Aircraft RV-8 117
- Van's Aircraft RV-6 65
- Van's Aircraft RV-14 64
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 55
- RANS Aircraft S-20 / S-21 44
- Zenith Aircraft Company STOL CH 750 37
- Van's Aircraft RV-4 31
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
- Velocity Aircraft Velocity 24
From layout to fabricated panel
Lay out the 182P, Q, R, R182, TR182 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
