Velocity panel with Dynon SkyView HDX
24 builders have laid out a Velocity panel with the Dynon SkyView HDX in the Panel Designer, 24% of the Velocity builders here. Their newest designs, what they put beside it, and the Velocity template to start your own, to scale.
56 Velocity designs with the Dynon SkyView HDX

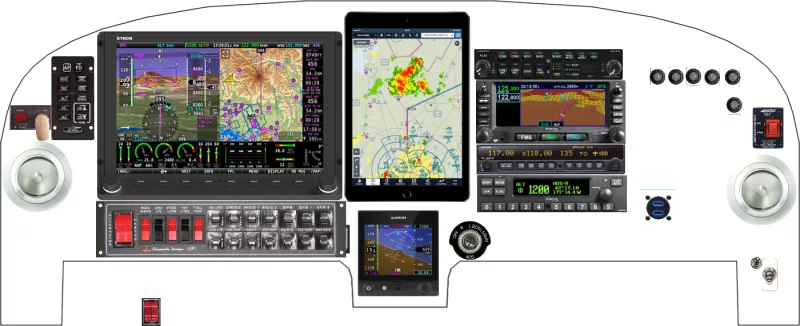

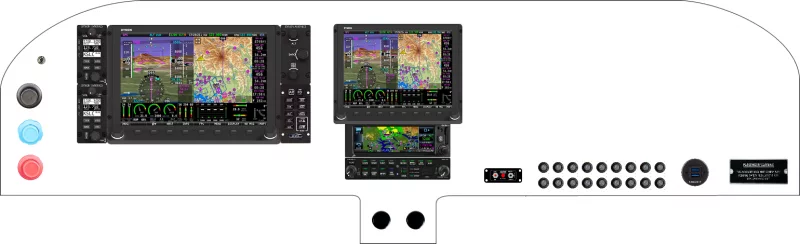

Velocity panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 56 Velocity designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 54 | 96% |
| Dynon Avionics VHF COM | 44 | 79% |
| Dynon Avionics Knob Control | 43 | 77% |
| Sensa Technologies 7277 | 34 | 61% |
| SteinAir Air Vent | 33 | 59% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 30 | 54% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 29 | 52% |
| Garmin G5 | 29 | 52% |
| PS Engineering PMA8000B | 21 | 38% |
| Garmin GNC 255 | 21 | 38% |
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 174
- Van's Aircraft RV-8 116
- Van's Aircraft RV-6 64
- Van's Aircraft RV-14 62
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 52
- RANS Aircraft S-20 / S-21 45
- Cessna 182P, Q, R, R182, TR182 41
- Zenith Aircraft Company STOL CH 750 37
- Van's Aircraft RV-4 31
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
From layout to fabricated panel
Lay out the Velocity panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
