Avionics system
Dynon SkyView HDX
Dynon's touchscreen flight and engine display system, 7 and 10 in. displays. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
2,293 panel designs carry it
Dynon SkyView HDX in the library
The number on each is how many designs carry it.
SkyView HDX
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
Dynon SkyView
- Display harness (SV-HARNESS-D37)
- ADAHRS (with OAT probe)
- GPS receiver
- Engine monitoring module
- Engine probe package (sensors and harnesses)
- Autopilot servos
- COM transceiver for the SkyView COM control panel
- Transponder
- ADS-B traffic and weather receiver
- AOA/pitot probe
- Optional
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 2,293 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 1,631 | 71% |
| Dynon Avionics VHF COM | 1,536 | 67% |
| Dynon Avionics Stereo Intercom | 710 | 31% |
| ACK Technologies ELT | 574 | 25% |
| Sensa Technologies 7277 | 532 | 23% |
| Garmin G5 | 345 | 15% |
| Dynon Avionics D30 | 315 | 14% |
| Dynon Avionics EFIS-D10A | 290 | 13% |

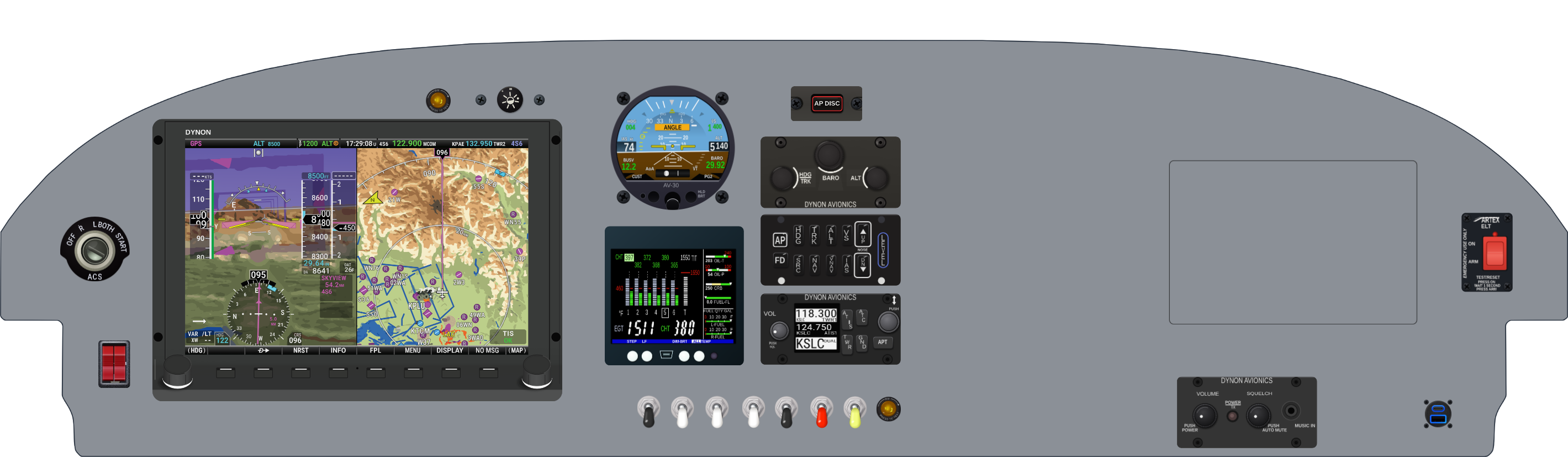

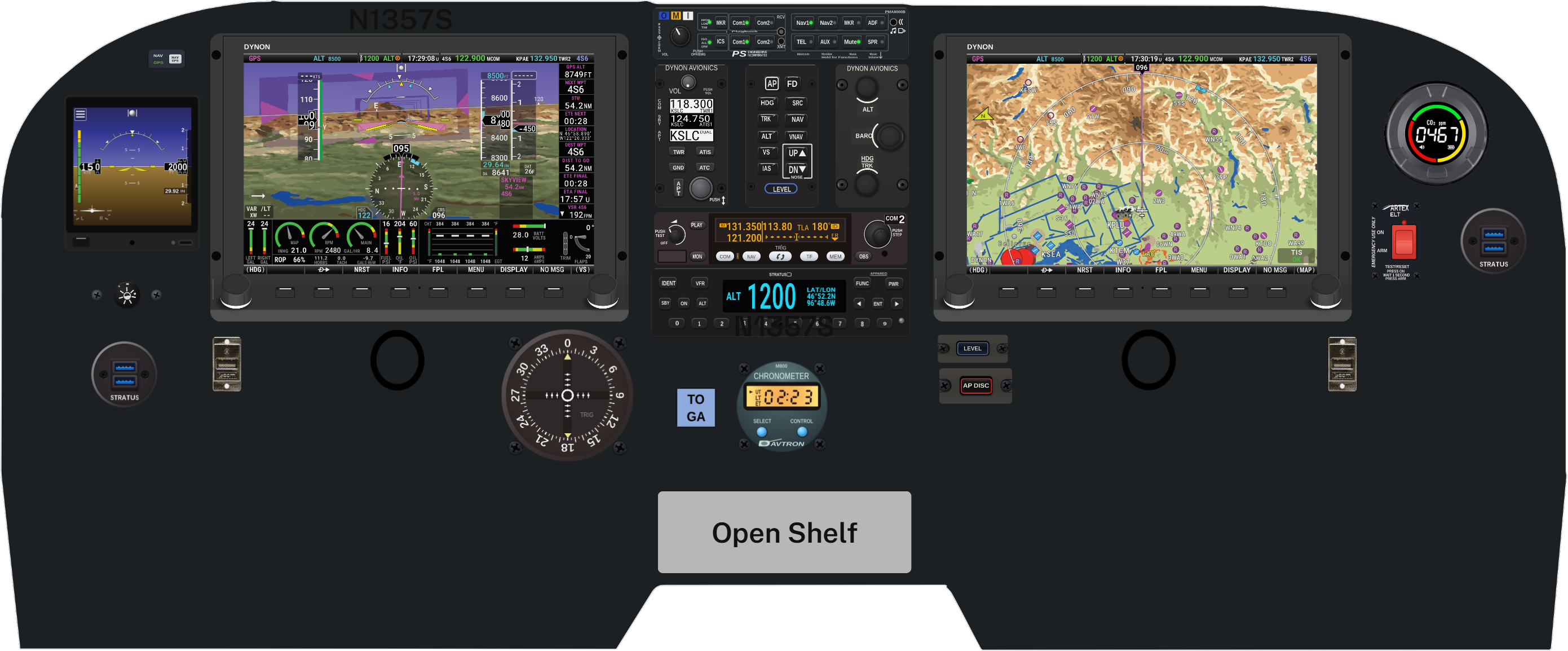

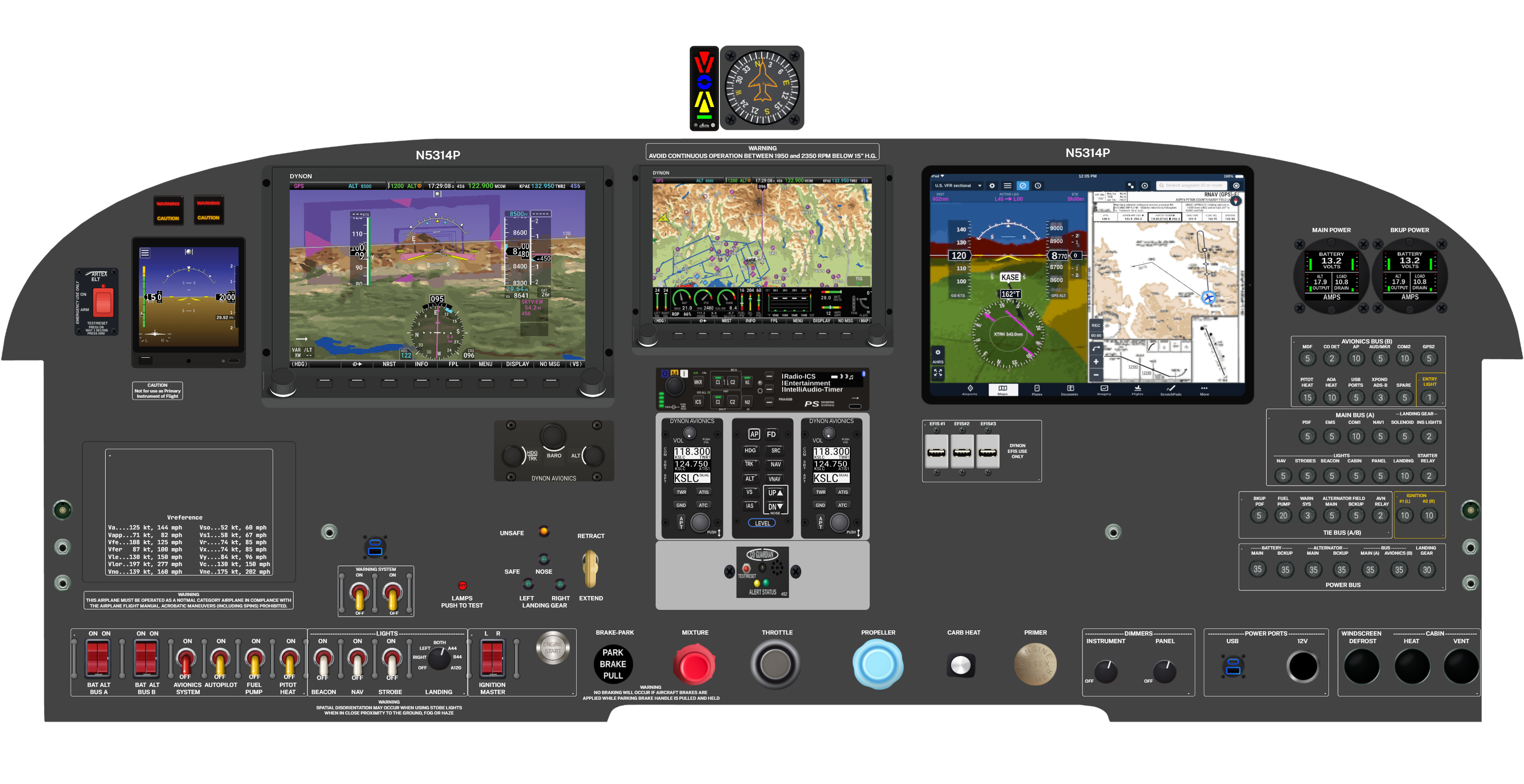

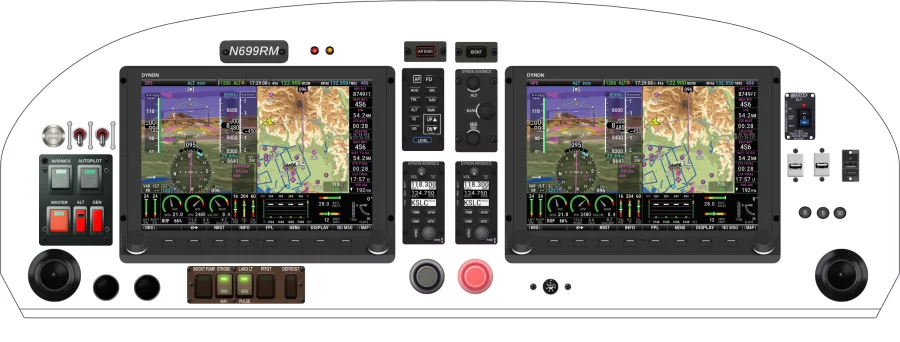

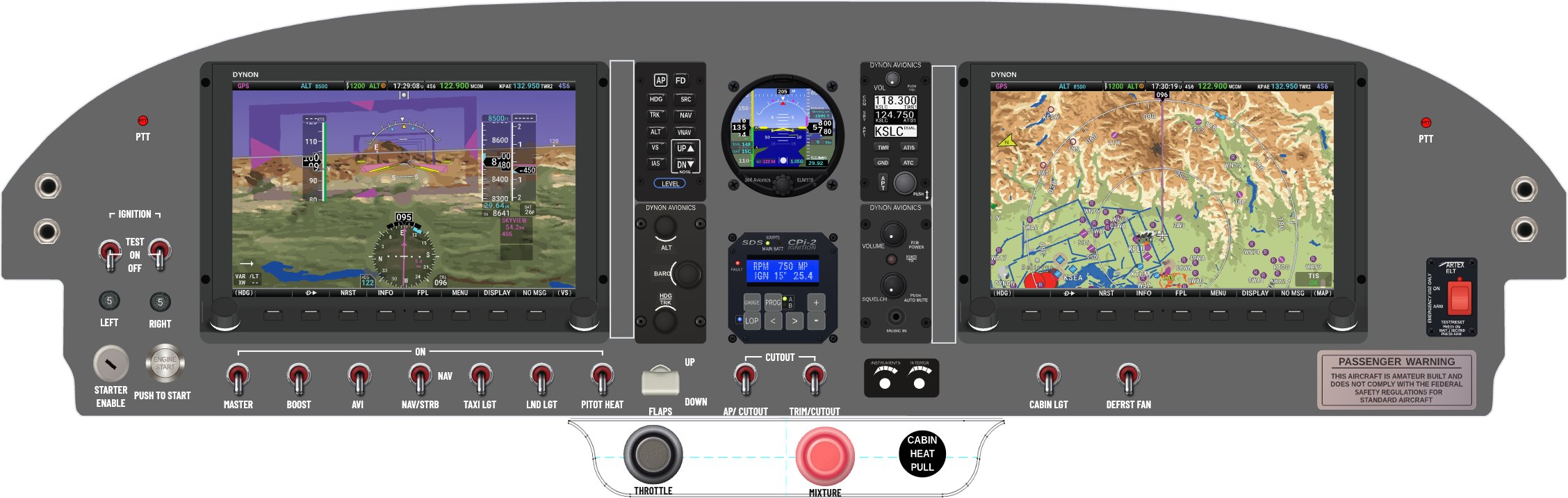

Recent panel designs with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
