Avionics system
Dynon SkyView Classic and Touch, and the D series
Dynon's earlier displays, still flying in many panels; the SkyView Classic and Touch are supported, the D series is no longer made. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
1,115 panel designs carry it
Dynon SkyView Classic and Touch, and the D series in the library
The number on each is how many designs carry it.
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
Dynon SkyView
- Display harness (SV-HARNESS-D37)
- ADAHRS (with OAT probe)
- GPS receiver
- Engine monitoring module
- Engine probe package (sensors and harnesses)
- Autopilot servos
- COM transceiver for the SkyView COM control panel
- Transponder
- ADS-B traffic and weather receiver
- AOA/pitot probe
- Optional
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 1,115 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 514 | 46% |
| Dynon Avionics VHF COM | 433 | 39% |
| Dynon Avionics Dynon SkyView HDX 10" | 332 | 30% |
| Sensa Technologies 7277 | 328 | 29% |
| ACK Technologies ELT | 294 | 26% |
| Falcon Gauge Airspeed Indicator 3" | 223 | 20% |
| Falcon Gauge Altimeter 3" | 213 | 19% |
| Dynon Avionics Stereo Intercom | 210 | 19% |

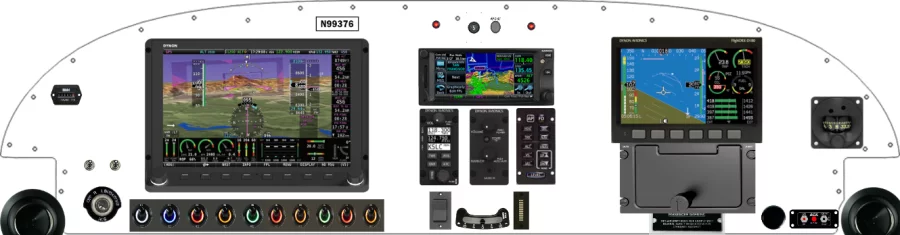

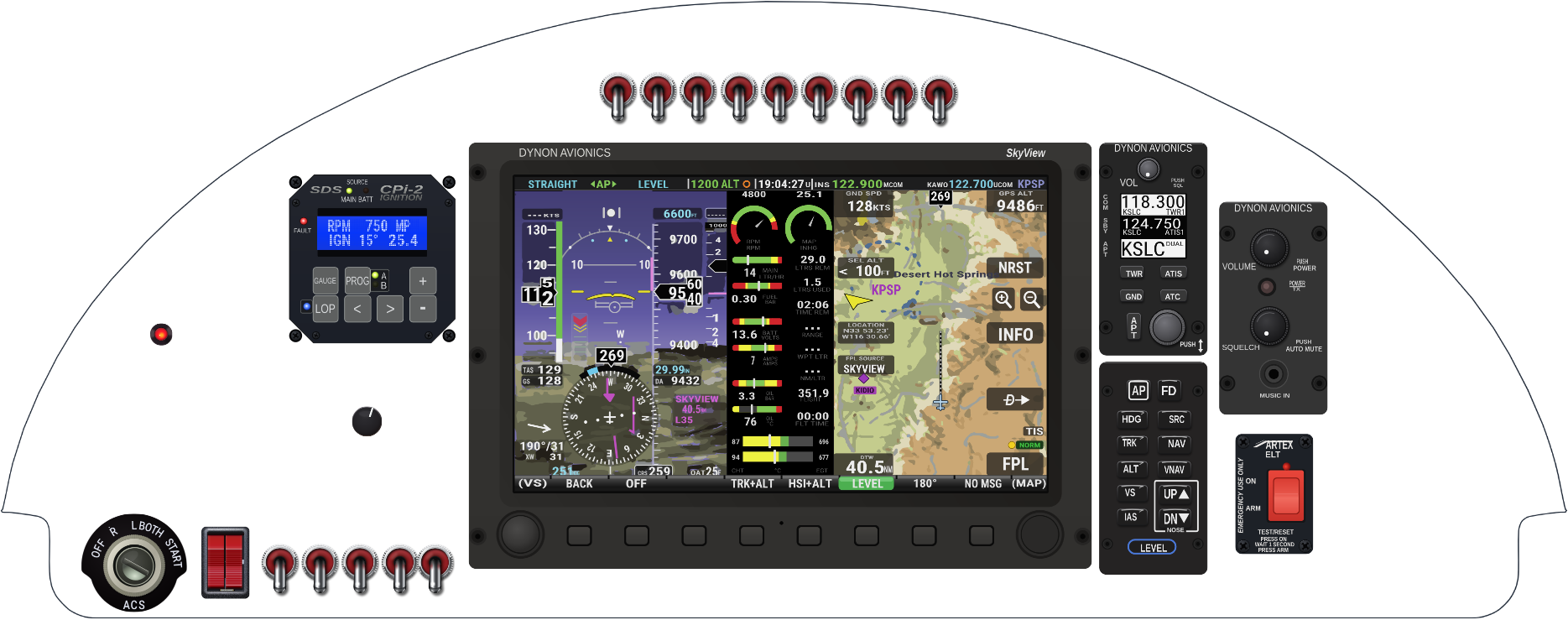

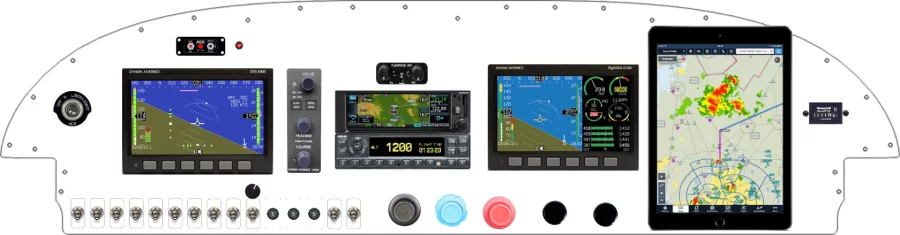

Recent panel designs with the Dynon SkyView Classic and Touch, and the D series
Exported by builders from the Panel Designer, newest first.
