Avionics system
Advanced Flight Systems AF-5000 and AdvancedPanel
Advanced Flight Systems' flight and engine displays, and its prewired AdvancedPanel. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
246 panel designs carry it
Advanced Flight Systems AF-5000 and AdvancedPanel in the library
The number on each is how many designs carry it.
AFS EFIS
AFS Pilot
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
Advanced Flight Systems AF-5000/6600
- EFIS main harness (one for each screen)
- ADAHRS
- GPS antenna module
- Backup power for the screens
- ADS-B receiver
- Optional
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 246 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 132 | 54% |
| ACK Technologies ELT | 91 | 37% |
| Dynon Avionics VHF COM | 90 | 37% |
| Garmin G5 | 71 | 29% |
| Sensa Technologies 7277 | 62 | 25% |
| uAvionix AV-30 PFD | 54 | 22% |
| Avidyne IFD440 | 38 | 15% |
| Falcon Gauge Airspeed Indicator 3" | 36 | 15% |

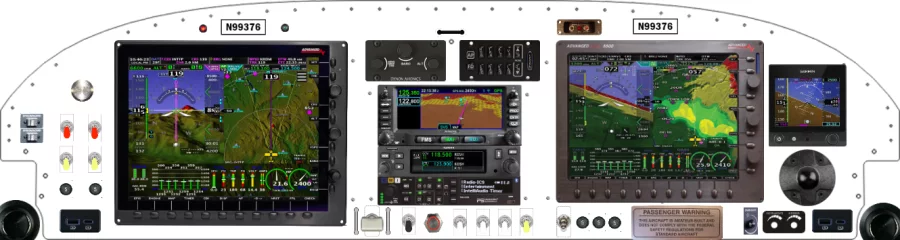

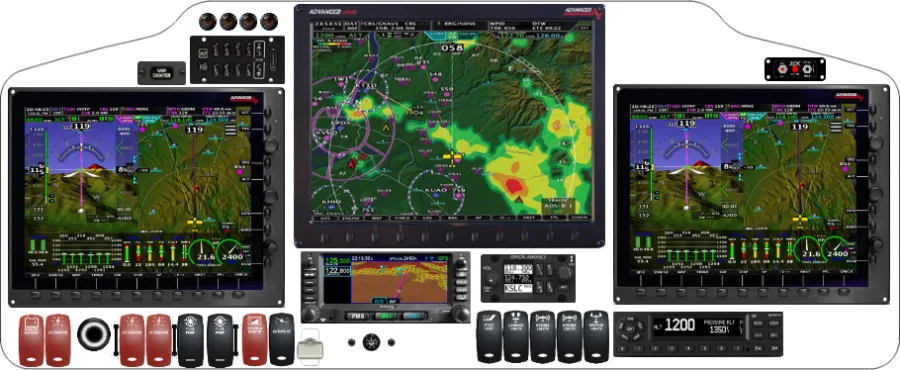

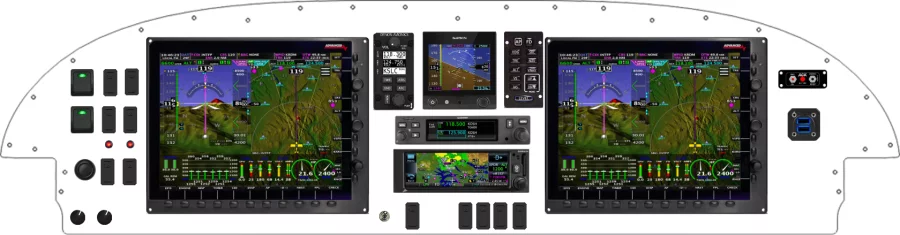

Recent panel designs with the Advanced Flight Systems AF-5000 and AdvancedPanel
Exported by builders from the Panel Designer, newest first.
