Avionics system
Garmin G500 and G600 TXi
Garmin's touchscreen flight and engine displays for certified aircraft. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
629 panel designs carry it
Garmin G500 and G600 TXi in the library
The number on each is how many designs carry it.
TXi
G500 and G600
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
Garmin G500 / G600 TXi
- Attitude and air data for the PFD
- Engine interface for the EIS
- GBB 54 backup battery
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 629 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin GTN 750Xi | 272 | 43% |
| Garmin GI 275 ADI | 236 | 38% |
| Garmin GFC 500 | 223 | 35% |
| Garmin G5 | 176 | 28% |
| Garmin GTN 750 | 160 | 25% |
| Garmin GTX 345 | 157 | 25% |
| Garmin GTN 650Xi | 157 | 25% |
| Garmin GFC 600 | 137 | 22% |

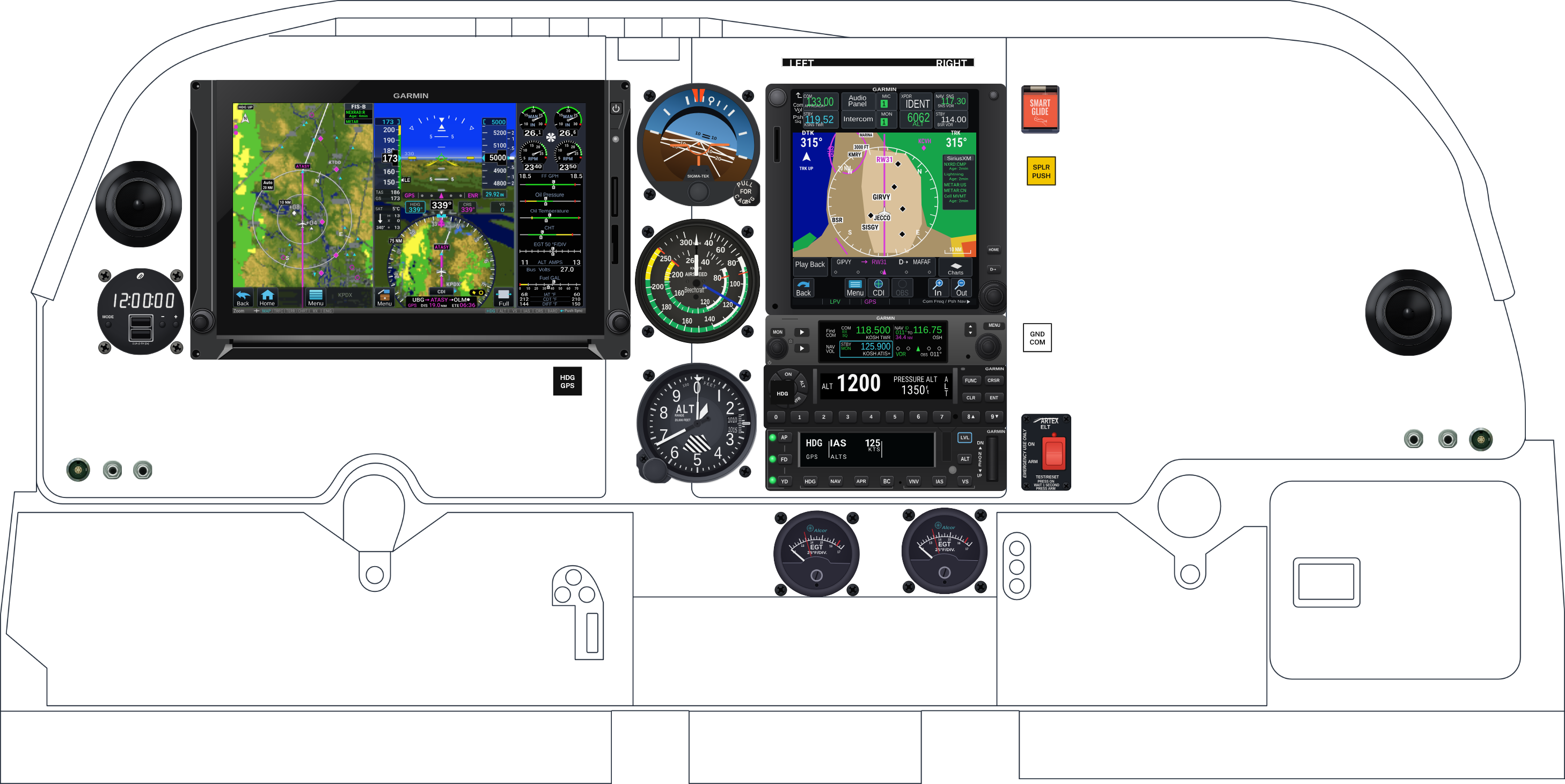

Recent panel designs with the Garmin G500 and G600 TXi
Exported by builders from the Panel Designer, newest first.
