Beechcraft A36 instrument panel
The A36 panel template at the panel's dimensions, 42.44 × 21.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
207 panels laid out on these 2 templates

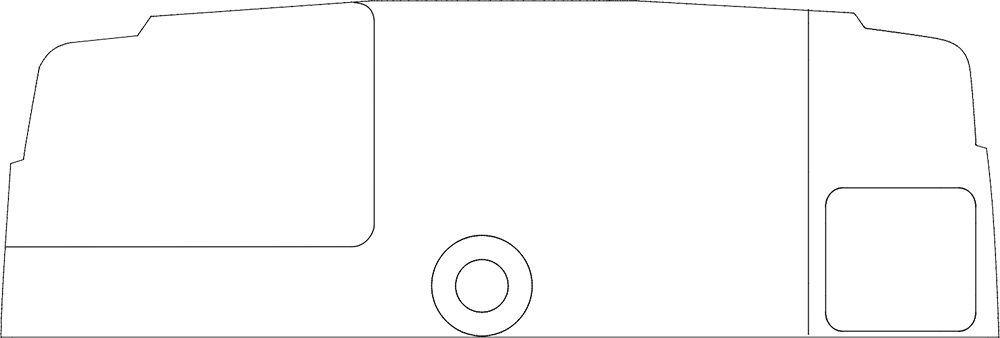

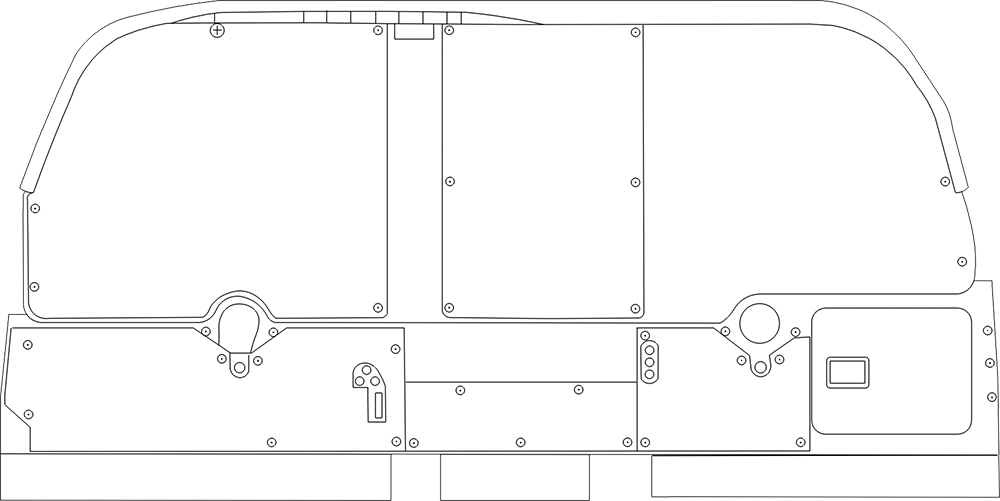

2 templates for the A36

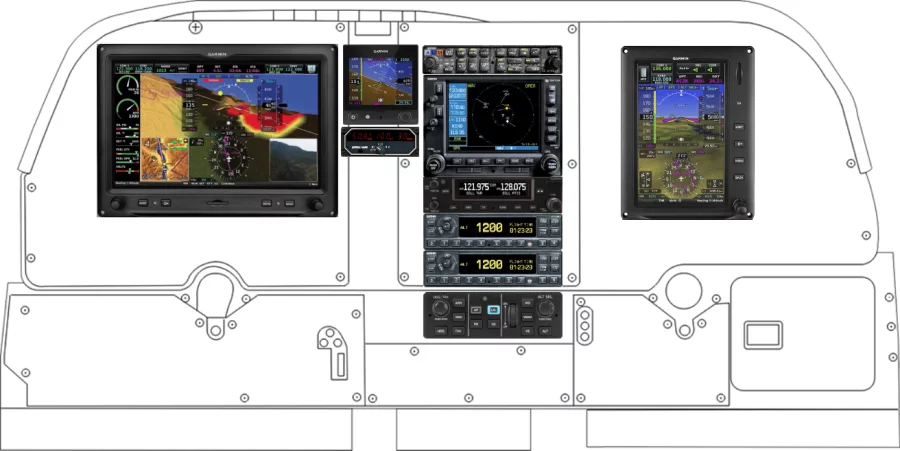

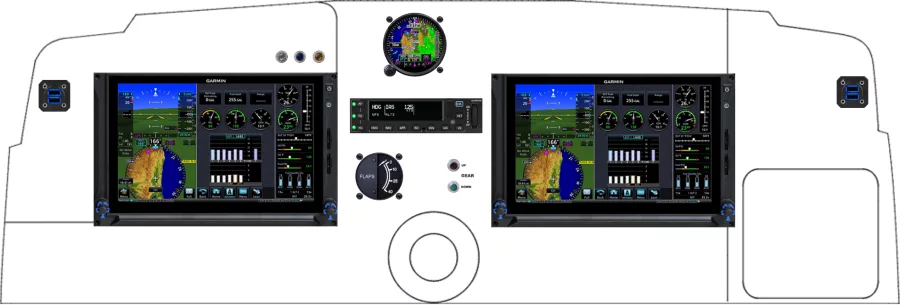

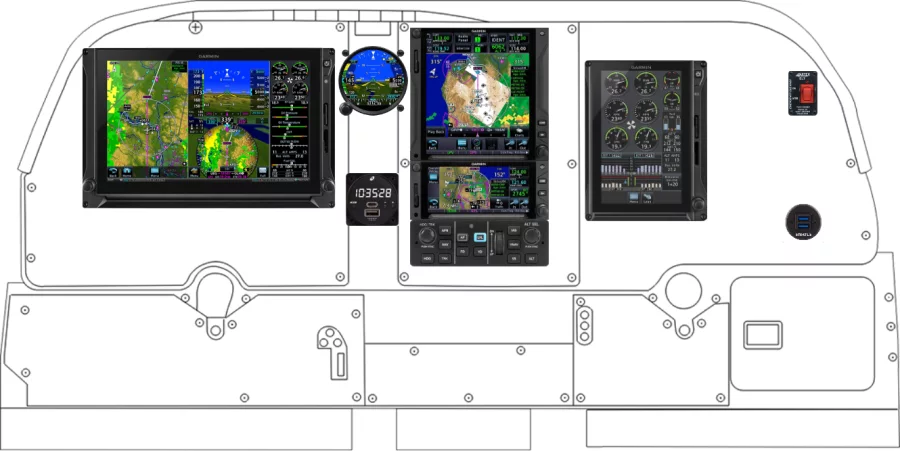

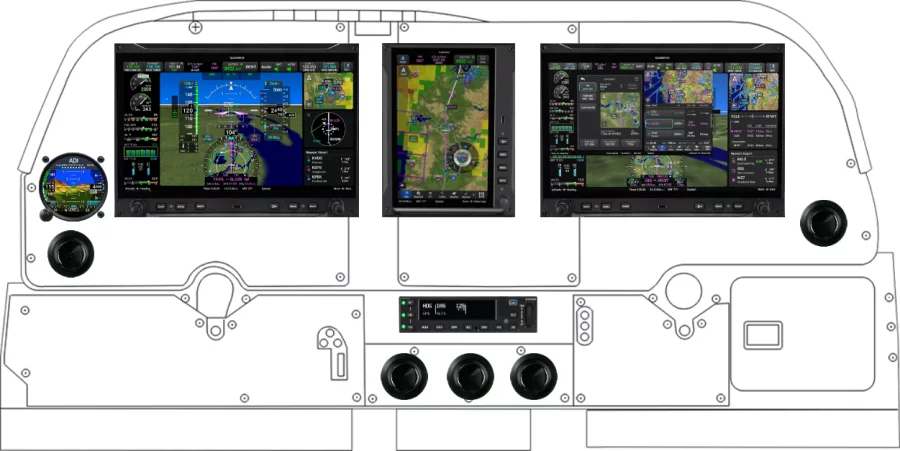

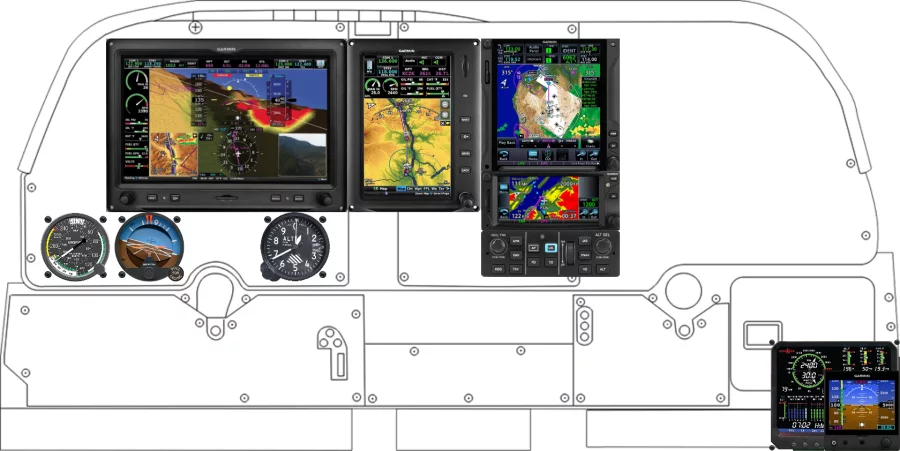

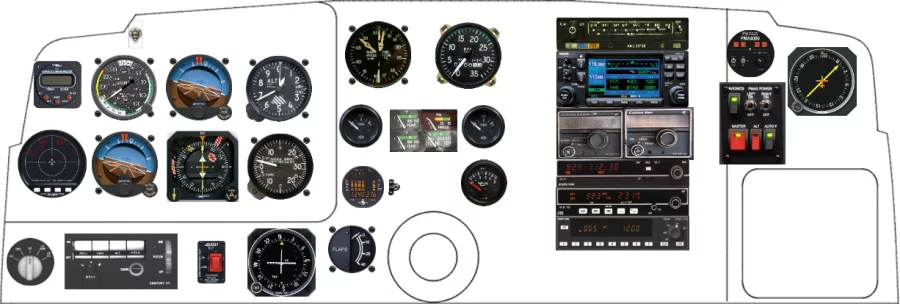

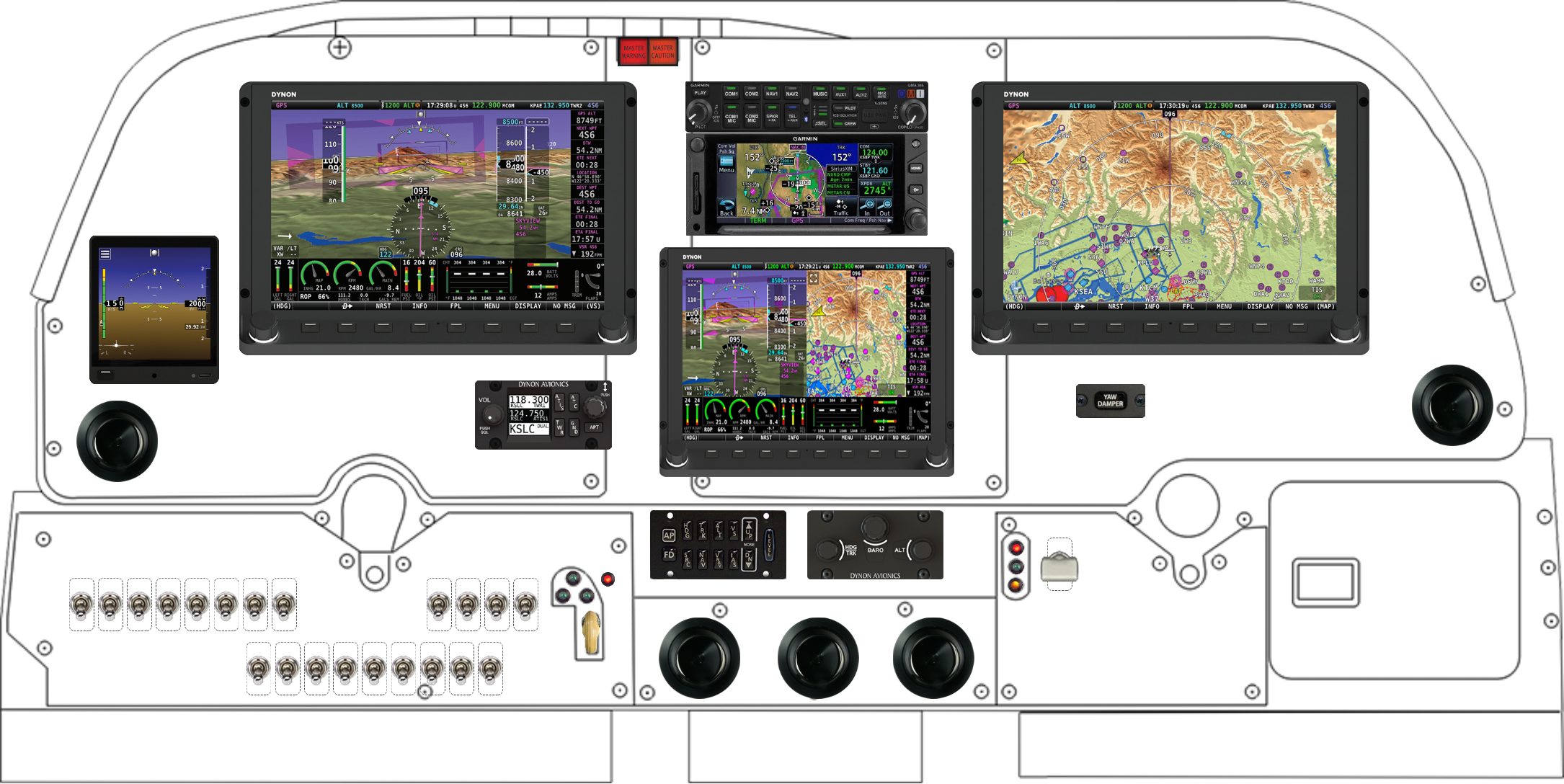

Recent A36 panel designs
Exported by builders from the Panel Designer, newest first.
A36 for sale
Selling an A36? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in an A36 panel
The equipment placed most often across the 207 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 79 | 38% |
| Garmin International, Inc GTN 750Xi | 68 | 33% |
| Garmin International, Inc G5 | 66 | 32% |
| Garmin International, Inc GI 275 ADI | 59 | 29% |
| Garmin International, Inc G3X Touch | 59 | 29% |
| Garmin International, Inc GTX 345 | 46 | 22% |
| Falcon Gauge Altimeter 3" | 46 | 22% |
| Falcon Gauge Airspeed Indicator 3" | 44 | 21% |
A36 panels by avionics system
Builders who laid out an A36 panel with each system.
Other Beechcraft panels
From layout to fabricated panel
Lay out the A36 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
