Beechcraft
Beechcraft Model 18 instrument panel

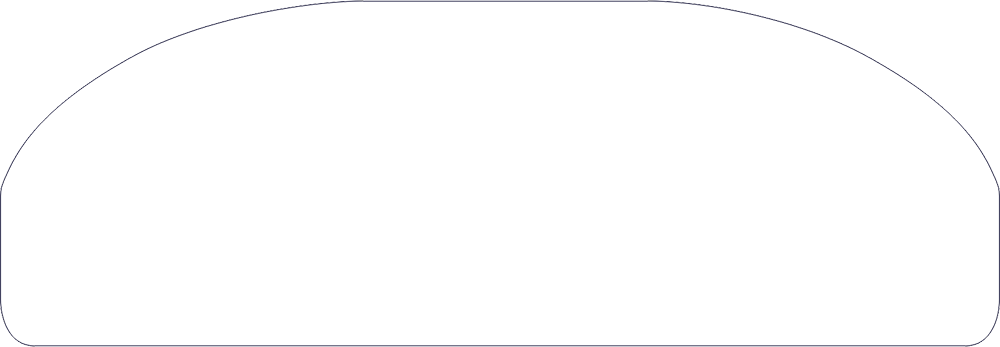

The Model 18 panel template at the panel's dimensions, 37.55 × 12.98 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
25 panels laid out on this template

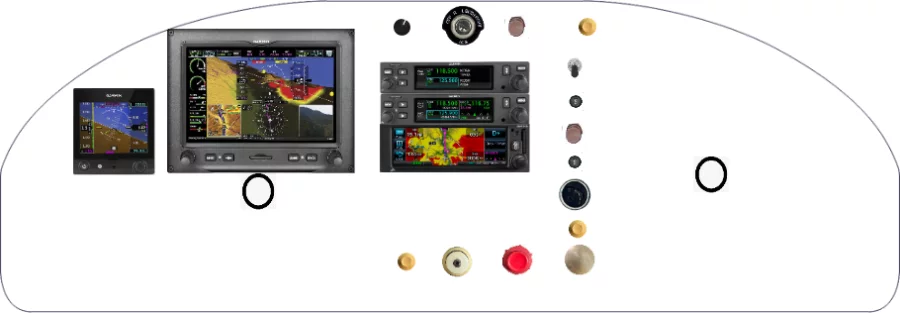

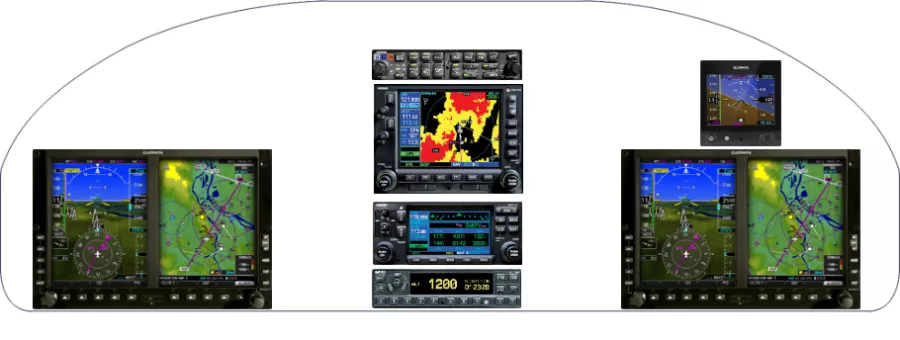

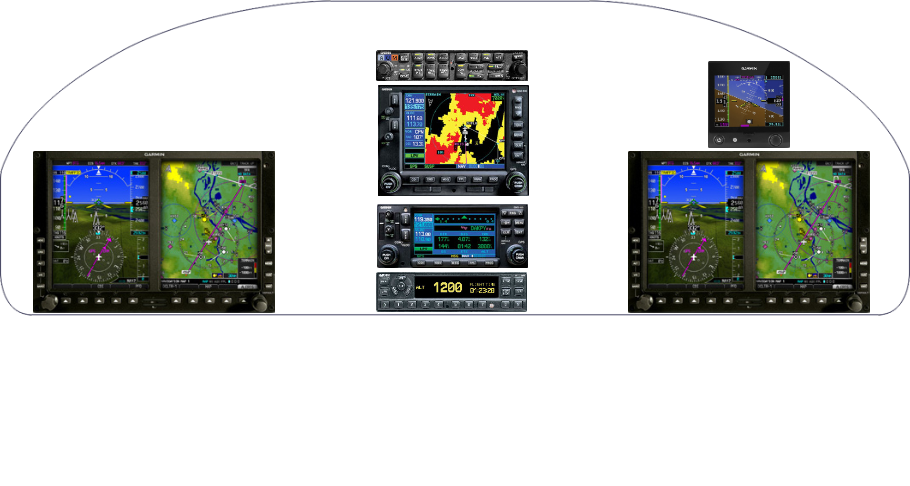

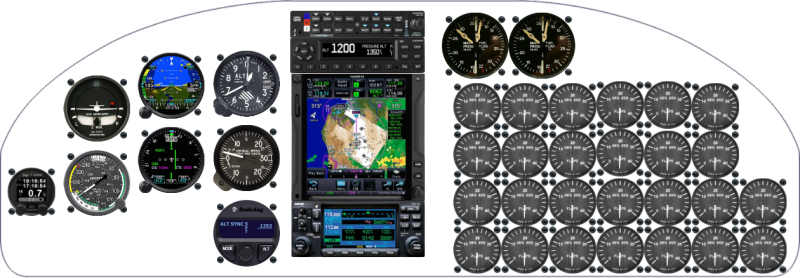

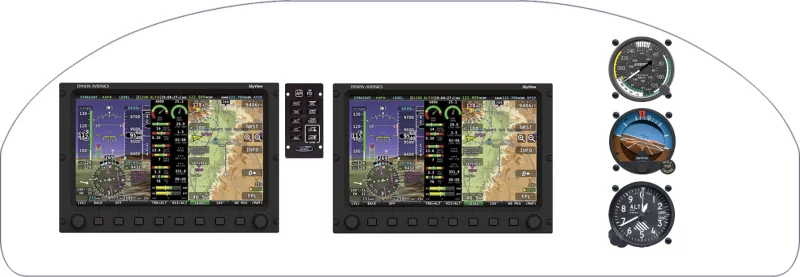

Recent Model 18 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Model 18 panel
The equipment placed most often across the 25 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 10 | 40% |
| Falcon Gauge Altimeter 3" | 10 | 40% |
| Falcon Gauge Airspeed Indicator 3" | 10 | 40% |
| Falcon Gauge Vertical Speed Indicator | 9 | 36% |
| Garmin International, Inc GFC 500 | 8 | 32% |
| Garmin International, Inc GI 275 EIS | 8 | 32% |
| Flight Data Systems Inc GT-50 | 7 | 28% |
| ACK Technologies ELT | 7 | 28% |
Other Beechcraft panels
From layout to fabricated panel
Lay out the Model 18 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
