Beechcraft Model 35 instrument panel
The Model 35 panel template at the panel's dimensions, 48.14 × 19.11 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
163 panels laid out on these 2 templates

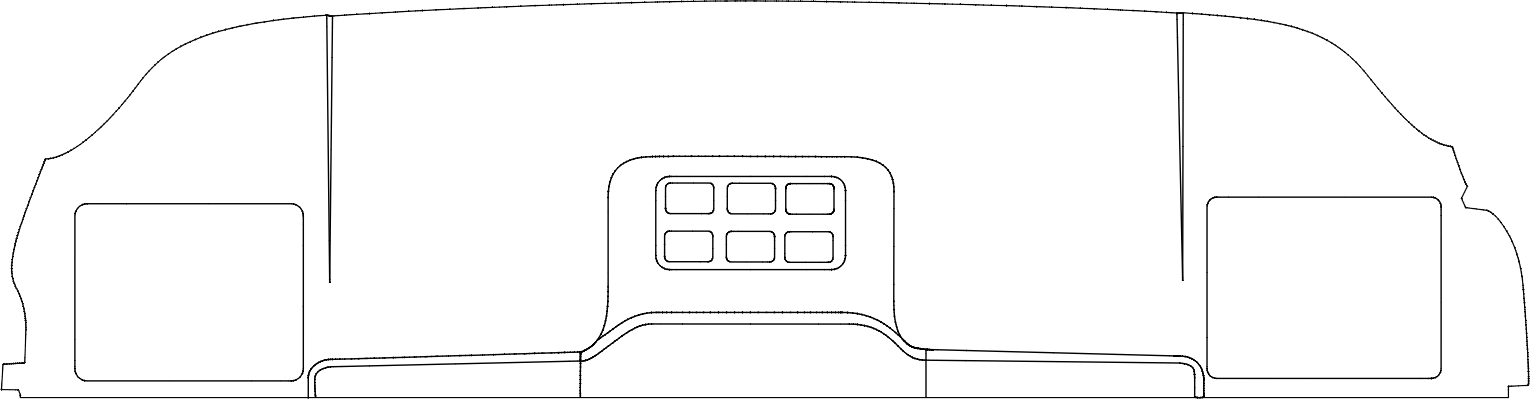

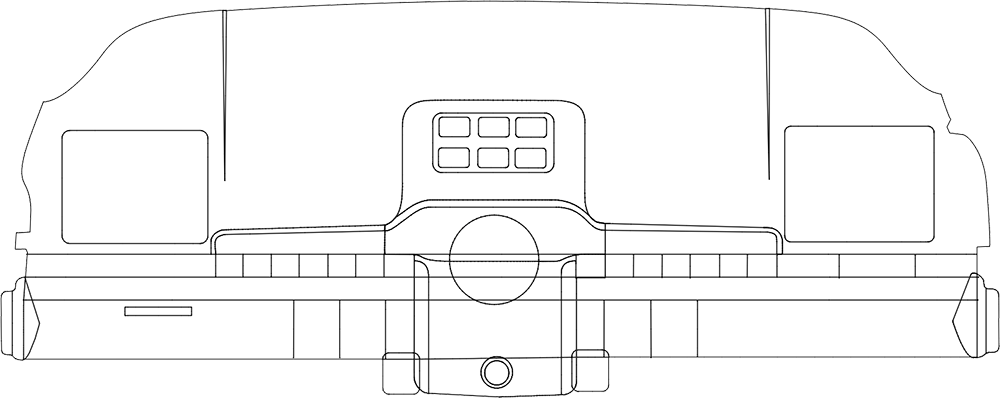

2 templates for the Model 35

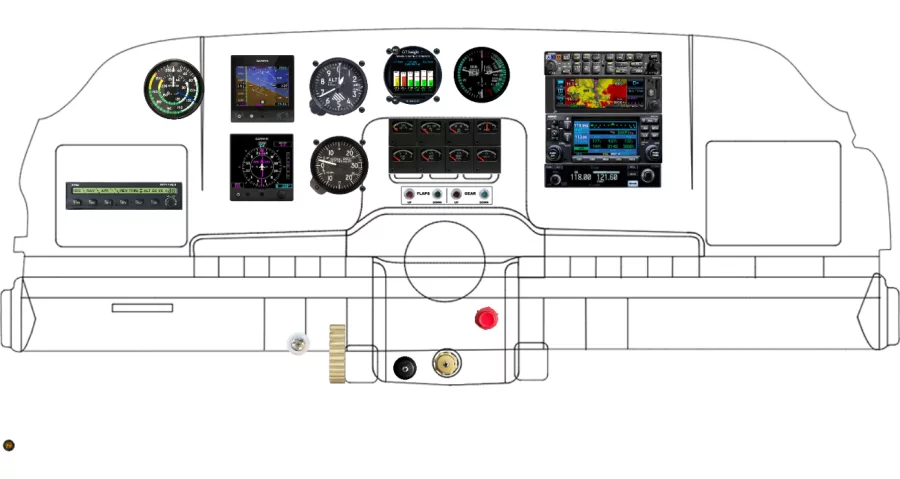

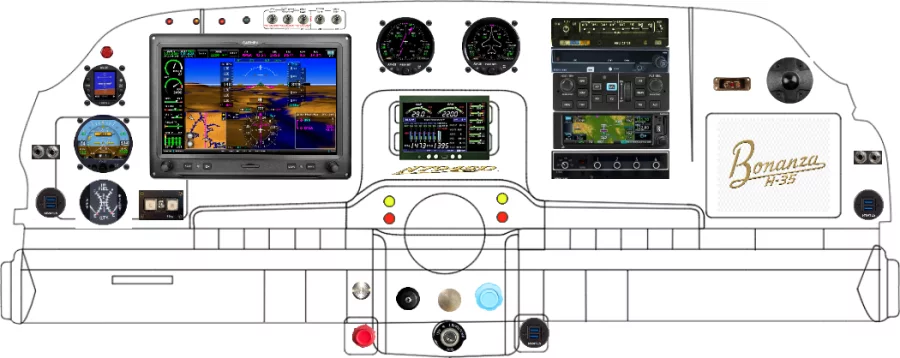

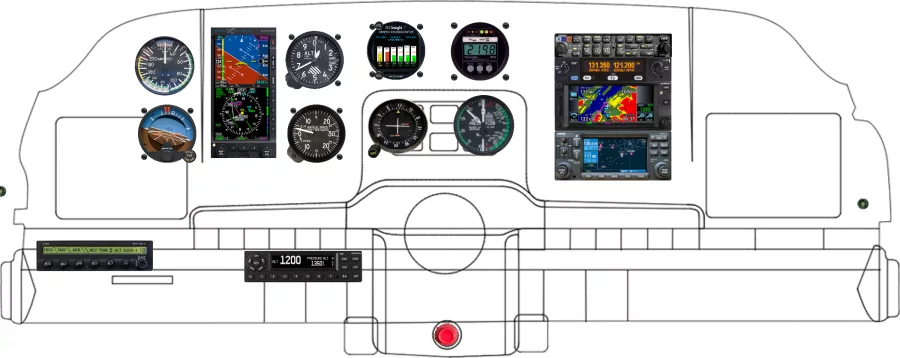

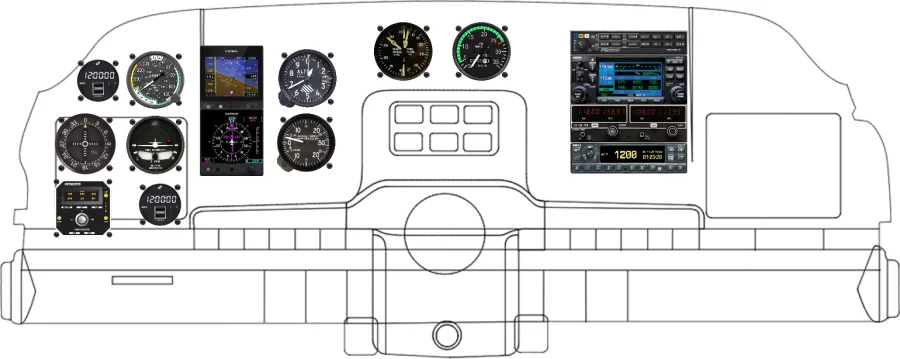

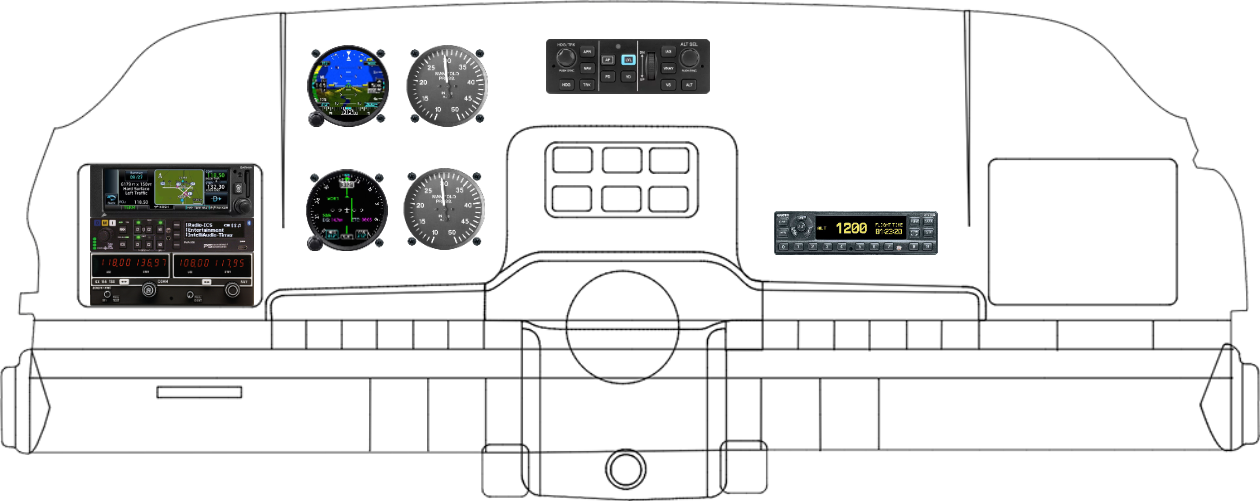

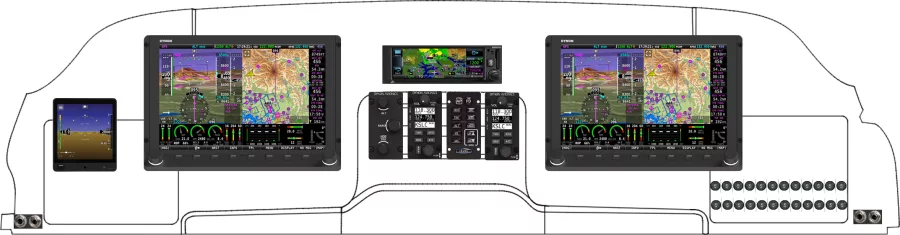

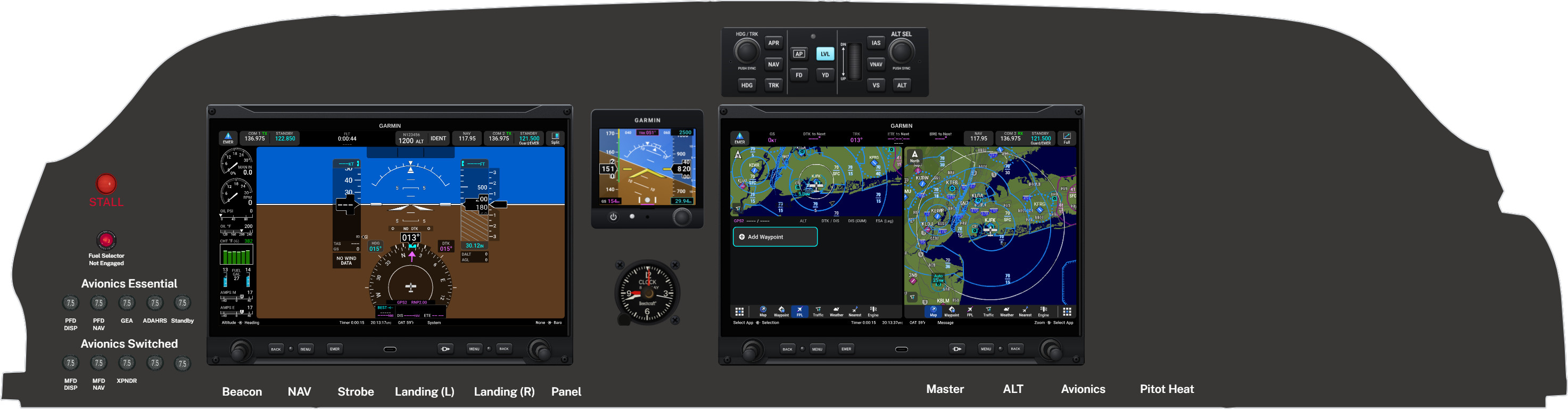

Recent Model 35 panel designs
Exported by builders from the Panel Designer, newest first.
Model 35 for sale
Selling a Model 35? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a Model 35 panel
The equipment placed most often across the 163 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 78 | 48% |
| Falcon Gauge Airspeed Indicator 3" | 75 | 46% |
| Garmin International, Inc G5 | 68 | 42% |
| Falcon Gauge Vertical Speed Indicator | 64 | 39% |
| Garmin International, Inc GFC 500 | 54 | 33% |
| Garmin International, Inc GMA 345 | 43 | 26% |
| Garmin International, Inc GI 275 ADI | 35 | 21% |
| Garmin International, Inc G3X Touch | 33 | 20% |
Model 35 panels by avionics system
Builders who laid out a Model 35 panel with each system.
Other Beechcraft panels
From layout to fabricated panel
Lay out the Model 35 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
