Beechcraft V35B instrument panel

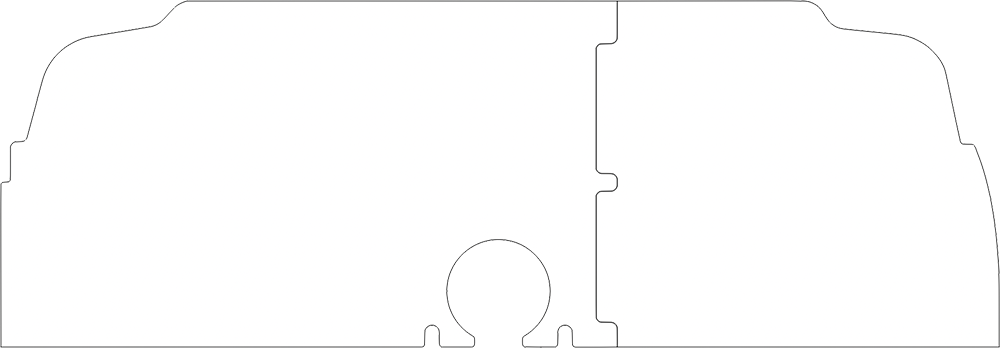

The V35B panel template at the panel's dimensions, 42.5 × 14.81 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
37 panels laid out on this template

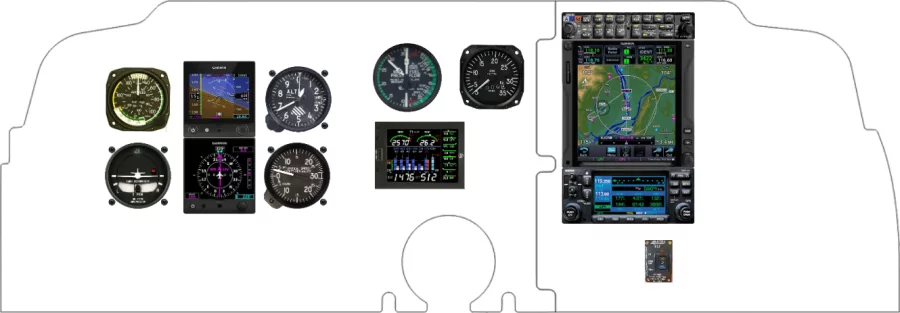

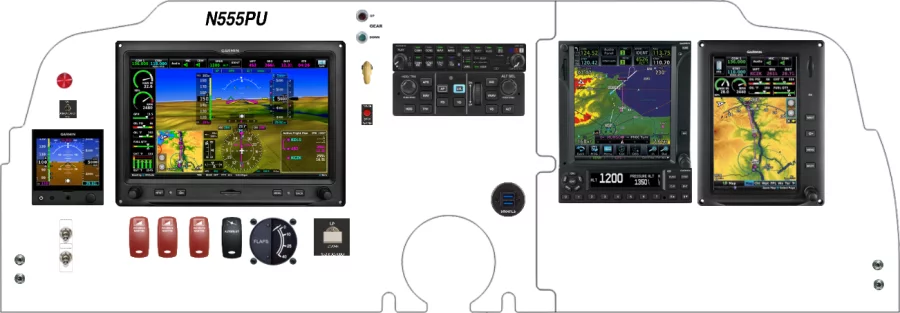

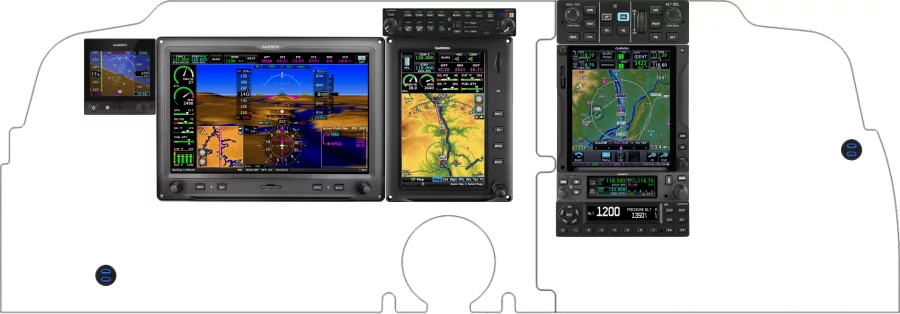

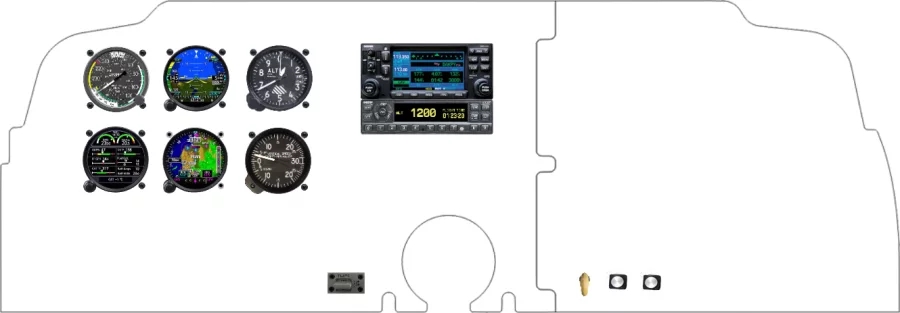

Recent V35B panel designs
Exported by builders from the Panel Designer, newest first.
V35B for sale
Selling a V35B? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a V35B panel
The equipment placed most often across the 37 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 19 | 51% |
| Garmin International, Inc G5 | 17 | 46% |
| Garmin International, Inc GTN 750Xi | 14 | 38% |
| Garmin International, Inc GTX 345 | 12 | 32% |
| Garmin International, Inc G3X Touch | 10 | 27% |
| Garmin International, Inc GMA 350 | 9 | 24% |
| UMA Instruments N092 Flap Position | 8 | 22% |
| Garmin International, Inc GSB 15 | 7 | 19% |
Other Beechcraft panels
From layout to fabricated panel
Lay out the V35B panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
