Beechcraft instrument panels

17 templates for 14 aircraft, 809 panels laid out. Each template is at the panel's real dimensions.

Beechcraft A36 · Bonanza instrument panel template
A36 · Bonanza157 designs
42.44 × 21.25 in
Beechcraft A36 · 1994 model (post 1984) instrument panel template
A36 · 1994 model (post 1984)50 designs
40.5 × 20.27 in
Beechcraft Model 35 · Bonanza instrument panel template
Model 35 · Bonanza94 designs
48.14 × 19.11 in
Beechcraft Model 35 · Bonanza instrument panel template
Model 35 · Bonanza69 designs
47.02 × 12.22 in
Beechcraft T-34 instrument panel template
T-3496 designs
26.5 × 13.25 in
Beechcraft Baron 55 instrument panel template
Baron 5585 designs
41.35 × 21.3 in
Beechcraft 35-B33 · Without Floating Panel instrument panel template
35-B33 · Without Floating Panel84 designs
42.44 × 22.83 in

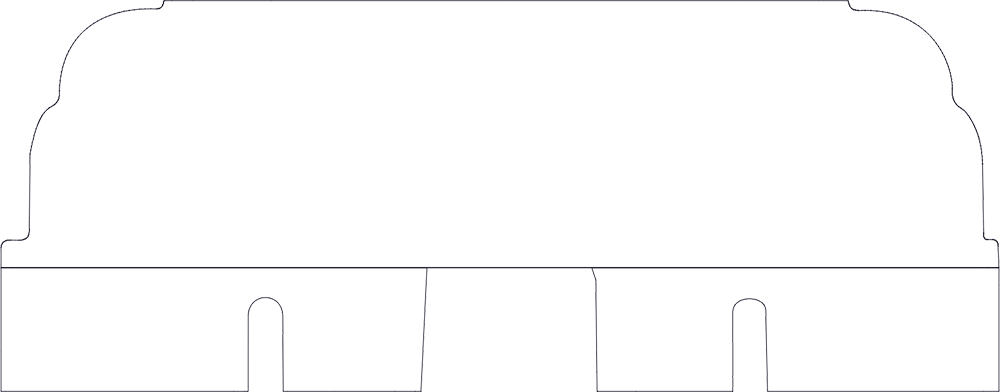

Beechcraft CE23 / CE24 / A23 · Sierra / Sundowner / Musketeer instrument panel template
CE23 / CE24 / A23 · Sierra / Sundowner / Musketeer66 designs
38.98 × 15.24 in
Beechcraft V35B · Bonanza instrument panel template
V35B · Bonanza37 designs
42.5 × 14.81 in
Beechcraft Model 18 instrument panel template
Model 1825 designs
37.55 × 12.98 in

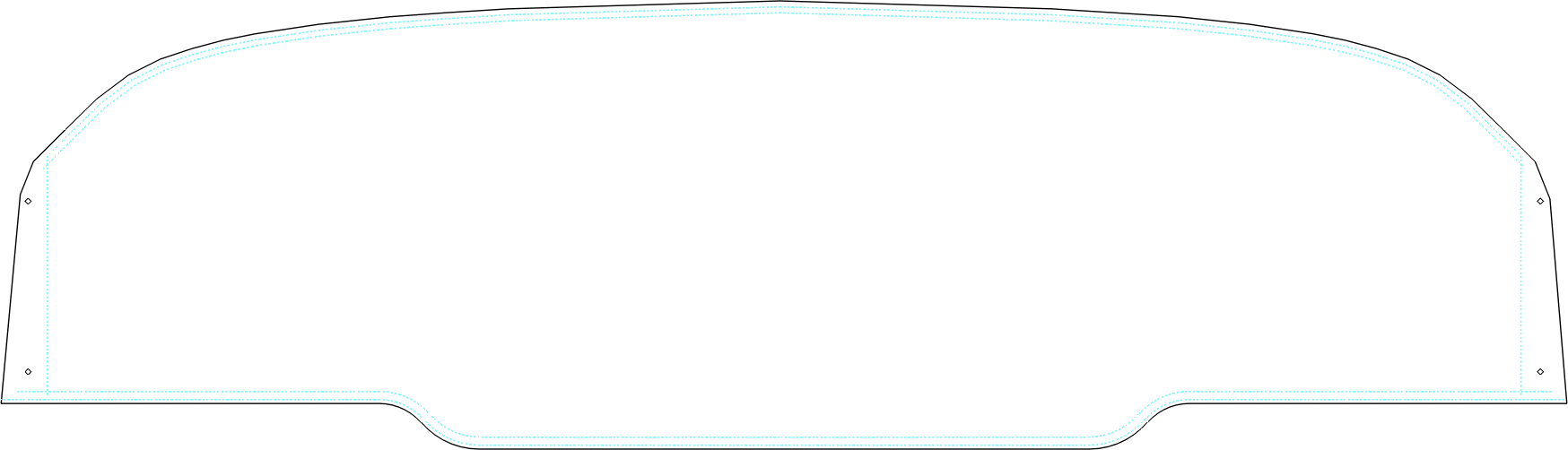

Beechcraft Beechcraft King Air 200 instrument panel template
Beechcraft King Air 20014 designs
49.31 × 12.69 in
Beechcraft BE95 Travel Air instrument panel template
BE95 Travel Air11 designs
41.75 × 20.87 in
Beechcraft B60 · Duke instrument panel template
B60 · Duke8 designs
41.03 × 18.93 in
Beechcraft BE65 / C90 · Queen Air instrument panel template
BE65 / C90 · Queen Air8 designs
49.31 × 14.13 in
Beechcraft Baron 58 · Drawn from the A36 panel, which it shares; the sections across the instrument panel are the Baron's instrument panel template
Baron 58 · Drawn from the A36 panel, which it shares; the sections across the instrument panel are the Baron's3 designs
40.5 × 20.29 in
Beechcraft Beechcraft Model 77 Skipper instrument panel template
Beechcraft Model 77 Skipper2 designs
42.07 × 16.49 in
Beechcraft Beechcraft Model 77 Skipper instrument panel template
Beechcraft Model 77 Skipper0 designs
42.07 × 16.49 in
