Beechcraft BE65 / C90 instrument panel

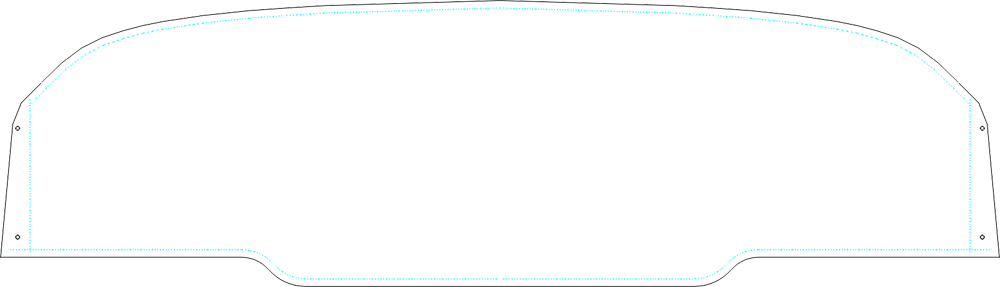

The BE65 / C90 panel template at the panel's dimensions, 49.31 × 14.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
10 panels laid out on this template

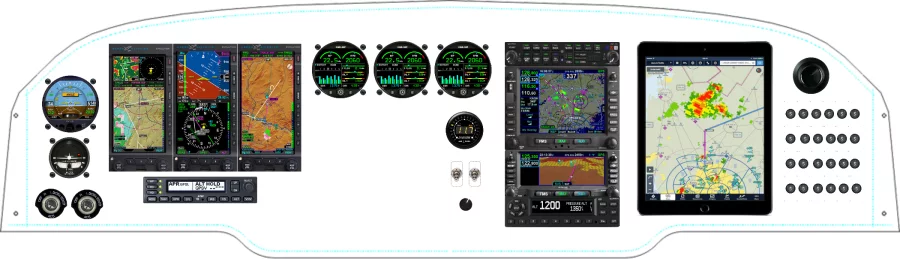

Recent BE65 / C90 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a BE65 / C90 panel
The equipment placed most often across the 10 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 600 | 5 | 50% |
| Garmin International, Inc GI 275 ADI | 5 | 50% |
| Garmin International, Inc GTN 750 | 5 | 50% |
| Garmin International, Inc GTN 650 | 4 | 40% |
| Garmin International, Inc GTX 345 | 4 | 40% |
| Garmin International, Inc G600 TXi GDU 1060L | 4 | 40% |
| Garmin International, Inc GI 275 HSI | 3 | 30% |
| Garmin International, Inc GMA 340 | 2 | 20% |
Other Beechcraft panels
From layout to fabricated panel
Lay out the BE65 / C90 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
