Beechcraft T-34 instrument panel

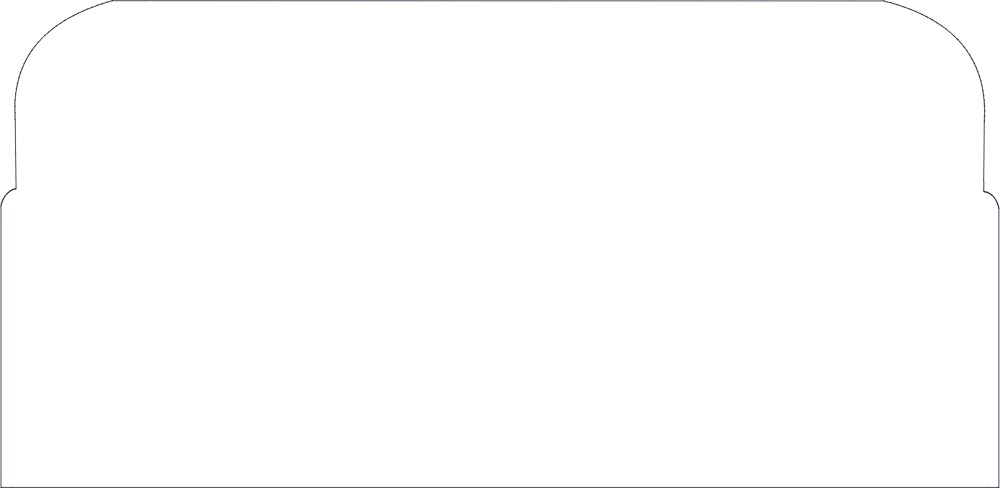

The T-34 panel template at the panel's dimensions, 26.5 × 13.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
96 panels laid out on this template
Also written T34 or T 34.

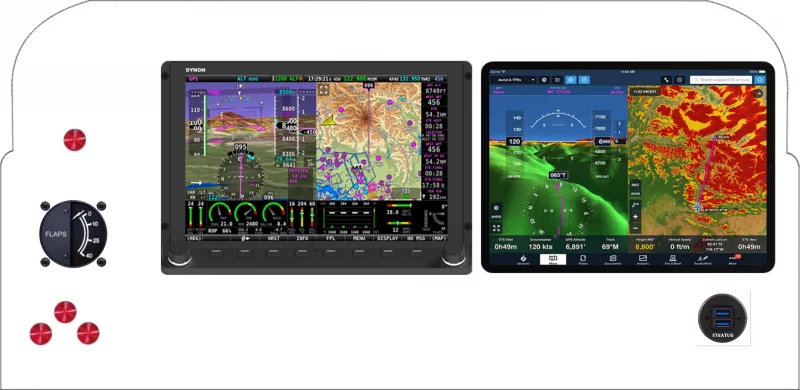

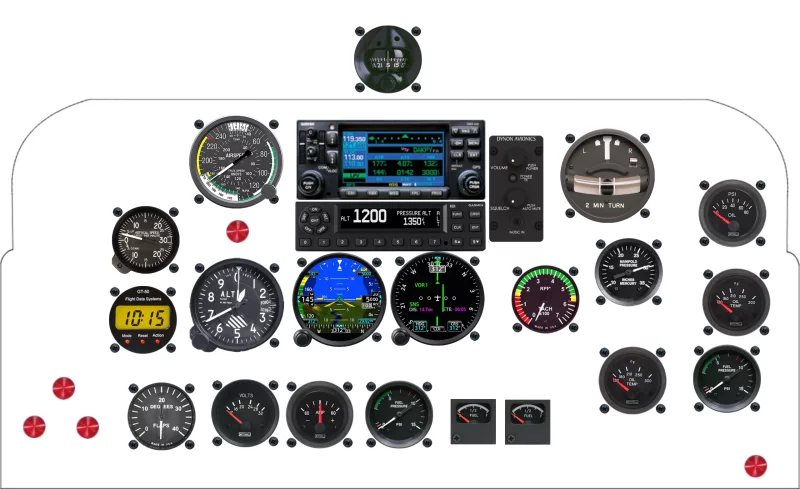

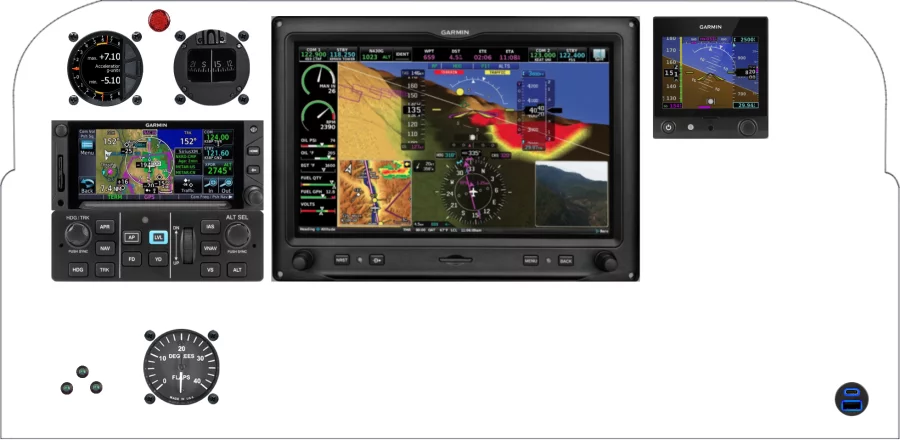

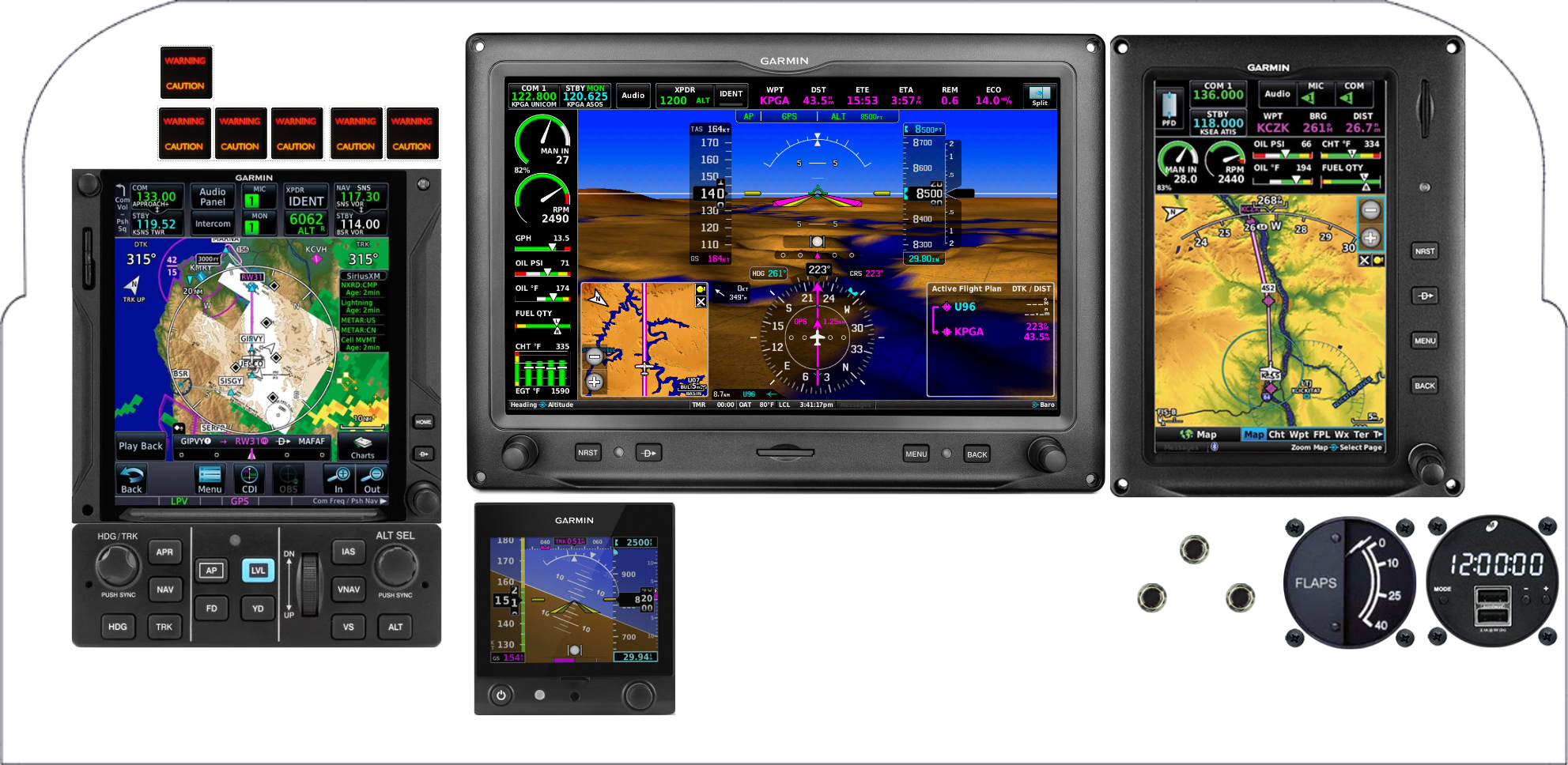

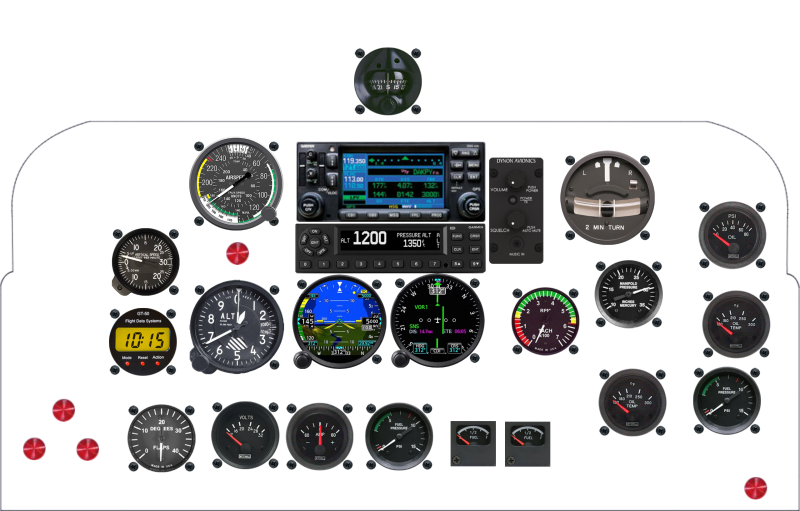

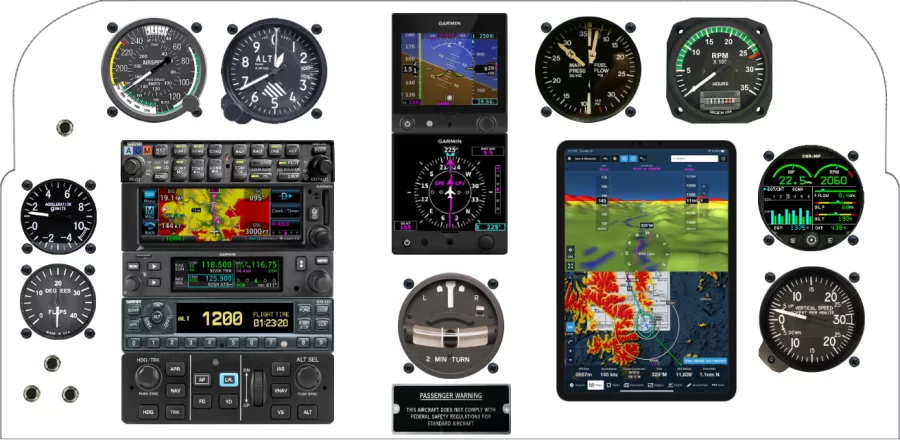

Recent T-34 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a T-34 panel
The equipment placed most often across the 96 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| UMA Instruments N092 Flap Position | 57 | 59% |
| Garmin International, Inc G5 | 51 | 53% |
| Garmin International, Inc G3X Touch | 41 | 43% |
| Bendix King KX 165 | 28 | 29% |
| Garmin International, Inc Aera 760 | 27 | 28% |
| Garmin International, Inc GFC 500 | 25 | 26% |
| Falcon Gauge Airspeed Indicator 3" | 24 | 25% |
| Falcon Gauge Altimeter 3" | 24 | 25% |
Other Beechcraft panels
From layout to fabricated panel
Lay out the T-34 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
