Beechcraft Baron 55 instrument panel

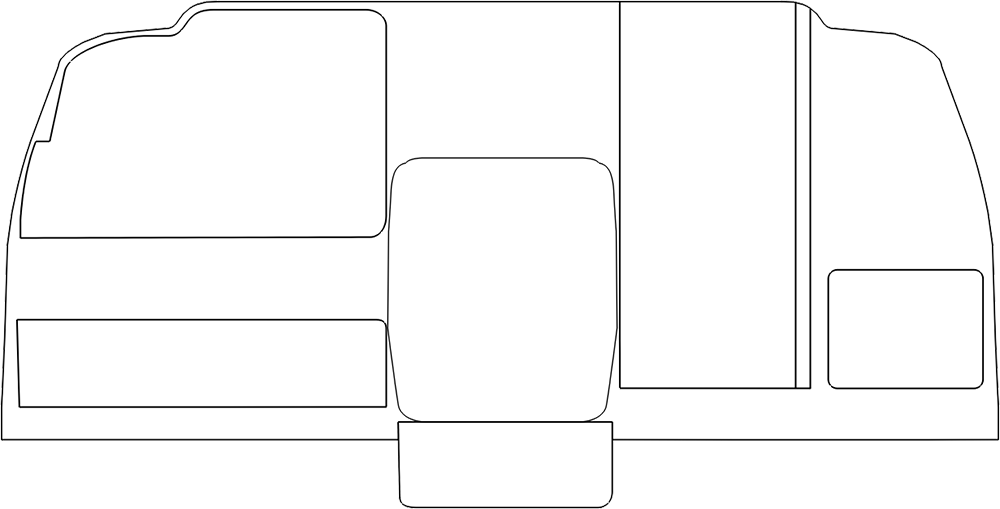

The Baron 55 panel template at the panel's dimensions, 41.35 × 21.3 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
85 panels laid out on this template

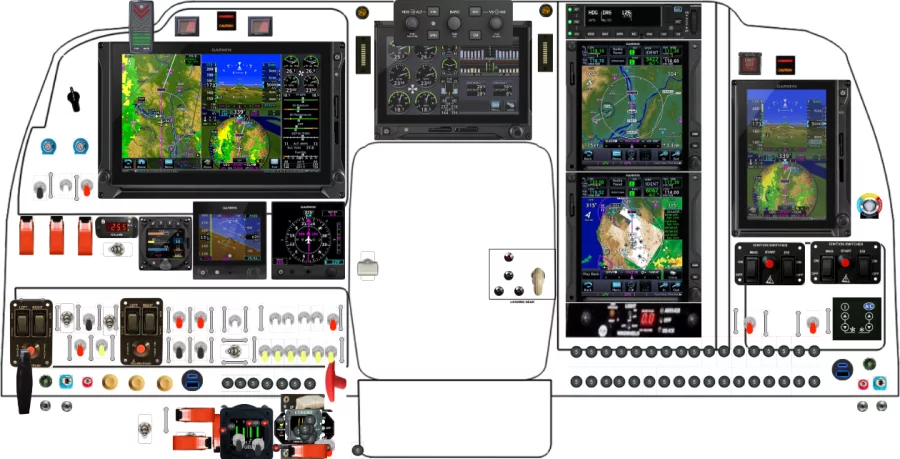

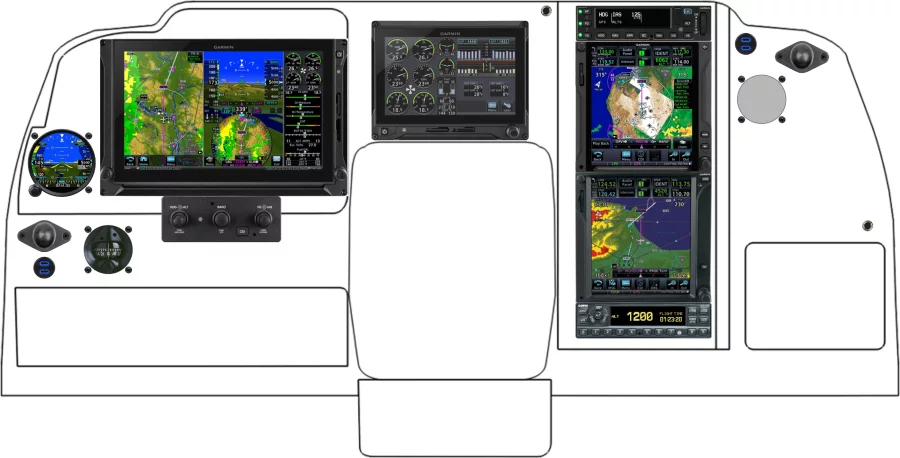

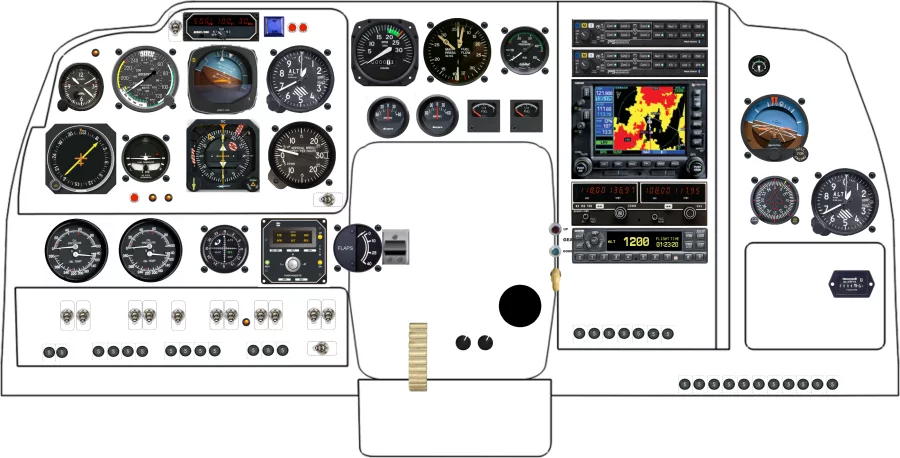

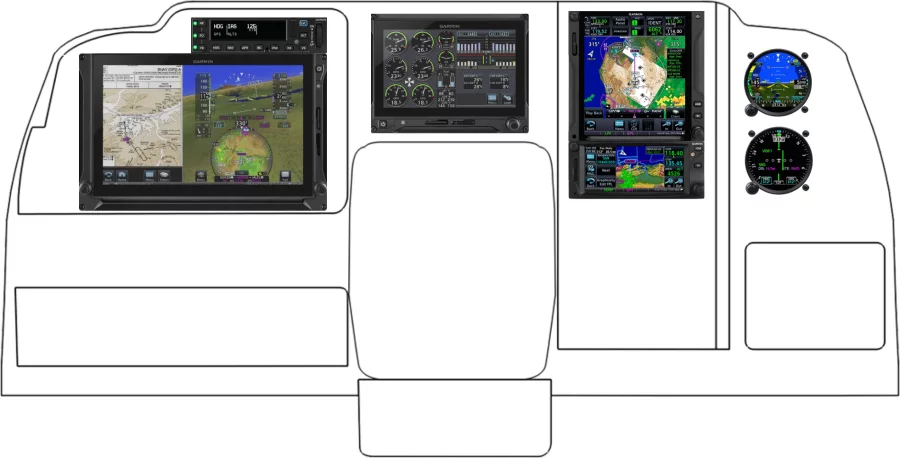

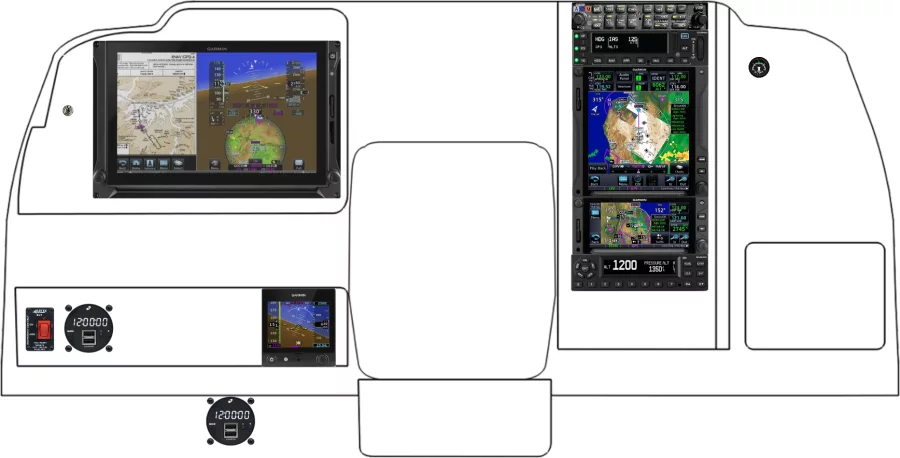

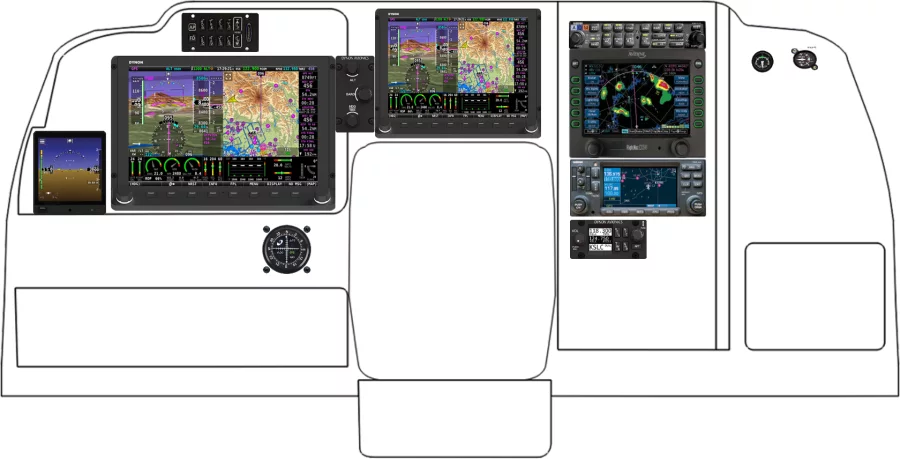

Recent Baron 55 panel designs
Exported by builders from the Panel Designer, newest first.
Baron 55 for sale
Selling a Baron 55? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a Baron 55 panel
The equipment placed most often across the 85 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 600 | 33 | 39% |
| Garmin International, Inc GTN 750Xi | 32 | 38% |
| Garmin International, Inc GI 275 ADI | 27 | 32% |
| Garmin International, Inc G600 TXi GDU 700L | 22 | 26% |
| Garmin International, Inc GTX 345 | 17 | 20% |
| Garmin International, Inc GTN 650Xi | 16 | 19% |
| Garmin International, Inc G5 | 16 | 19% |
| Falcon Gauge Altimeter 3" | 14 | 16% |
Baron 55 panels by avionics system
Builders who laid out a Baron 55 panel with each system.
Other Beechcraft panels
From layout to fabricated panel
Lay out the Baron 55 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
