Beechcraft CE23 / CE24 / A23 instrument panel
The CE23 / CE24 / A23 panel template at the panel's dimensions, 38.98 × 15.24 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
66 panels laid out on this template

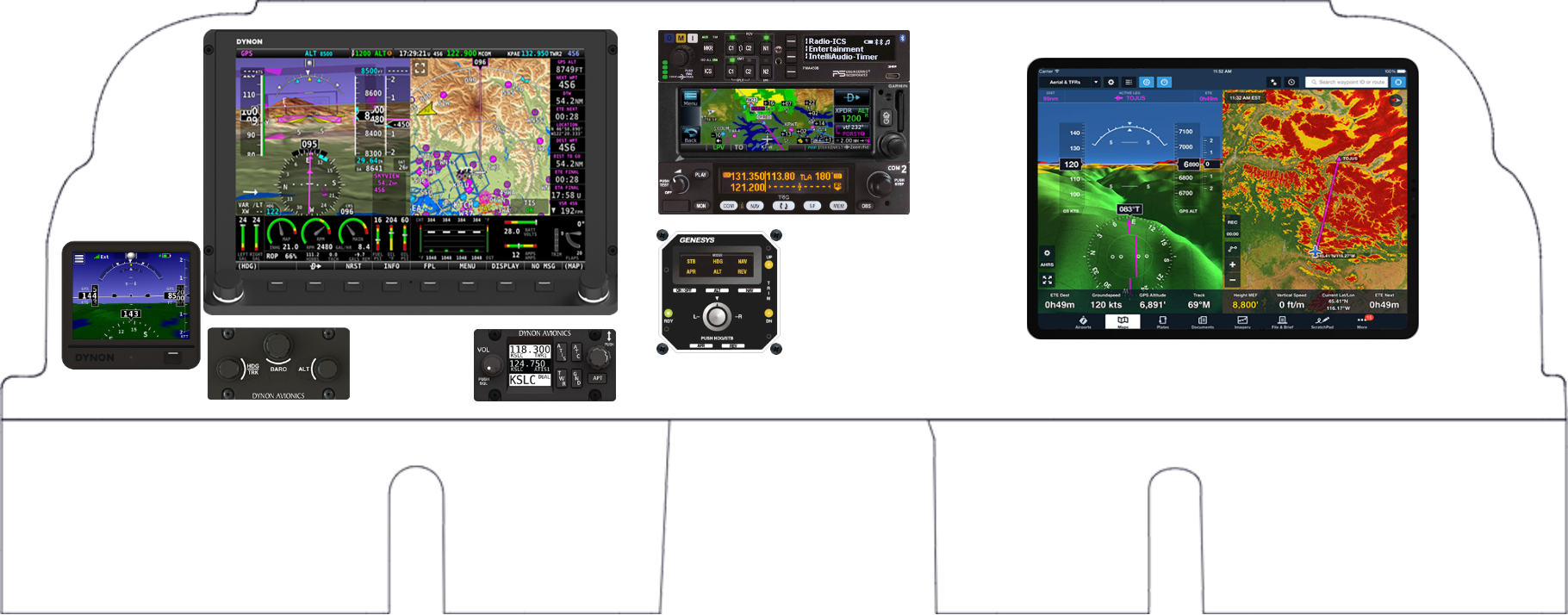

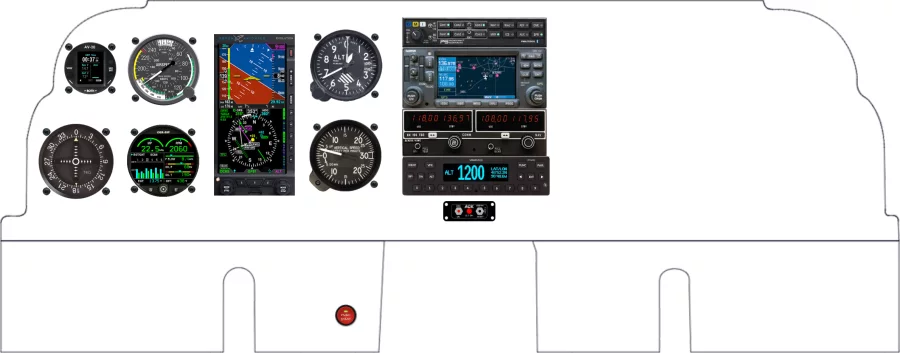

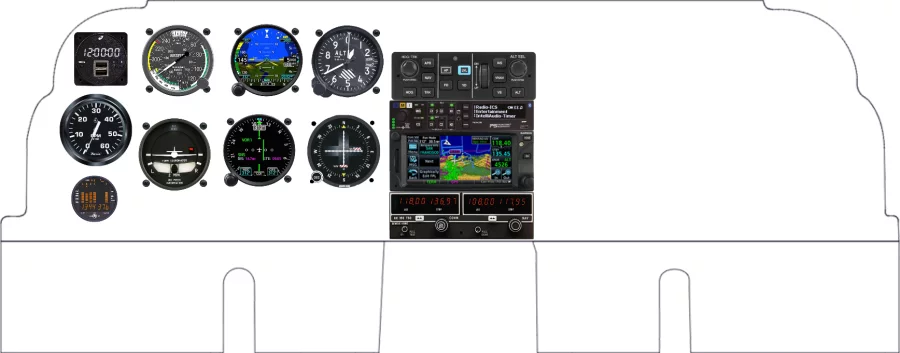

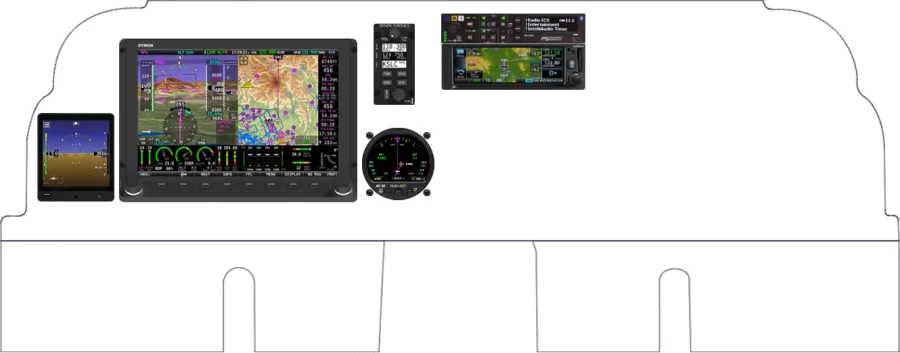

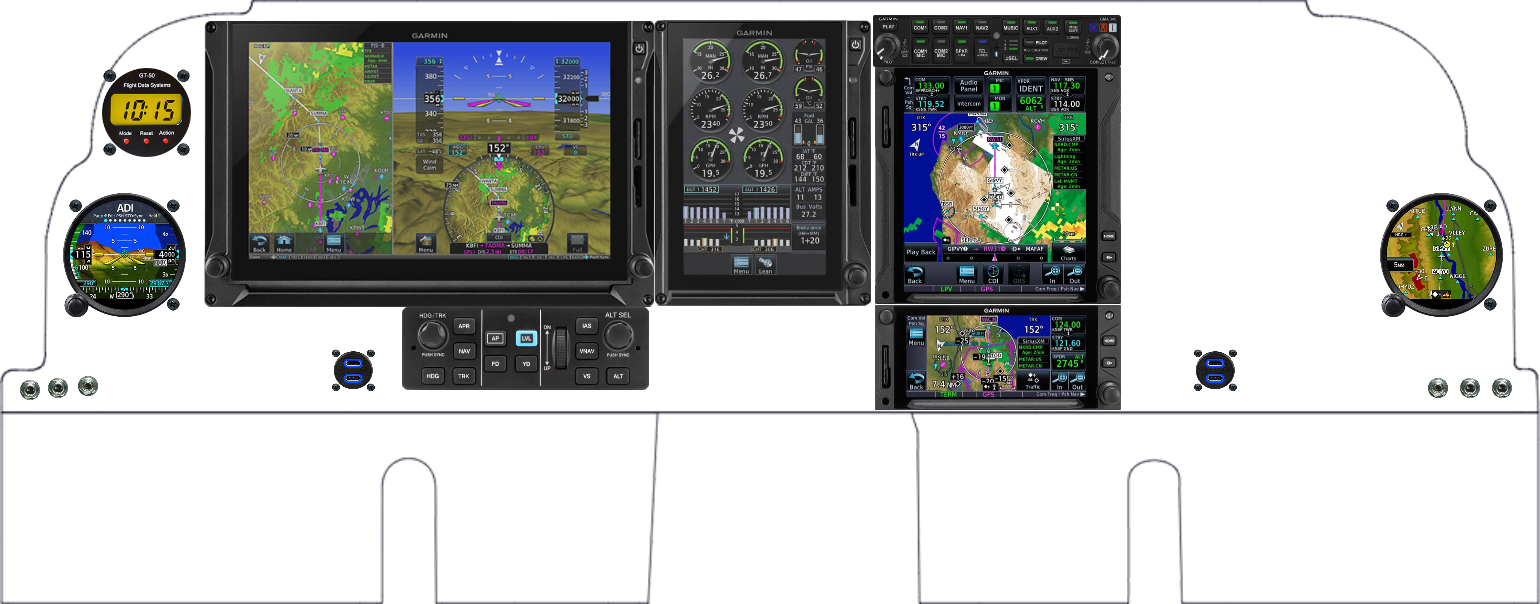

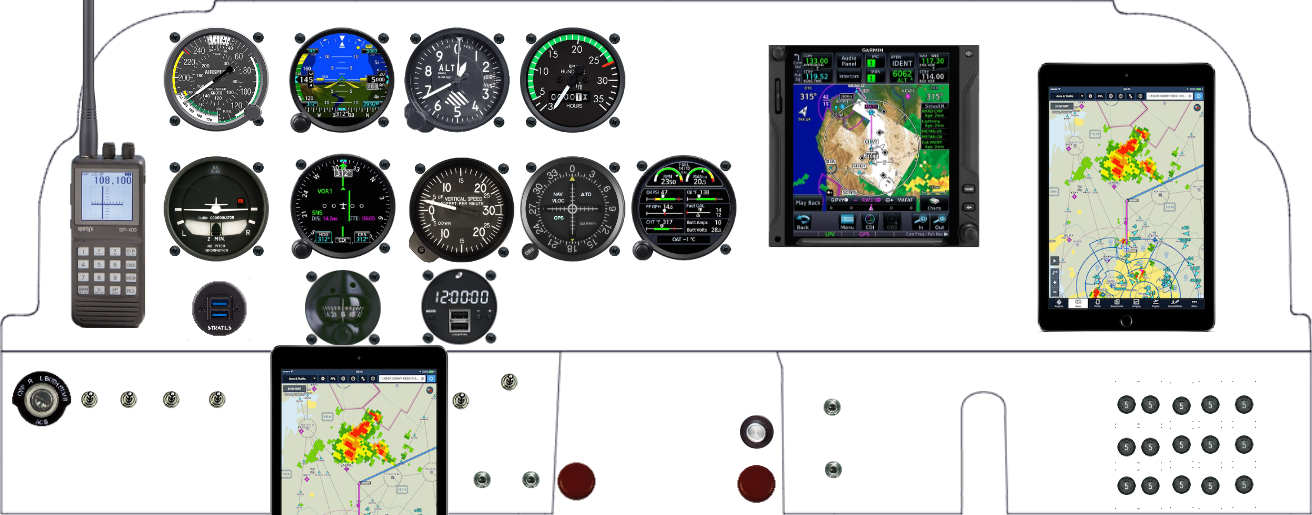

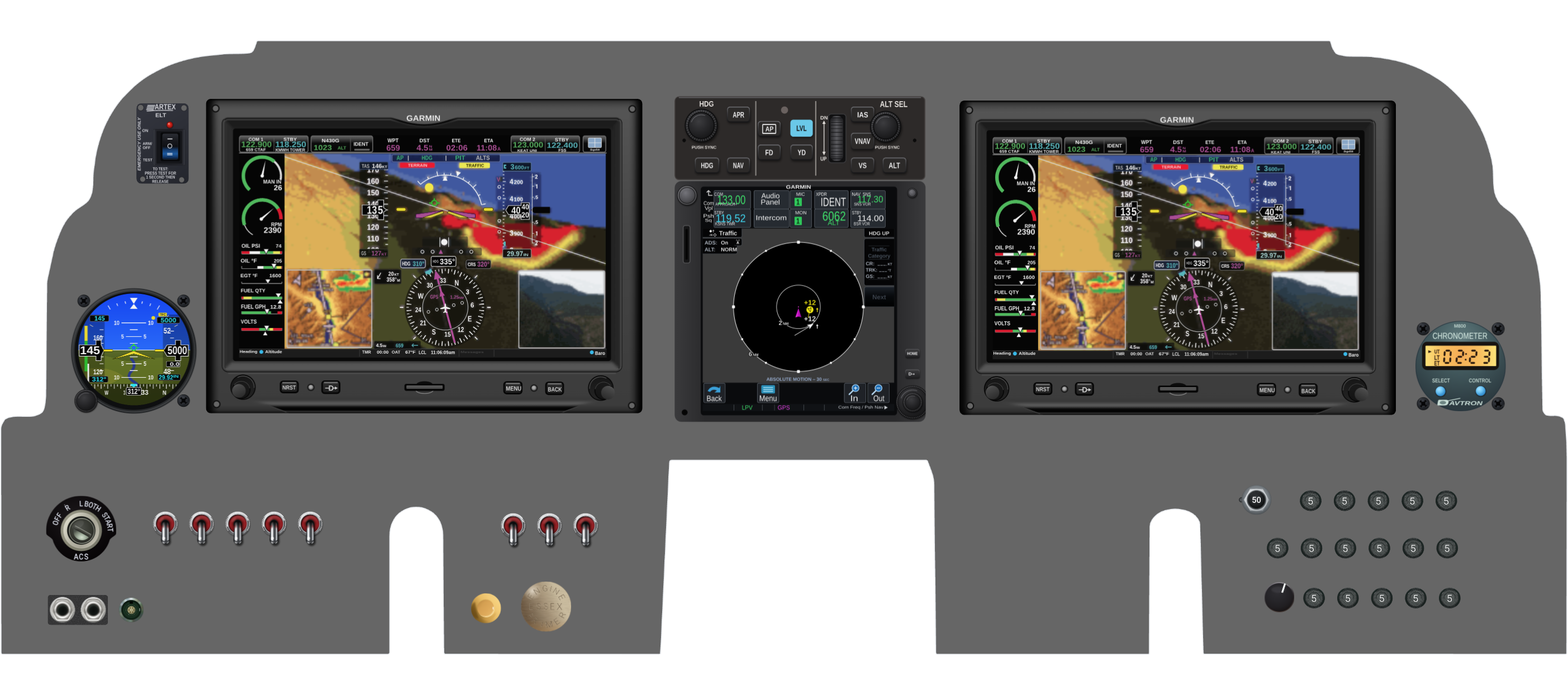

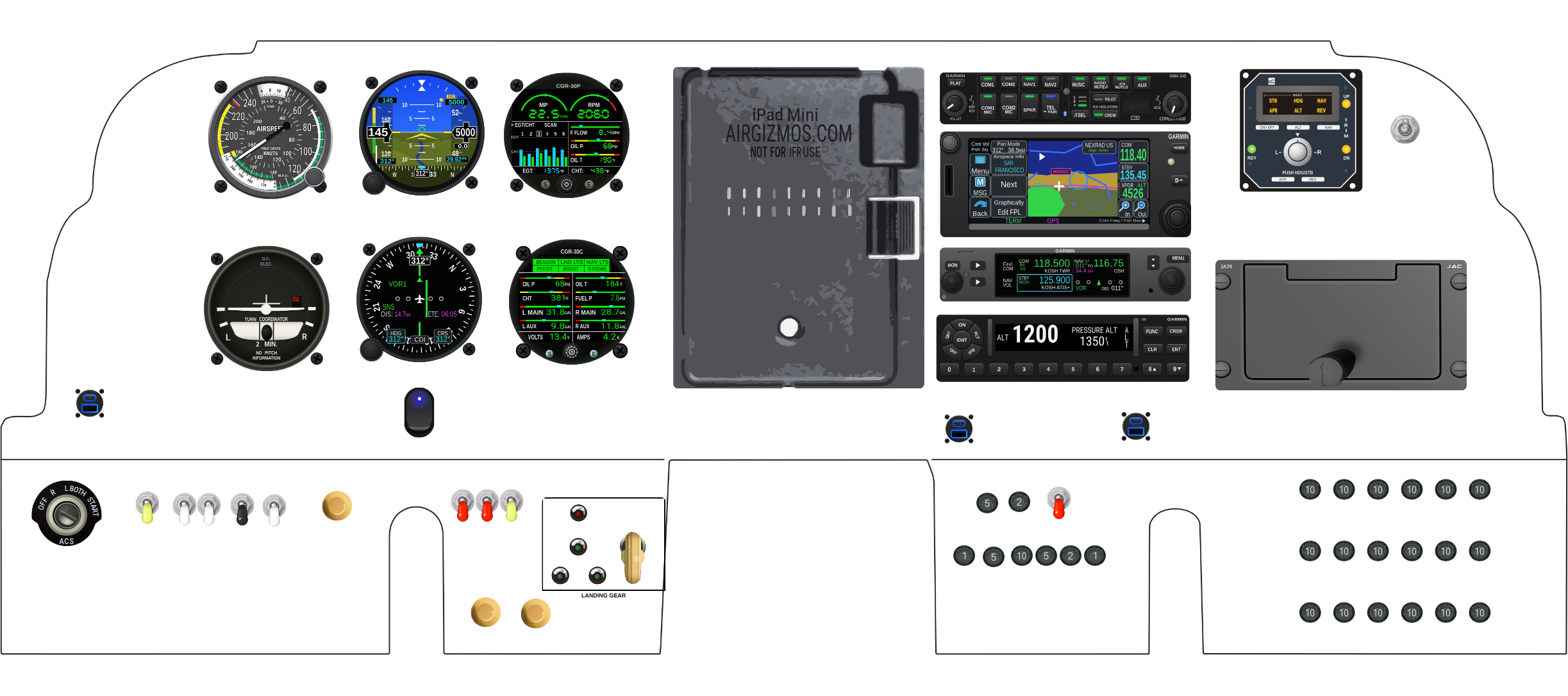

Recent CE23 / CE24 / A23 panel designs
Exported by builders from the Panel Designer, newest first.
CE23 / CE24 / A23 for sale
Selling a CE23 / CE24 / A23? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a CE23 / CE24 / A23 panel
The equipment placed most often across the 66 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 23 | 35% |
| Garmin International, Inc GFC 500 | 21 | 32% |
| Garmin International, Inc GI 275 ADI | 20 | 30% |
| Falcon Gauge Altimeter 3" | 18 | 27% |
| Falcon Gauge Airspeed Indicator 3" | 18 | 27% |
| Garmin International, Inc GSB 15 | 17 | 26% |
| Garmin International, Inc G3X Touch | 17 | 26% |
| Garmin International, Inc GI 275 HSI | 17 | 26% |
